To install a 4SFF drive backplane:
1. Power off the server. For more information, see "Powering off the server."
2. Remove the
security bezel, if any. For more information, see "Replacing the security bezel."
3. Remove the compute module. For more information, see "Removing a compute module."
4. Remove the compute module access panel. For more information, see "Replacing a compute
module a
ccess panel."
5. Remove the air baffles that might hinder the installation in the compute module. For more
information, see "Replacing air baffles in a compute module."
6. Install the drive backplane. Place the backplane against the slot and fasten the captive screw
on the backplane, as shown in Figure 6-39.

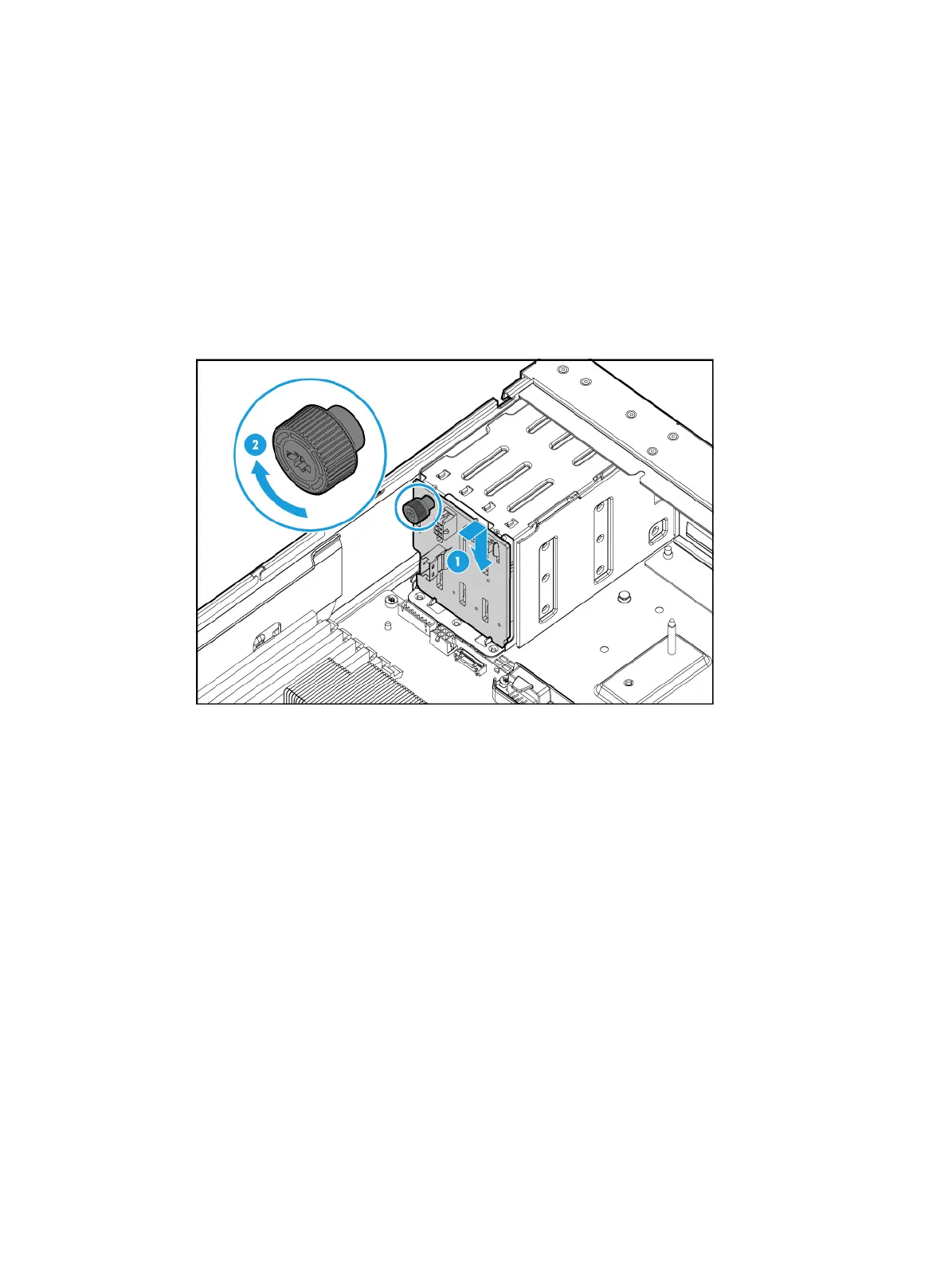

Figure 6-39
Installing the 4SFF drive backplane
7. Connect cables to the drive backplane. For more information, see "Connecting drive cables in
compute modules."
8. Install the removed air baffles. For more information, see "Replacing air baffles in a compute
module."
9. Install the compute module access panel. For more information, see "Replacing a compute
module a
ccess panel."
10. Install drives. For more information, see "Installing SAS/SATA drives."
11. Install the co
mpute module. For more information, see "Installing a compute module."
12. Install the removed security bezel. For more information, see "Installing the security bezel."
13. Connect the power cord. For more information, see "Connecting the power cord."
14. Powe
r on the server. For more information, see "Powering on the server."
Installing a diagnostic panel
Guidelines
You can install a diagnostic panel in compute module 1.
Install the diagnostic panel in the last drive bay of drive cage bay 1 if drive cage bay 2 is not installed
with a drive backplane. In any other conditions, install the diagnostic panel in the last drive bay of
drive cage bay 2. For more information about the locations, see "Front panel view of a compute
module."
