6-17
b. Install the riser card to the server. As shown in Figure 6-21, gently push the riser card into
the bay until you cannot push it further, and then close the ejector lever to secure the riser
card.

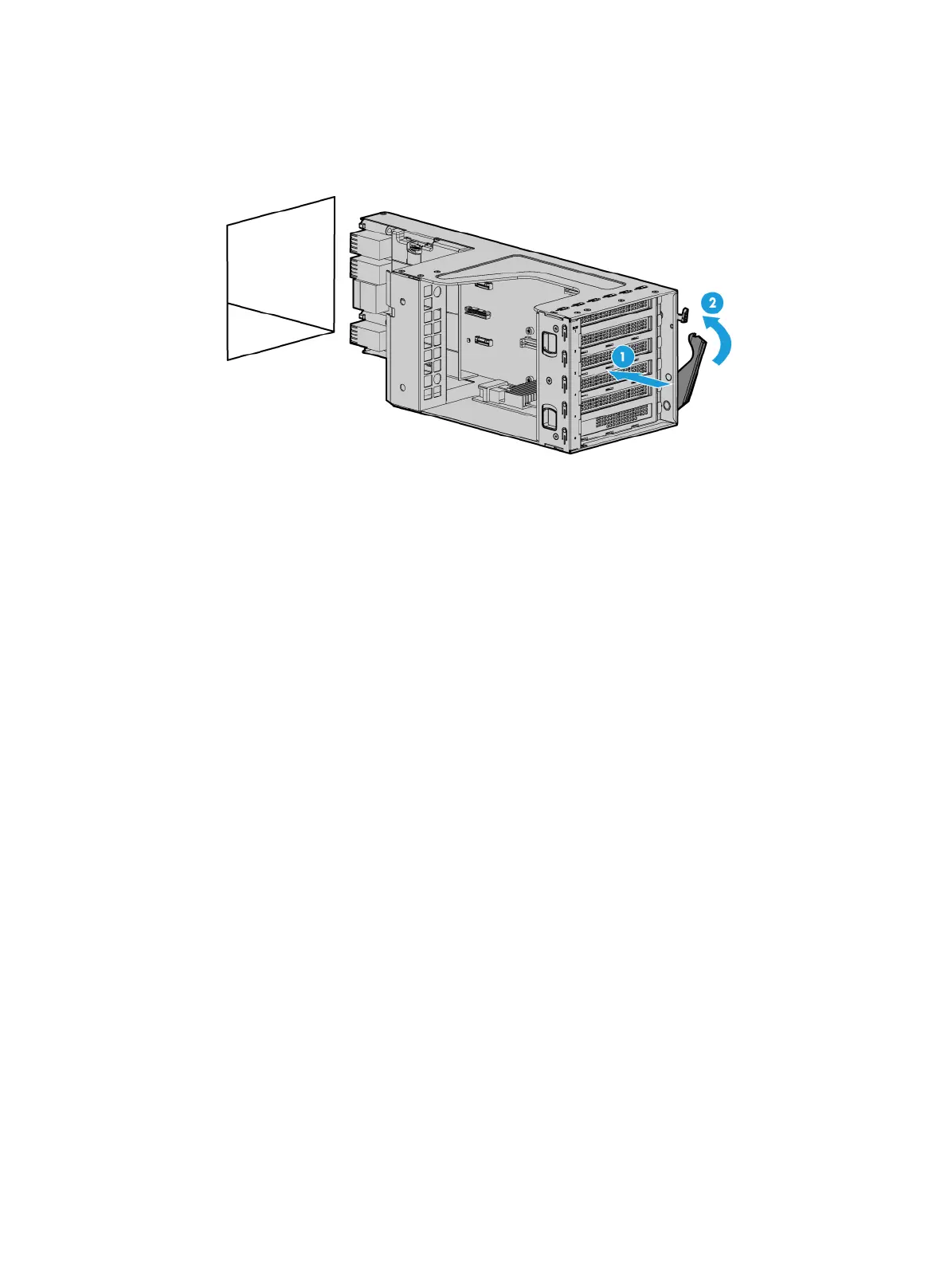

Figure 6-21 Installing the riser card to the server
5. Connect PCIe module cables, if any.
6. Connect the power cord. For more information, see "Connecting the power cord."
7. Powe
r on the server. For more information, see "Powering on the server."
Verifying the installation
Log in to HDM to verify that the PCIe module on the riser card is operating correctly. For more
information, see HDM online help.
Installing storage controllers and power fail
safeguard modules
A power fail safeguard module provides a flash card and a supercapacitor. When a system power
failure occurs, this supercapacitor can provide power for a minimum of 20 seconds. During this
interval, the storage controller transfers data from DDR memory to the flash card, where the data
remains indefinitely or until the controller retrieves the data.
Guidelines
Make sure the power fail safeguard module is compatible with its connected storage controller. For
the compatibility matrix, see "Storage controllers."
The supercapacitor might have a low charge after the power fail safeguard module is installed or
after the server is powered on. If the system displays that the supercapacitor has low charge, no
action is required. The system will charge the supercapacitor automatically.
Install storage controllers only in PCIe slots on riser card 1.
You cannot install the HBA-H460-B1 or RAID-P460-B4 storage controller on a server installed with
one of the following storage controllers:
• HBA-LSI-9300-8i-A1-X.
• HBA-LSI-9311-8i.
• HBA-LSI-9440-8i.
• RAID-LSI-9361-8i(1G)-A1-X.
• RAID-LSI-9361-8i(2G)-1-X.
• RAID-LSI-9460-8i(2G).
