• RAID-LSI-9460-8i(4G).
• RAID-LSI-9460-16i(4G).
Procedure
The procedure is the same for installing storage controllers of different models. This section uses the
RAID-LSI-9361-8i(1G)-A1-X storage controller as an example.
To install a storage controller:
1. Power off the server. For more information, see "Powering off the server."
2. Disco
nnect external cables from the rear riser card if the cables hinder storage controller
installation.
3. Remove riser card 1. For more information, see "Replacing a riser card and PCIe module at the
serv
er rear."
4. (Optional.) Install the flash card of the power fail safeguard module to the storage controller:
IMPORTANT:
Skip this step if no power fail safeguard module is required or the storage controller has a
built-in flash card. For information about storage controllers with a built-in flash card, see
"Storage controllers."
a. Install the two internal threaded studs supplied with the power fail safeguard module on the
storage controller.

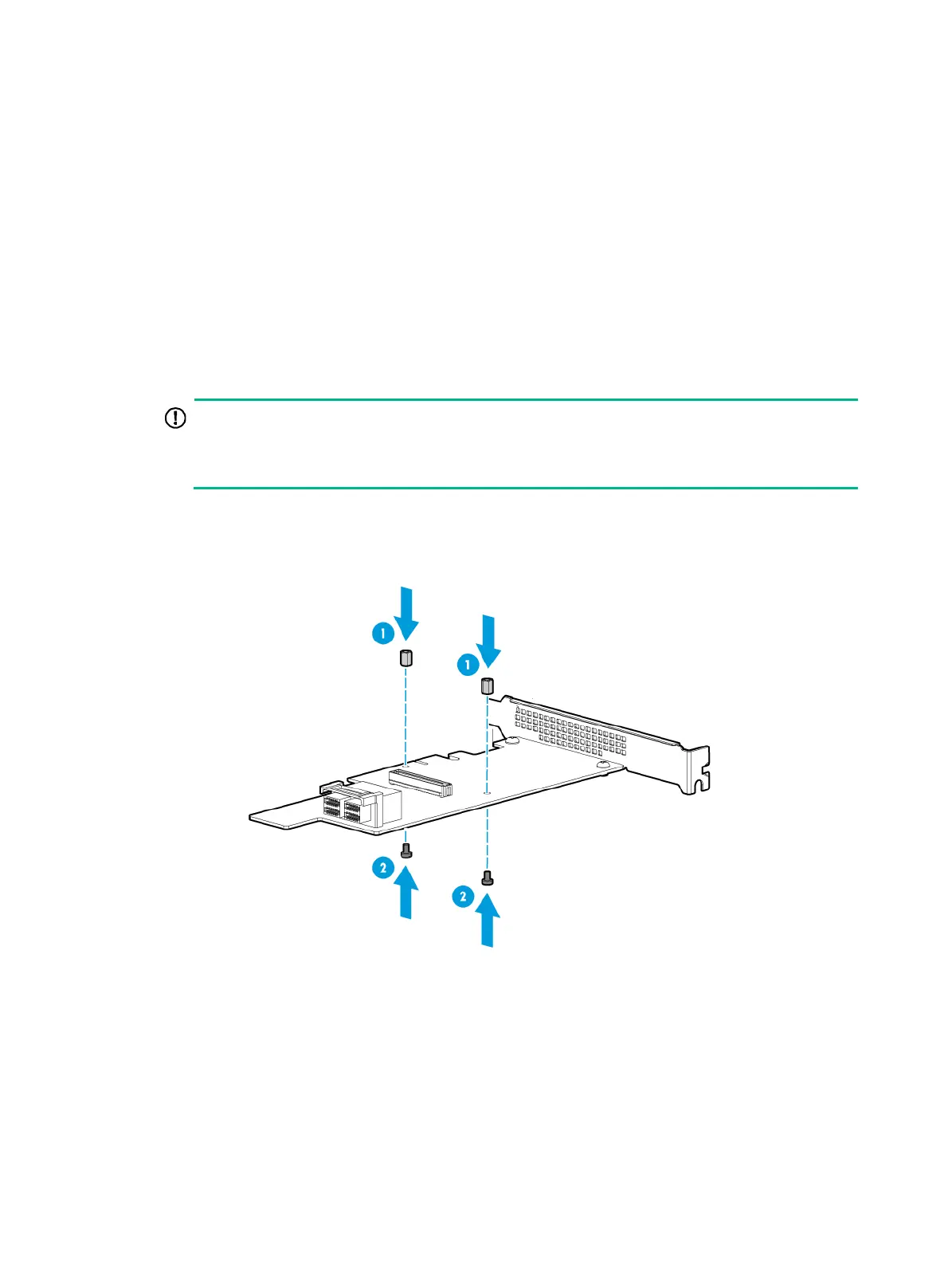

Figure 6-22 Installing the internal threaded studs
b. Use screws to secure the flash card on the storage controller.
