11-14
Drive
configuration
Drive cage bay
1 in compute
module 1
Drive cage bay
2 in compute
module 1
Drive cage bay
3 in compute
module 2
Drive cage bay
4 in compute
module 2
4SFF
(4 SFF NVMe drives)
/
4 SFF NVMe
drives
N/A
NOTE:
• To install 4 SFF SAS/SATA drives, a 4SFF SAS/SATA drive backplane is required. To install 4
SFF NVMe drives, a 4SFF NVMe drive backplane is required.
• "/" indicates no drives are required but drive blanks must be installed.
• "N/A" indicates that the compute module is not required but a compute module blank must be
installed.

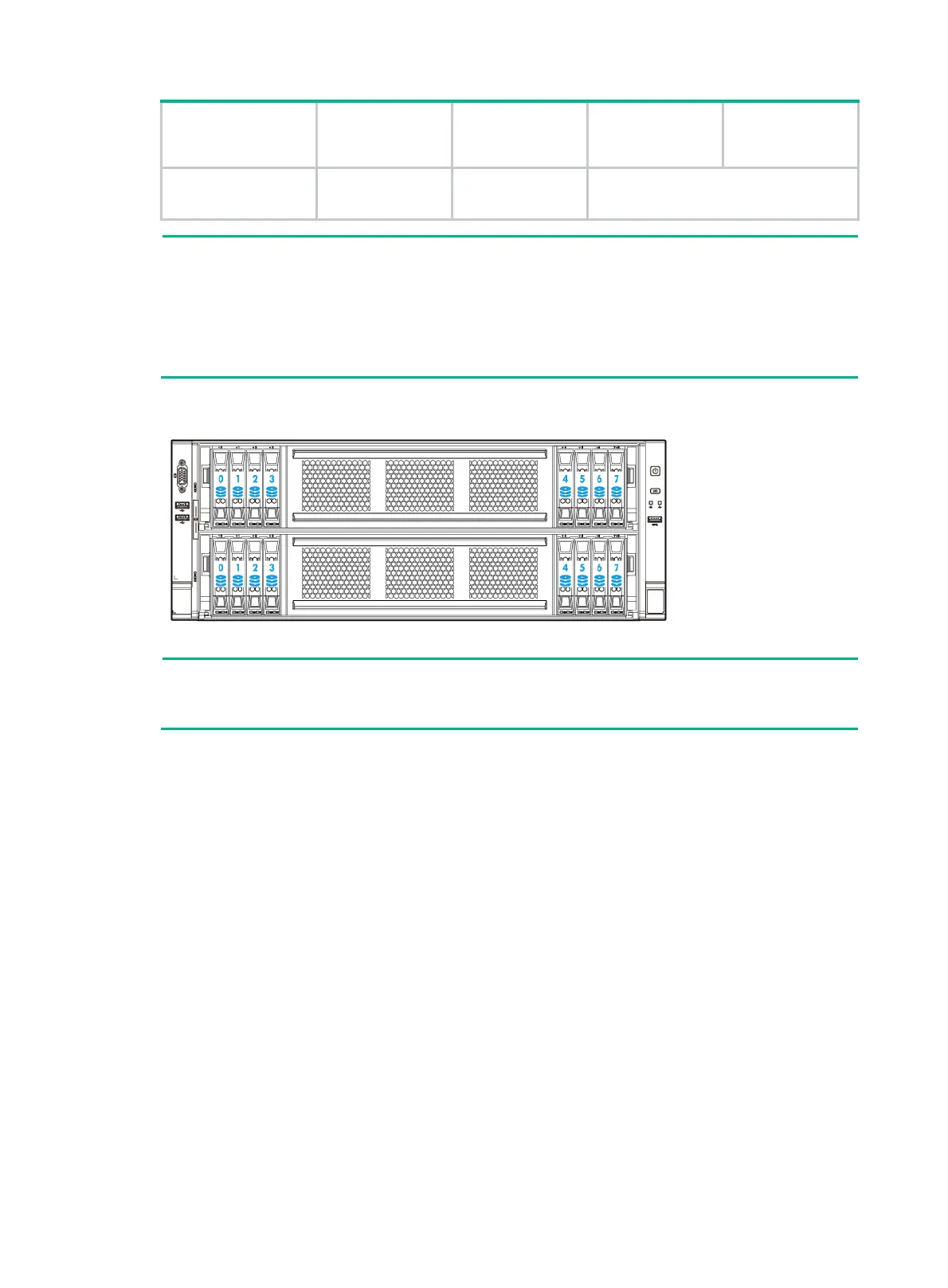

Figure 11-5 Drive numbering for the 16SFF drive configuration (16SFF server)
NOTE:
For the location of the compute modules, see "Front panel view of the server." F
or the location of the
drive cage bays, see "Front panel view of a compute module."
PCIe modules
Typically, the PCIe modules are available in the following standard form factors:
• LP—Low profile.
• FHHL—Full height and half length.
• FHFL—Full height and full length.
• HHHL—Half height and half length.
• HHFL—Half height and full length.
Some PCIe modules require PCIe I/O resources. Make sure the number of such installed PCIe
modules does not exceed eleven.
