7-48
Replacing the diagnostic panel
WARNING!
To avoid bodily injury from hot surfaces, allow the server and its internal modules to cool before
touching them.
To replace the diagnostic panel:
1. Power off the server. For more information, see "Powering off the server."
2. Remove the
security bezel, if any. For more information, see "Replacing the security bezel."
3. Remove the diagnostic panel, as shown in Figure 7-56:
a. Press the release button o
n the diagnostic panel, as shown by callout 1. The diagnostic
panel pops out.
b. Hold the diagnostic panel by its front edge to pull it out of the slot, as shown by callout 2.

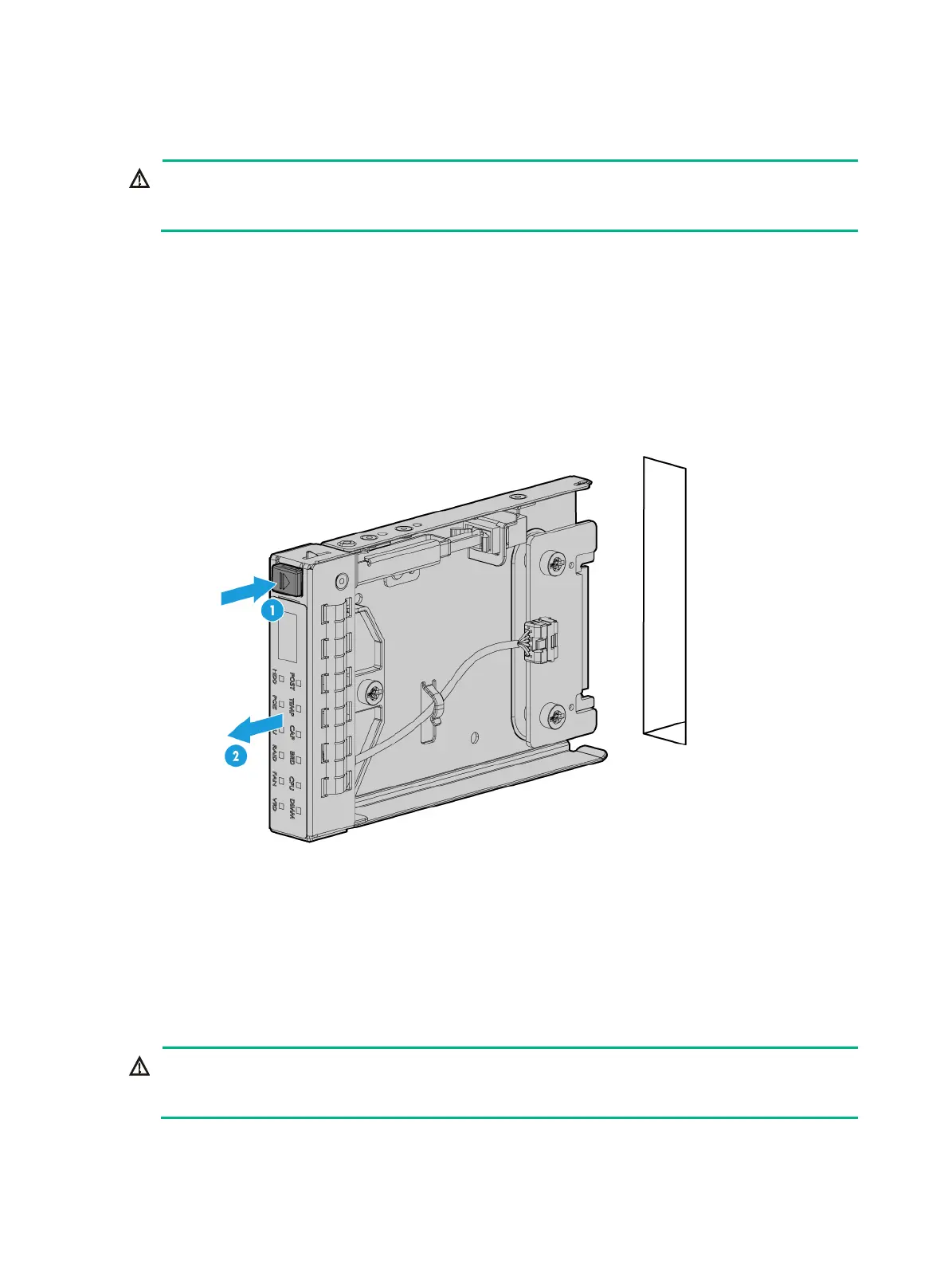

Figure 7-56 Removing the diagnostic panel
4. Install a new diagnostic panel. For more information, see "Installing a diagnostic panel."
5. Install the removed security bezel. For more information, see "Replacing the security bezel."
6. Connect the power cord. For more information, see "Connecting the power cord."
7. Powe
r on the server. For more information, see "Powering on the server."
Replacing chassis ears
WARNING!
To avoid bodily injury from hot surfaces, allow the server and its internal modules to cool before
touching them.
The procedure is the same for the left and right chassis ears. This section uses the left chassis ear as
an example.
