7-30

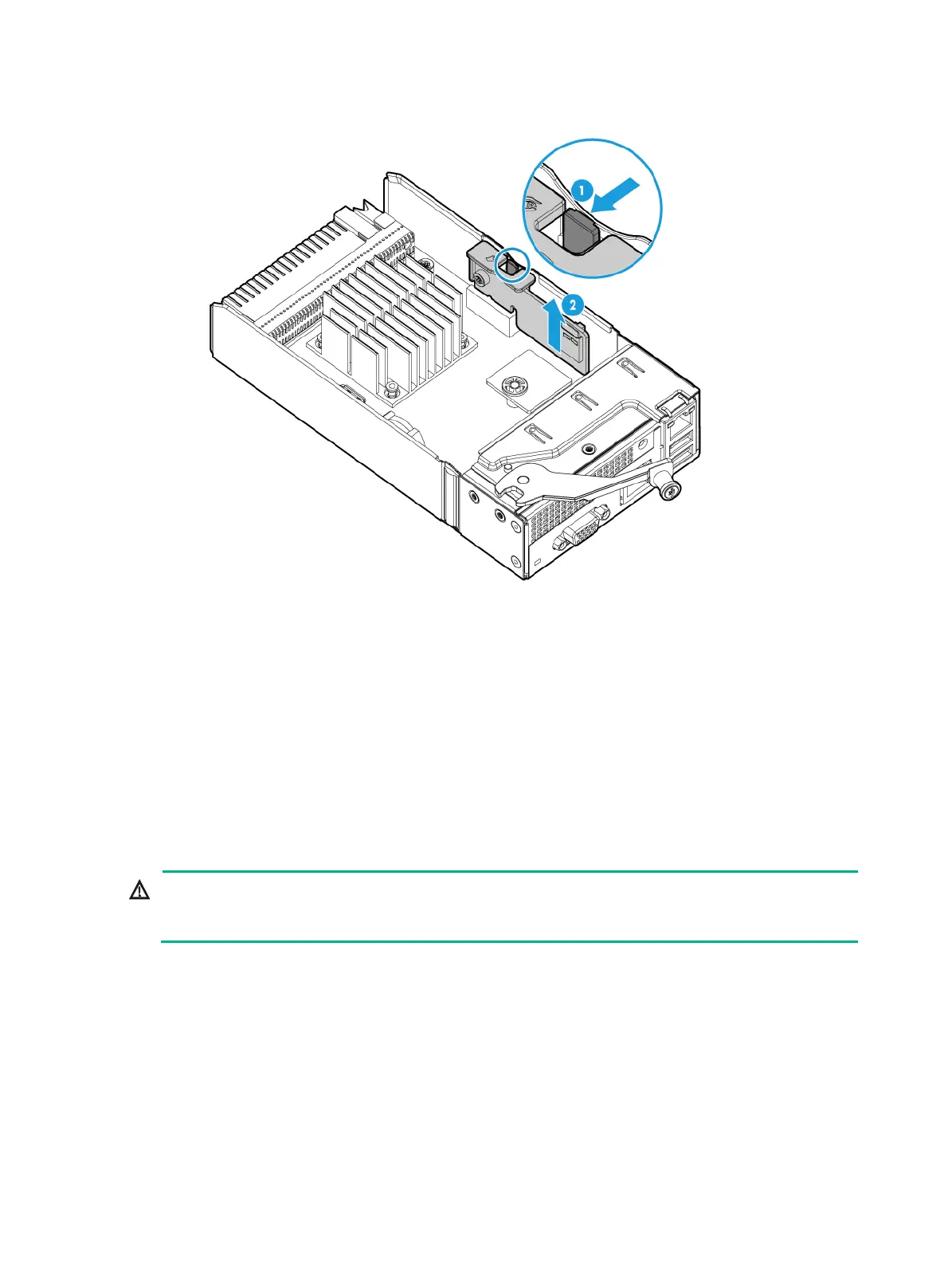

Figure 7-34 Removing the dual SD card extended module
5. Remove the SD cards installed on the extended module, as shown in Figure 7-33.
6. Install a new dual SD card extended module to the management module and install the
removed SD cards. For more information, see "Installing SD cards."
7. Install the management module. For more information, see "Installing the management
module."
8. Reconnect the cables to the management module.
9. Connect the power cord. For more information, see "Connecting the power cord."
10. Powe
r on the server. For more information, see "Powering on the server."
Replacing an NVMe SSD expander module
WARNING!
To avoid bodily injury from hot surfaces, allow the server and its internal modules to cool before
touching them.
The procedure is the same for replacing a 4-port NVMe SSD expander module and an 8-port NVMe
SSD expander module. This section uses a 4-port NVMe SSD expander module as an example.
To replace an NVMe SSD expander module:
1. Power off the server. For more information, see "Powering off the server."
2. Remove the
security bezel, if any. For more information, see "Replacing the security bezel."
3. Remove the compute module. For more information, see "Removing a compute module."
4. Remove the compute module access panel. For more information, see "Replacing a compute
module a
ccess panel."
5. Remove the NVMe SSD expander module:
