10. Install the compute module access panel. For more information, see "Replacing a compute
module access panel."
11. Install the compute module. For more information, see "Installing a compute module."
12. Install the removed security bezel. For more information, see "Installing the security bezel."
13. Connect the power cord. For more information, see "Connecting the power cord."
14. Powe
r on the server. For more information, see "Powering on the server."
Replacing the power supply air baffle
1. Power off the server. For more information, see "Powering off the server."
2. Remove the server if the space over the server is insufficient. For more information, see
"Removing the server from a rack."
3. Remove the
chassis access panel. For more information, see "Replacing the chassis access
panel."
4. Remove the power supply air baffle. Hold the notches on the air baffle and lift the air baffle out
of the chassis, as shown in Figure 7-17.

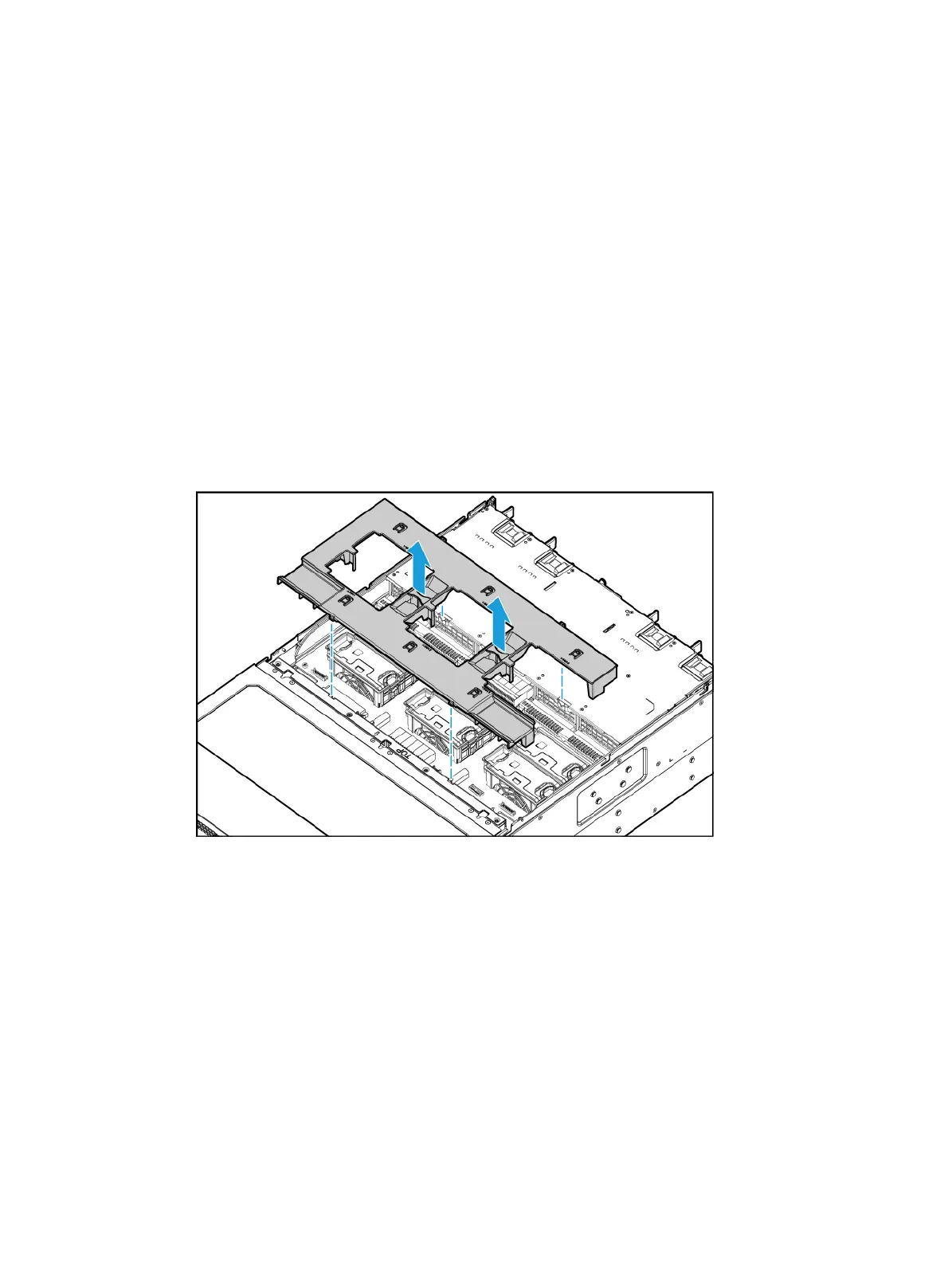

Figure 7-17
Removing the power supply air baffle
5. Install the power supply air baffle. Place the air baffle in the chassis, as shown in Figure 7-18.
Make sure the four standouts on the air baffle are aligned with the notches on the chassis.
