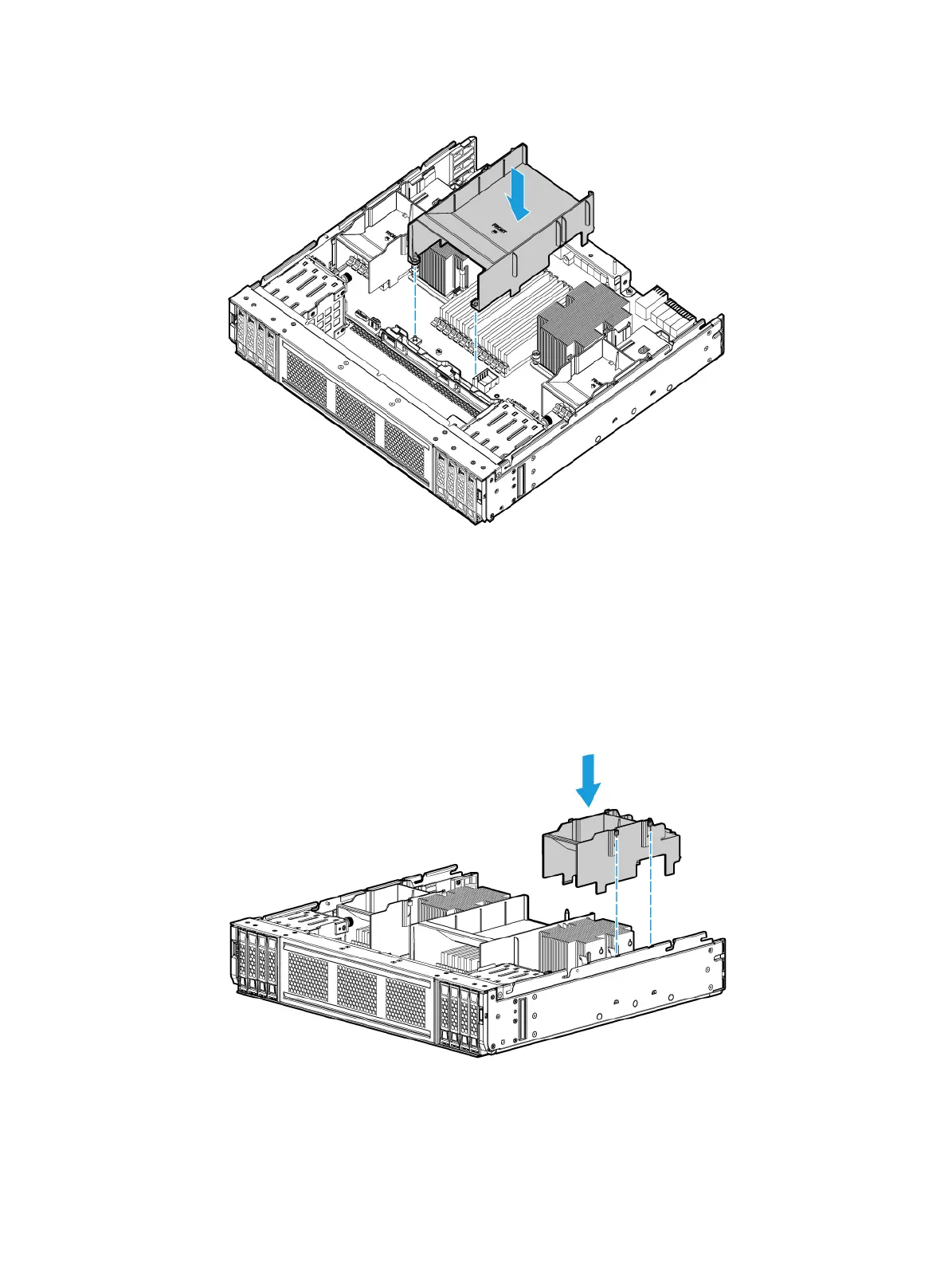

Figure 7-15 Installing the high mid air baffle
{ To install the low mid air baffle, see "Installing the low mid air baffle or GPU module air baffle
to a compute module" for more information.
{ To install a left or right air baffle, place the air baffle in the compute module, as shown
in Figure 7-16, with the
standouts on the air baffle aligned with the notches on the side of the
compute module.
The installation procedure is the same for the bilateral air baffles. The following figure uses
the right air baffle for illustration.
Figure 7-16 Installing the right air baffle
8. Install the removed riser cards, if any. For more information, see "Replacing a riser card and a
PCIe module."
9. Install the removed supercapacitor and supercapacitor holder. For more information, see
"Installing storage controllers and power fail safeguard modules."
