10-3
Components

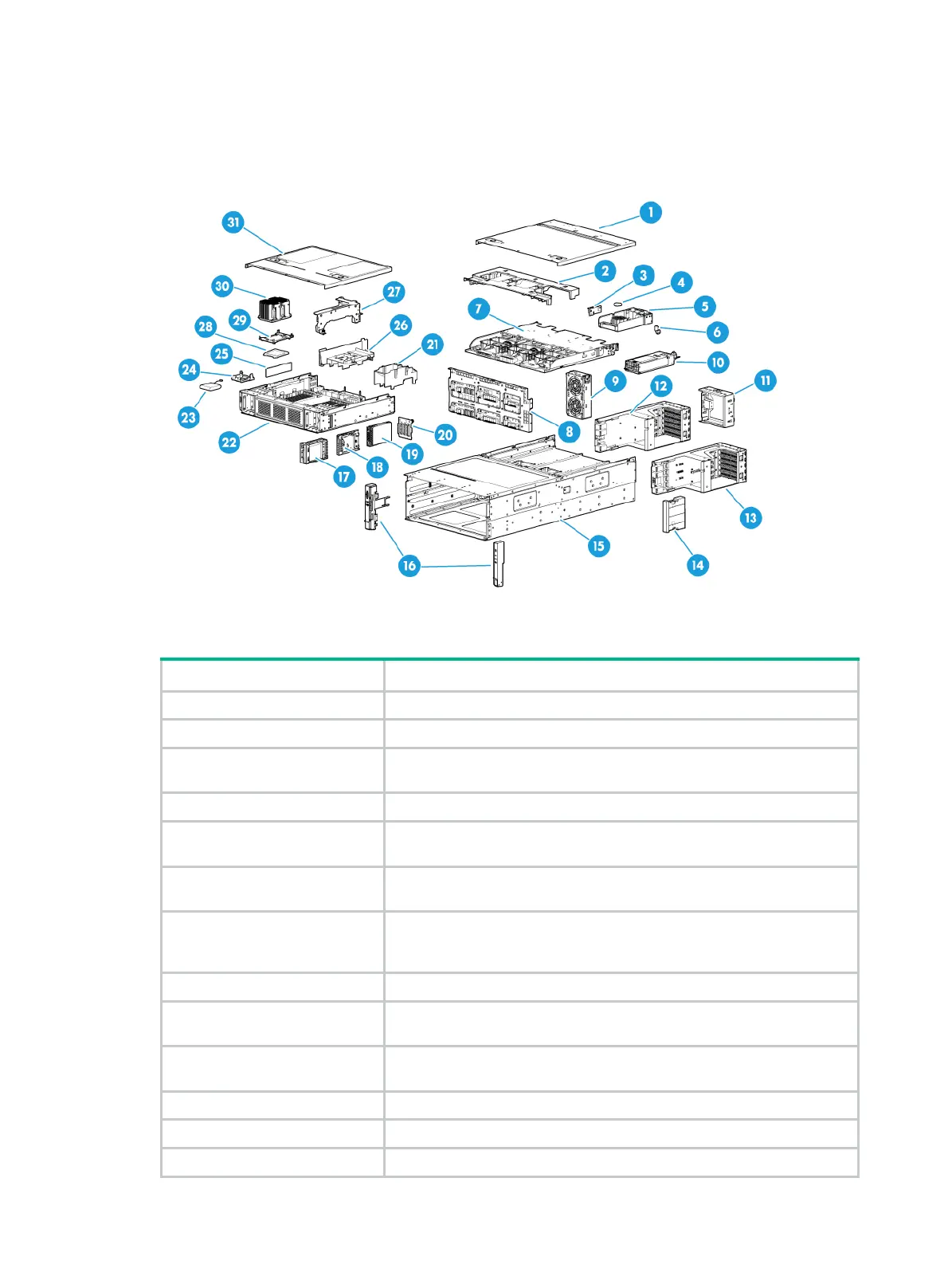

Figure 10-2 R6900 G3 server components
Table 10-2 R6900 G3 server components
Item Description
(1) Chassis access panel N/A
(2) Power supply air baffle Provides ventilation aisles for power supplies.
(3) Dual SD card extended
module
Provides two SD card slots.
(4) System battery Supplies power to the system clock.
(5) Management module
Provides system management and monitoring features, and a
management network port, a VGA connector, and USB connectors.
(6) NVMe VROC module
Works with Intel VMD to provide RAID capability for the server to
virtualize storage resources of NVMe drives.
(7) PDB
Used for installing power supplies and the management module, and
provides cable connectors for the front I/O component, and VGA and
USB 2.0 connectors.
(8) Midplane Provides data and power channels in the server.
(9) Fan module
Supports hot swapping. Fans in the fan modules support N+1
redundancy.
(10) Power supply
Supplies power to the server and supports hot swapping and N+N
redundancy.
(11) Riser card blank Installed on an empty PCIe riser bays to ensure good ventilation.
(12) Rear riser card 2 Installed on PCIe riser bay 2 at the server rear.
(13) Rear riser cards 1 or 3 Installed on PCIe riser bay 1 or 3 at the server rear.
