Item Specifications
Form factors of PCIe modules FHHL
Maximum power supplied per PCIe slot 75 W

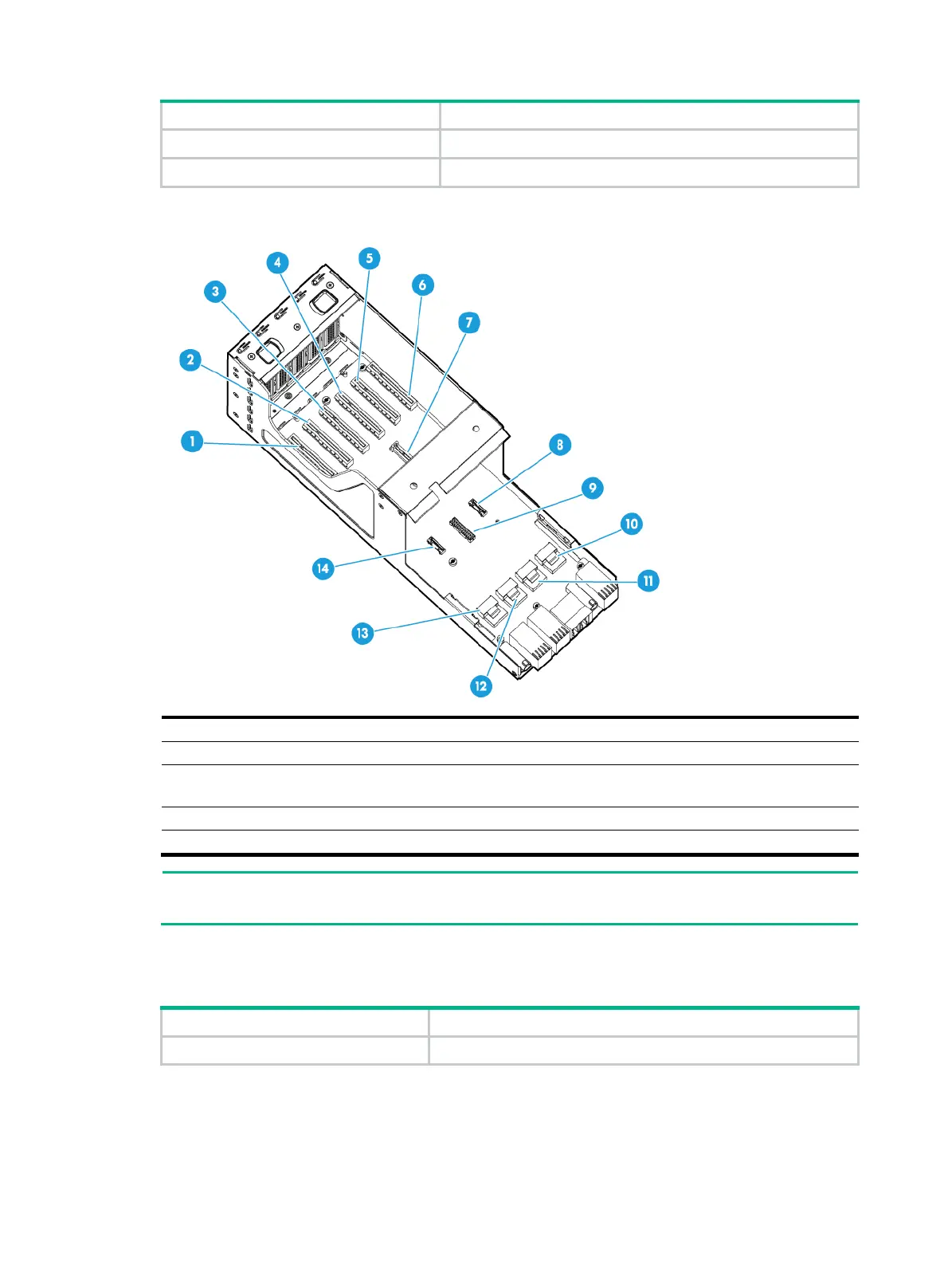

Figure 11-9 RS-6*FHHL-G3-1 riser card
(1) PCIe slot 1 (2) PCIe slot 2 (3) PCIe slot 3
(4) PCIe slot 4 (5) PCIe slot 5 (6) PCIe slot 6
(7) mLOM Ethernet adapter
connector
(8) Supercapacitor connector 2 (9) NCSI connector
(10) SAS port B2 (×4 SAS ports) (11) SAS port B1 (×4 SAS ports) (12) SAS port A2 (×4 SAS ports)
(13) SAS port A1 (×4 SAS ports) (14) Supercapacitor connector 1
NOTE:
PCIe slot 4 is unavailable if an mLOM Ethernet adapter is installed.
RS-6*FHHL-G3-2
Item Specifications
PCIe riser bay Bay 2 at the server rear
