11-31
Item Specifications
PCIe slots
• Slot 1: PCIe3.0 ×8 (8, 4, 2, 1) for processor 2 in compute
module 1
• Slot 2: PCIe3.0 ×8 (8, 4, 2, 1) for processor 1 in compute
module 1
• Slots 3, 4, and 6: PCIe3.0 ×8 (8, 4, 2, 1) for processor 1 in
compute module 2
• Slot 5: PCIe3.0 ×8 (8, 4, 2, 1) for processor 2 in compute
module 2
NOTE:
The numbers in parentheses represent link widths.
Form factors of PCIe modules FHHL
Maximum power supplied per PCIe slot 75 W

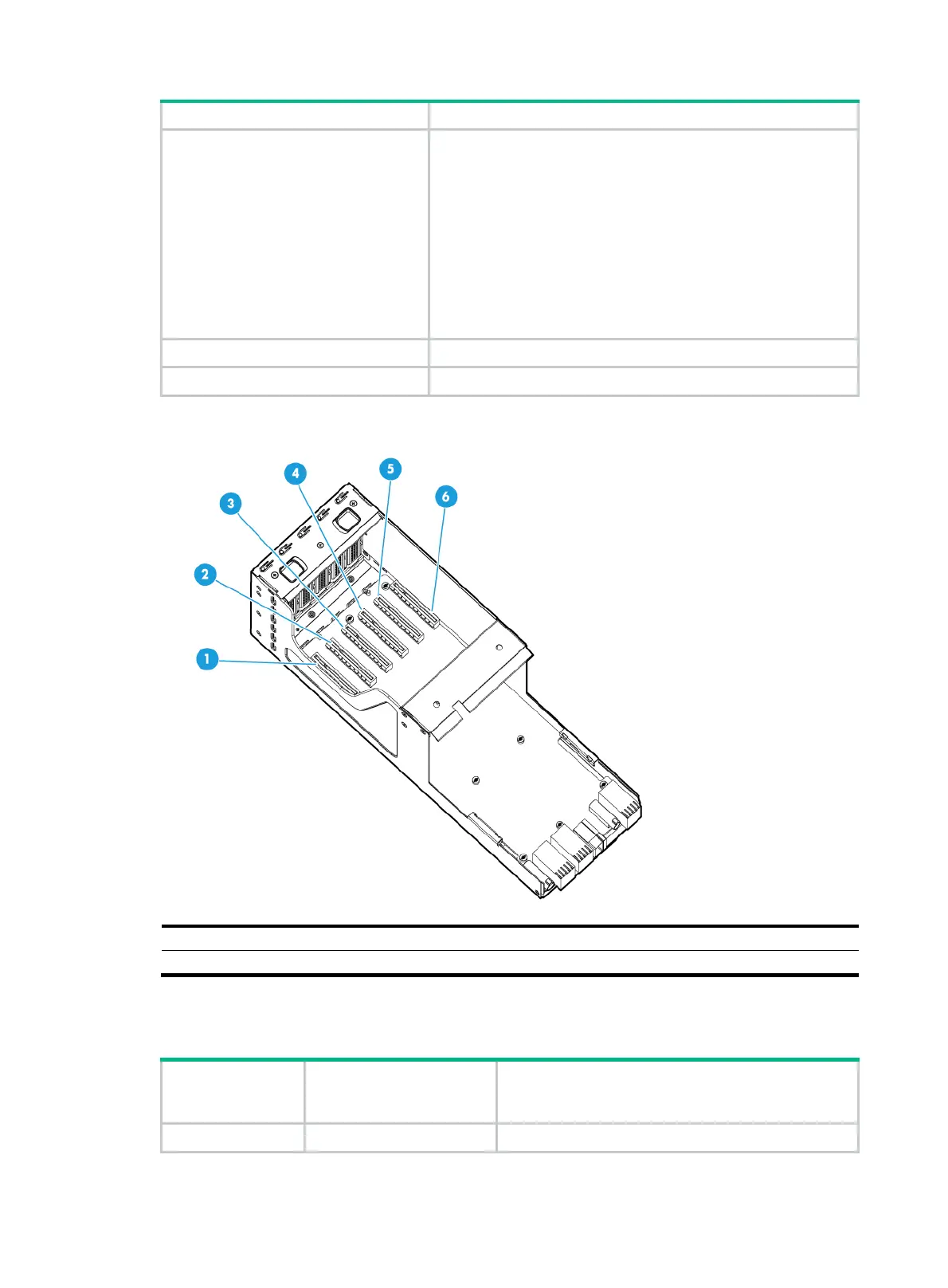

Figure 11-10 RS-6*FHHL-G3-2 riser card
(1) PCIe slot 1 (2) PCIe slot 2 (3) PCIe slot 3
(4) PCIe slot 4 (5) PCIe slot 5 (6) PCIe slot 6
Riser card and system board port mapping relationship
Riser card name Ports on the riser card Corresponding ports on the system board
Riser card 0 N/A N/A
