7-42

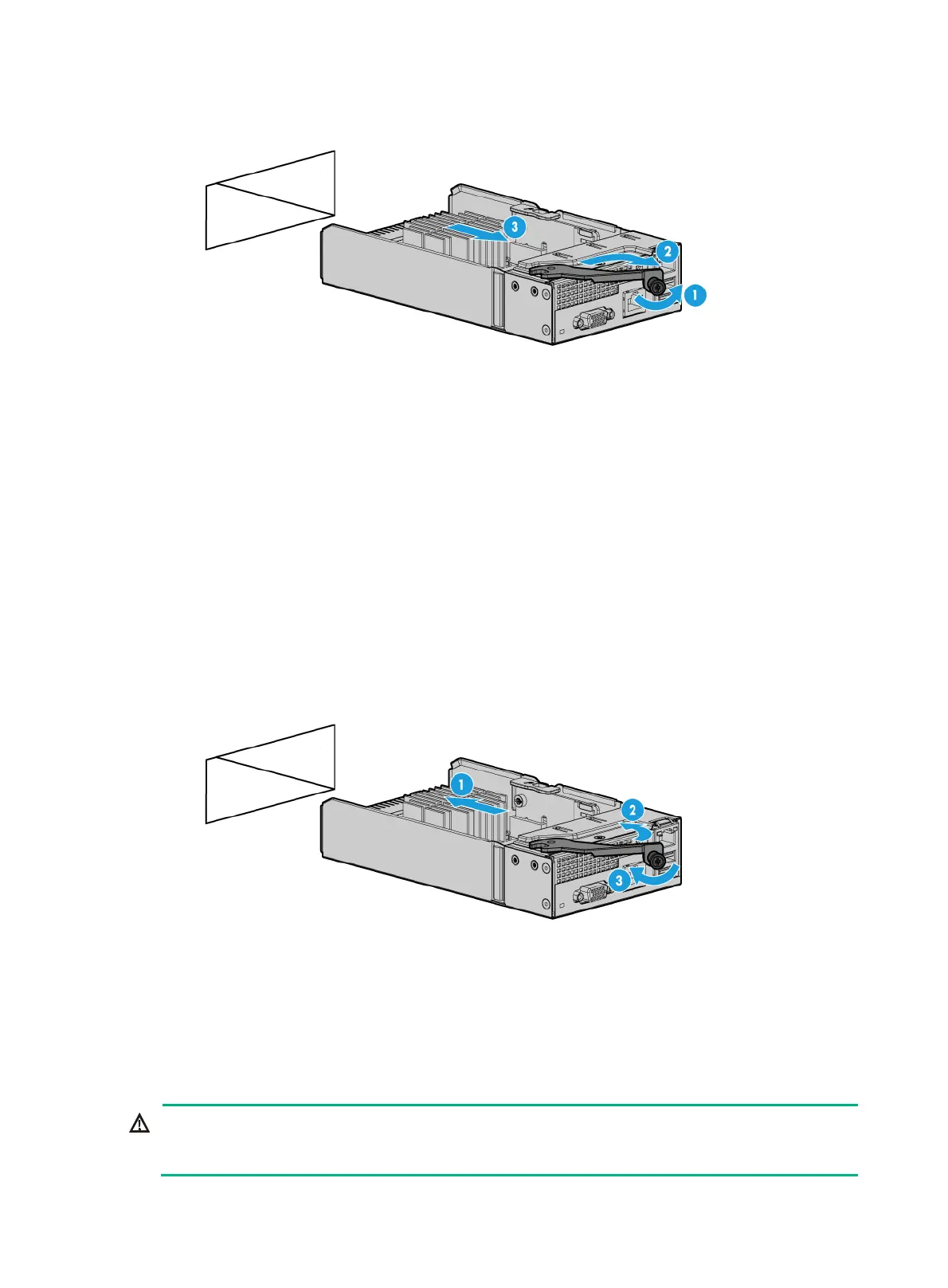

Figure 7-47 Removing the management module
4. Remove the dual SD card extended module. For more information, see "Replacing an NVMe
SSD expander module."
5. Remove the NVMe VROC module. For more information, see "Replacing the NVMe VROC
module."
Installing the management module
1. Install the NVMe VROC module. For more information, see "Installing the NVMe VROC
module."
2. Install the dual SD card extended module. For more information, see "Installing SD cards."
3. Install the TPM or TCM. F
or more information, see "Installing and setting up a TCM or TPM."
4. Push the management module into the slot, rotate the ejector lever inward, and then fasten the
captive screw on the ejector lever to secure the module into place, as shown in Figure 7-48.
Figure 7-48
Installing the management module
5. Reconnect the cables to the management module.
6. Connect the power cord. For more information, see "Connecting the power cord."
7. Powe
r on the server. For more information, see "Powering on the server."
Replacing the PDB
WARNING!
To avoid bodily injury from hot surfaces, allow the server and its internal modules to cool before
touching them.
