Riser card guidelines
Each PCIe slot in a riser card can supply a maximum of 75 W power to the PCIe module. You must
connect a separate power cord to the PCIe module if it requires more than 75 W power.
If a processor is faulty or absent, the corresponding PCIe slots are unavailable.
RS-FHHL-G3
Item Specifications
PCIe riser connector Connector 0 in a compute module
PCIe slots
Slot 1: PCIe3.0 ×16 (16, 8, 4, 2, 1) for processor 2 of the compute
module
NOTE:
The numbers in parentheses represent link widths.
Form factors of PCIe modules FHHL
Maximum power supplied per PCIe slot 75 W

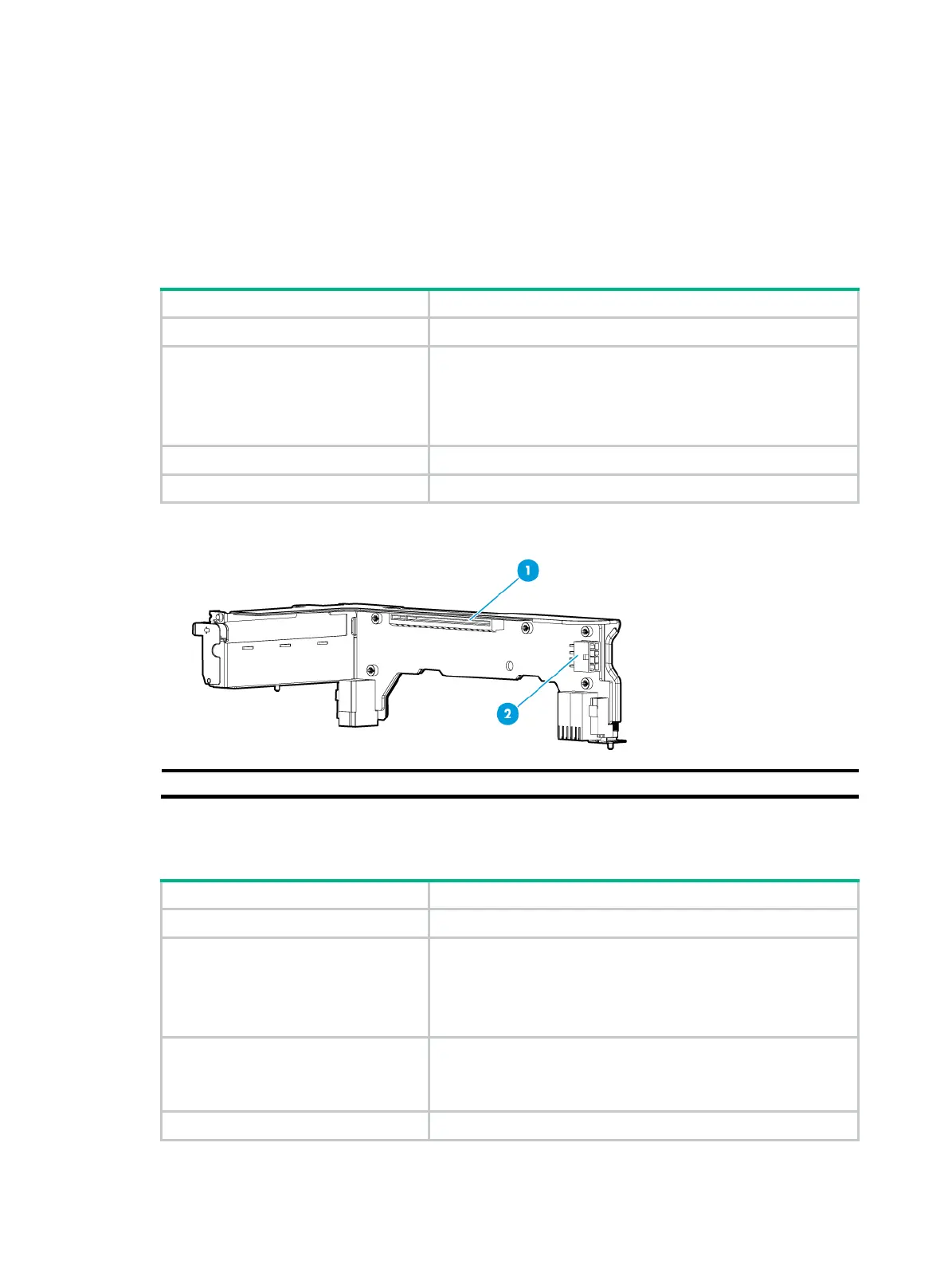

Figure 11-6 RS-FHHL-G3 riser card
(1) PCIe slot 1 (2) GPU module power connector
RS-GPU-R6900-G3
Item Specifications
PCIe riser connector Connector 0 in a compute module
PCIe slots
Slot 1: PCIe3.0 ×16 (16, 8, 4, 2, 1) for processor 2 of the compute
module
NOTE:
The numbers in parentheses represent link widths.
Form factors of PCIe modules
FHHL
NOTE:
The riser card supports double-wide GPU modules.
Maximum power supplied per PCIe slot 75 W
