8-8
Connecting the flash card on a storage controller
When connecting a flash card cable and a supercapacitor cable, make sure you connect the correct
supercapacitor connectors in the riser card and on the main board. Use Table 8-3 to determi
ne the
method for flash card and supercapacitor cabling.
Table 8-3 Flash card and supercapacitor cabling method
Location of the storage
controller
Supercapacitor connector
on the riser card
Supercapacitor connector on the
main board
Slot 1, 2, or 3
Supercapacitor connector 1
(See Figure 8-11)
Superc
apacitor connector 1 in compute
module 1
Slot 4, 5, or 6
Supercapacitor connector 2
(See Figure 8-12)
Superc
apacitor connector 1 in compute
module 2

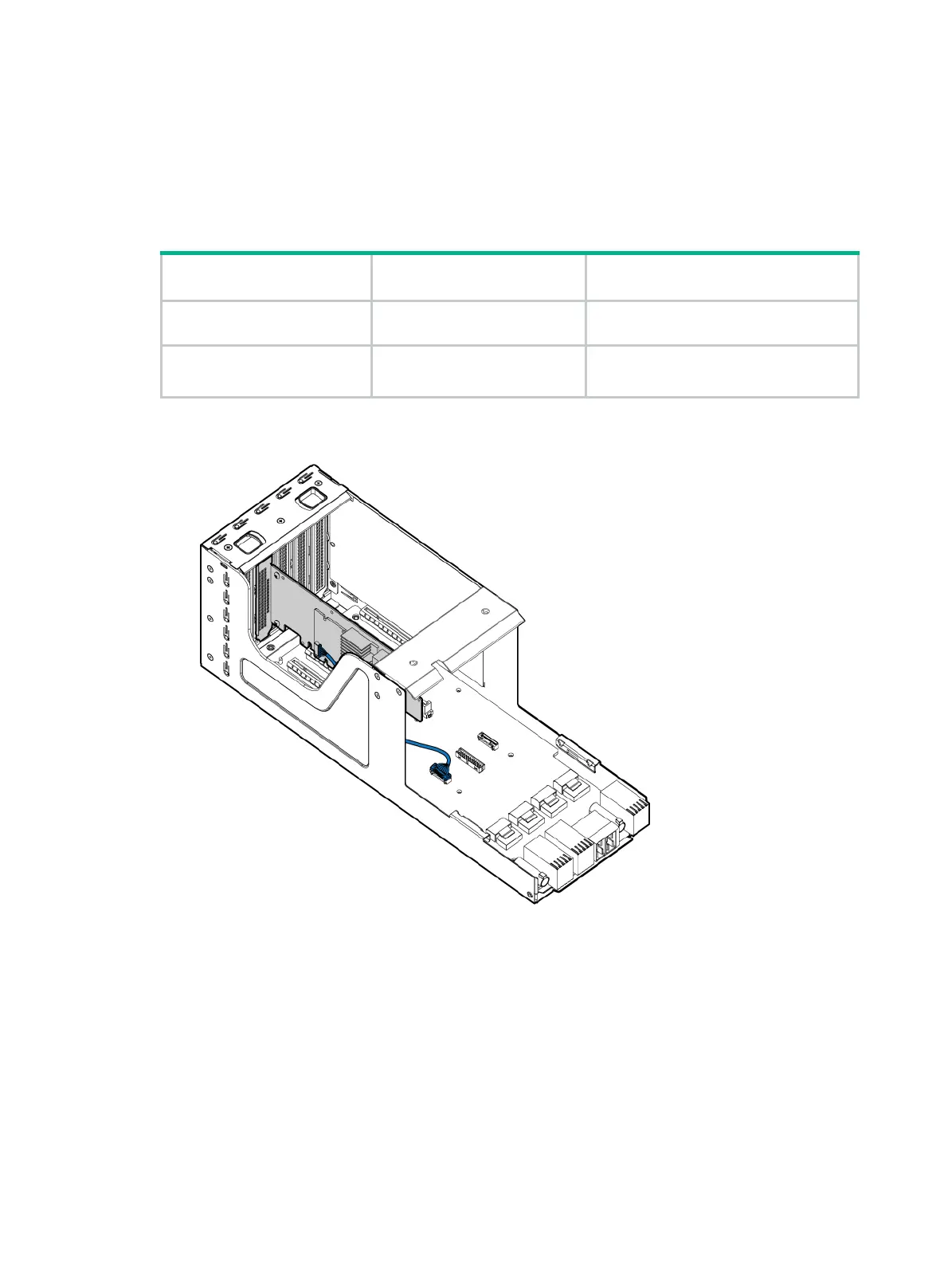

Figure 8-11 Connecting the flash card on a storage controller in slot 3
