Removing the PDB
1. Power off the server. For more information, see "Powering off the server."
2. Remove the server from the rack, if the space over the server is insufficient. For more
information, see "Removing the server from a rack."
3. Remove the
chassis access panel. For more information, see "Replacing the chassis access
panel."
4. Remove the power supply air baffle. For more information, see "Replacing the power supply air
baffle."
5. Remove all fa
n modules. For more information, see "Replacing a fan module."
6. Remove all power supplies. For more inf
ormation, see "Replacing a power supply."
7. Remove the management module. For more information, see "Removing the management
module."
8. Remove the PDB:
a. Disconnect cables from the PDB, as shown in Figure 7-49.

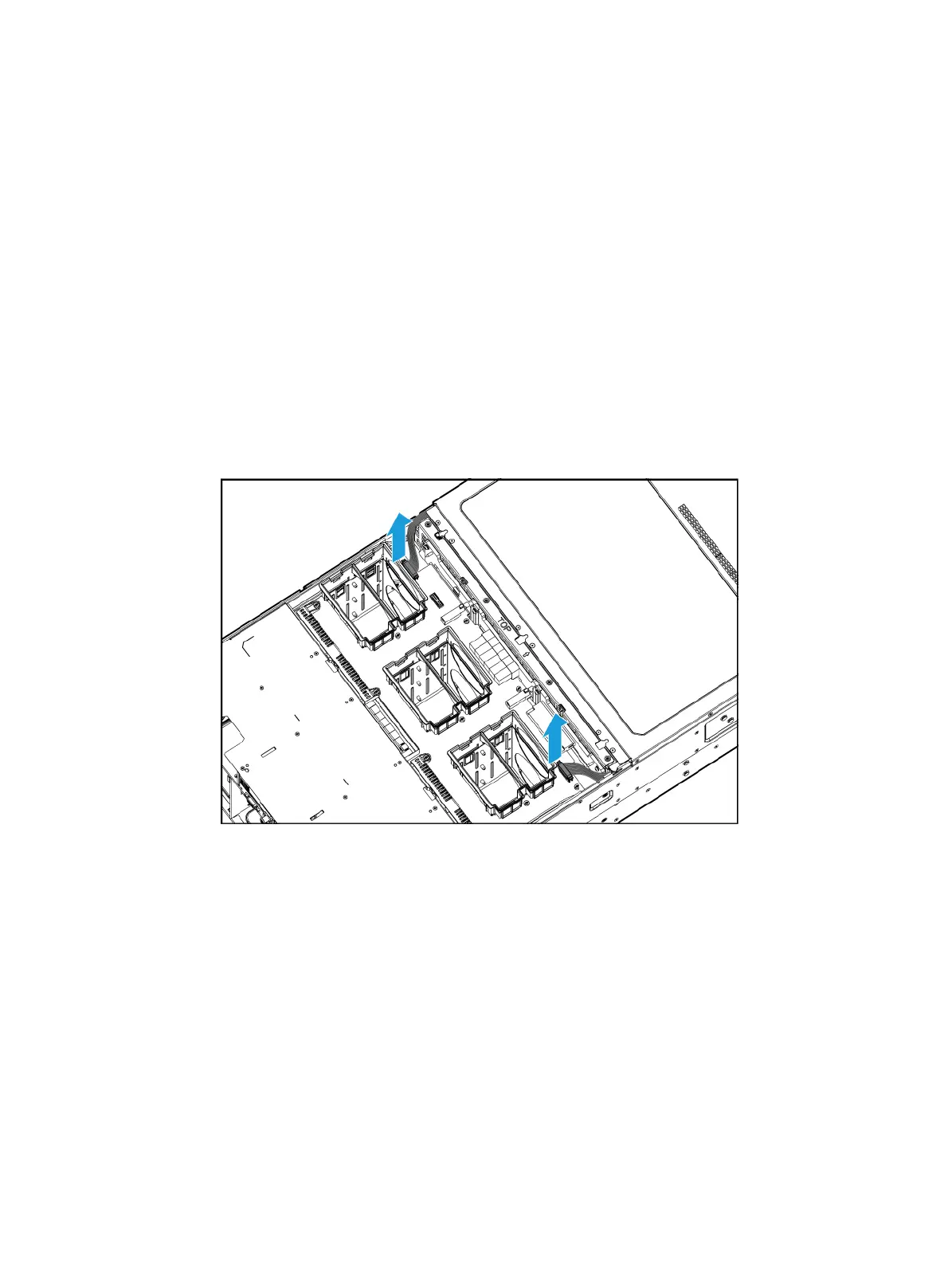

Figure 7-49
Disconnecting cables from the PDB
b. Press the locking tabs on the PDB to release the ejector levers of the PDB, as shown
in Figure 7-50.
