11-28

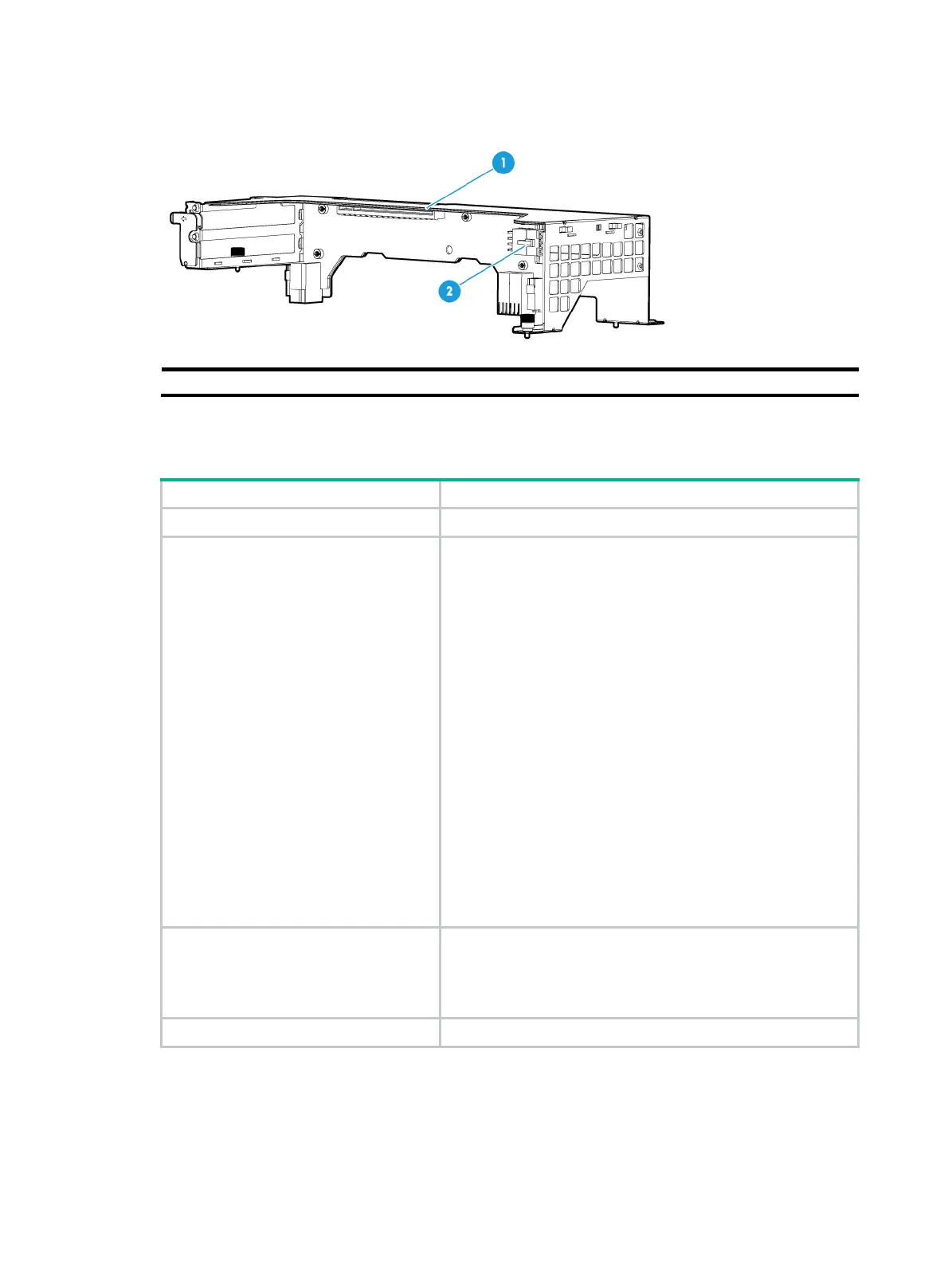

Figure 11-7 RS-GPU-R6900-G3 riser card
(1) PCIe slot 1 (2) GPU module power connector
RS-4*FHHL-G3
Item Specifications
PCIe riser bay Bay 1 or 3 at the server rear
PCIe slots
• PCIe riser bay 1:
{ Slot 2: PCIe3.0 ×16 (8, 4, 2, 1) for processor 1 in
compute module 1
{ Slot 3: PCIe3.0 ×8 (8, 4, 2, 1) for processor 1 in
compute module 1
{ Slot 4: PCIe3.0 ×8 (8, 4, 2, 1) for processor 1 in
compute module 2
{ Slot 6: PCIe3.0 ×16 (8, 4, 2, 1) for processor 1 in
compute module 2
• PCIe riser bay 3:
{ Slot 2: PCIe3.0 ×16 (8, 4, 2, 1) for processor 2 in
compute module 1
{ Slot 3: PCIe3.0 ×8 (8, 4, 2, 1) for processor 2 in
compute module 1
{ Slot 4: PCIe3.0 ×8 (8, 4, 2, 1) for processor 2 in
compute module 2
{ Slot 6: PCIe3.0 ×16 (8, 4, 2, 1) for processor 2 in
compute module 2
NOTE:
The numbers in parentheses represent link widths.
Form factors of PCIe modules
FHHL
NOTE:
Slots 2 and 6 of the riser card support single-wide GPU
modules.
Maximum power supplied per PCIe slot 75 W
