7-14

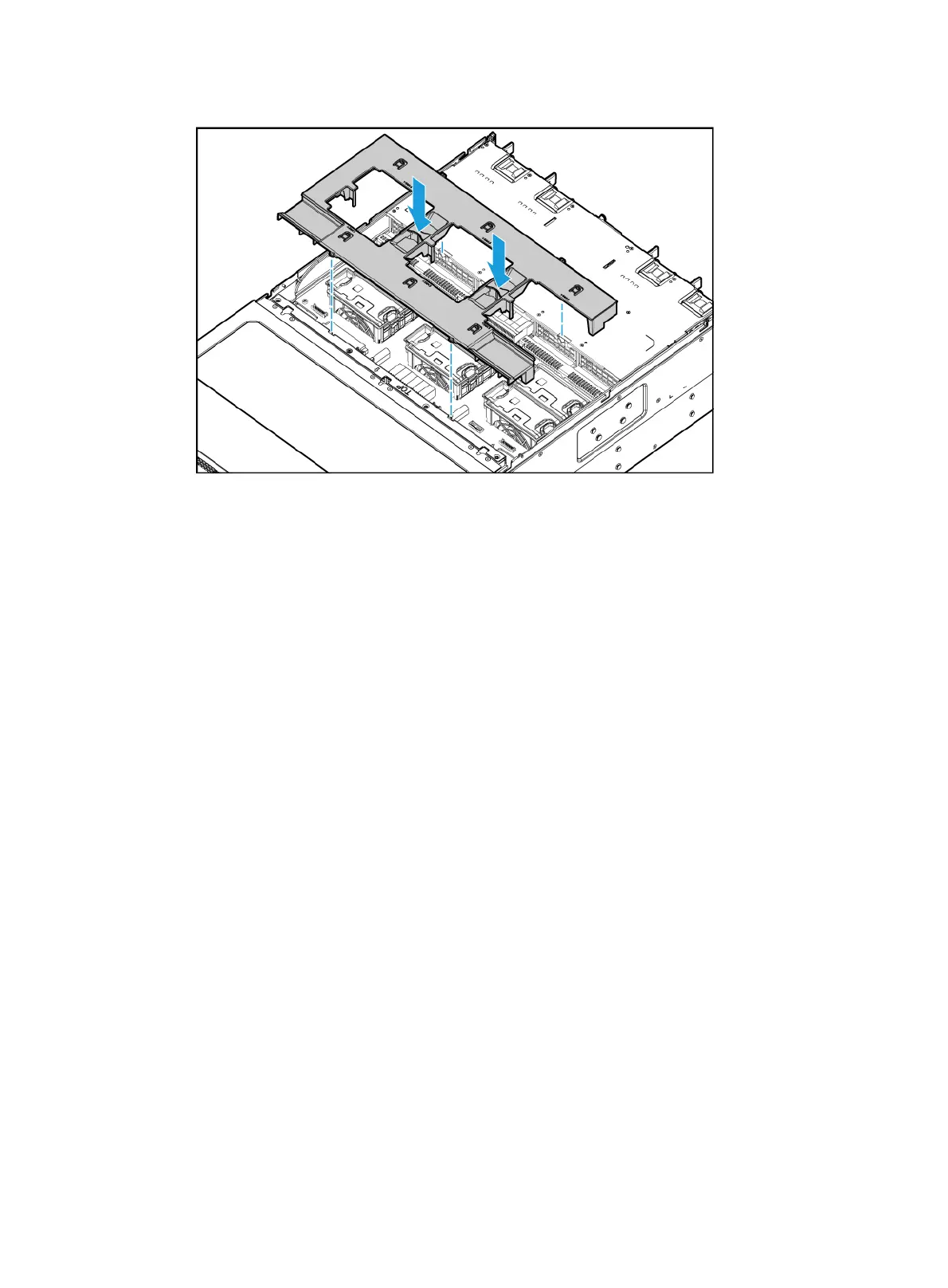

Figure 7-18 Installing the power supply air baffle
6. Install the chassis access panel. For more information, see "Replacing the chassis access
panel."
7. Mount the server in a rack. For more information, see "Installing the server."
8. Connect the power cord. For more information, see "Connecting the power cord."
9. Powe
r on the server. For more information, see "Powering on the server."
Replacing a riser card air baffle
1. Power off the server. For more information, see "Powering off the server."
2. Disconnect external cables from the riser card at the server rear if the cables hinder air baffle
replacement.
3. Remove the riser card. For more information, see "Replacing a riser card and PCIe module at
the serve
r rear."
4. Remove the air baffle in the riser card. Squeeze the clips at both sides of the air baffle, and lift
the air baffle out of the riser card, as shown in Figure 7-19.
