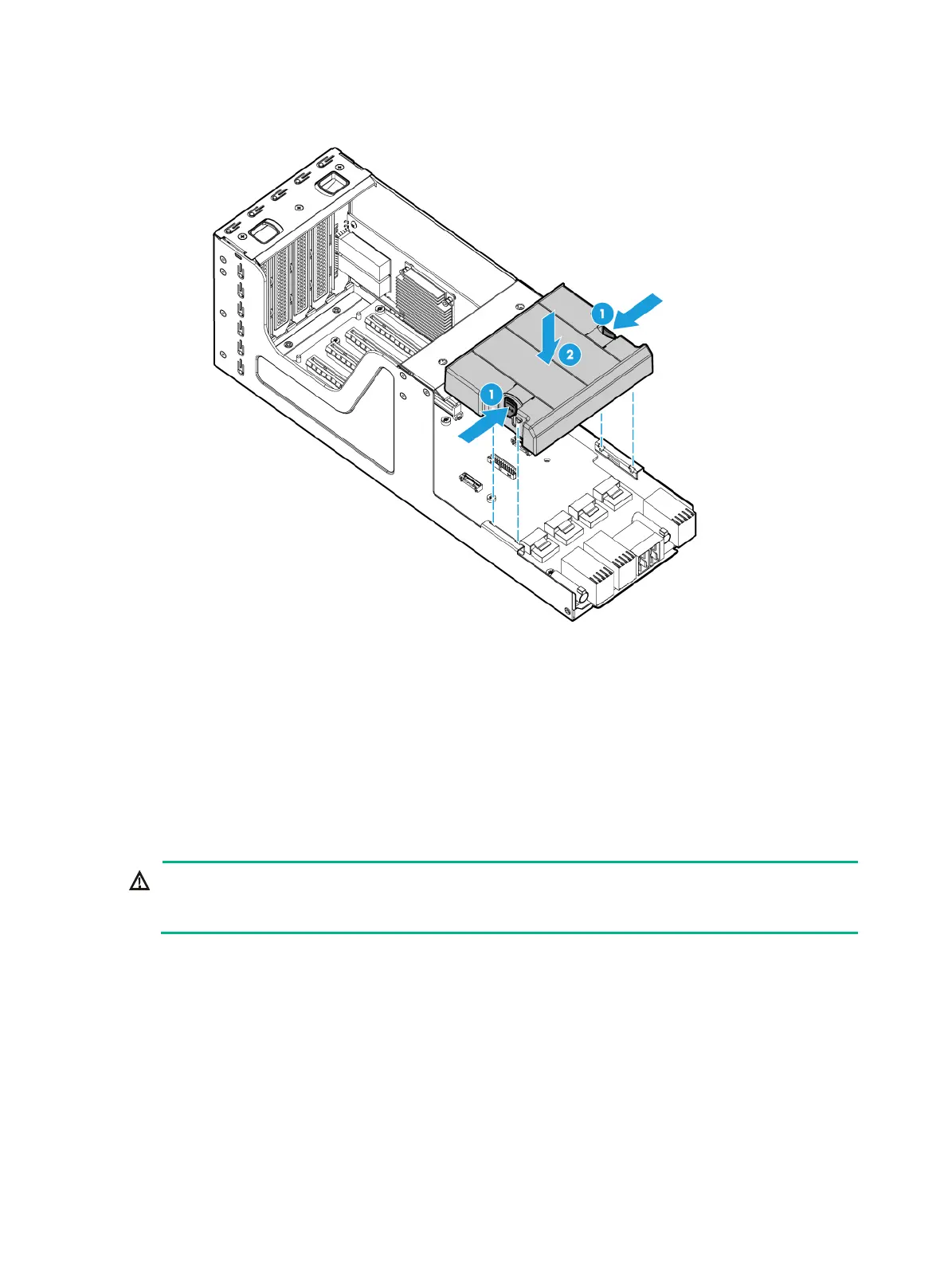

Figure 7-20 Installing a riser card air baffle
6. Install the riser card. For more information, see "Installing riser cards and PCIe modules at the
server rear."
7. Reconnect the external cables to the riser card.
8. Connect the power cord. For more information, see "Connecting the power cord."
9. Powe
r on the server. For more information, see "Powering on the server."
Replacing a riser card and a PCIe module
WARNING!
To avoid bodily injury from hot surfaces, allow the server and its internal modules to cool before
touching them.
Replacing the riser card and PCIe module in a compute
module
1. Power off the server. For more information, see "Powering off the server."
2. Remove the security bezel, if any. For more information, see "Replacing the security bezel."
3. Remove the compute module. For more information, see "Removing a compute module."
4. Remove the compute module access panel. For more information, see "Replacing a compute
module a
ccess panel."
5. Remove the riser card in the compute module:
