H3C UniServer R6900 G3 User Manual

6-16

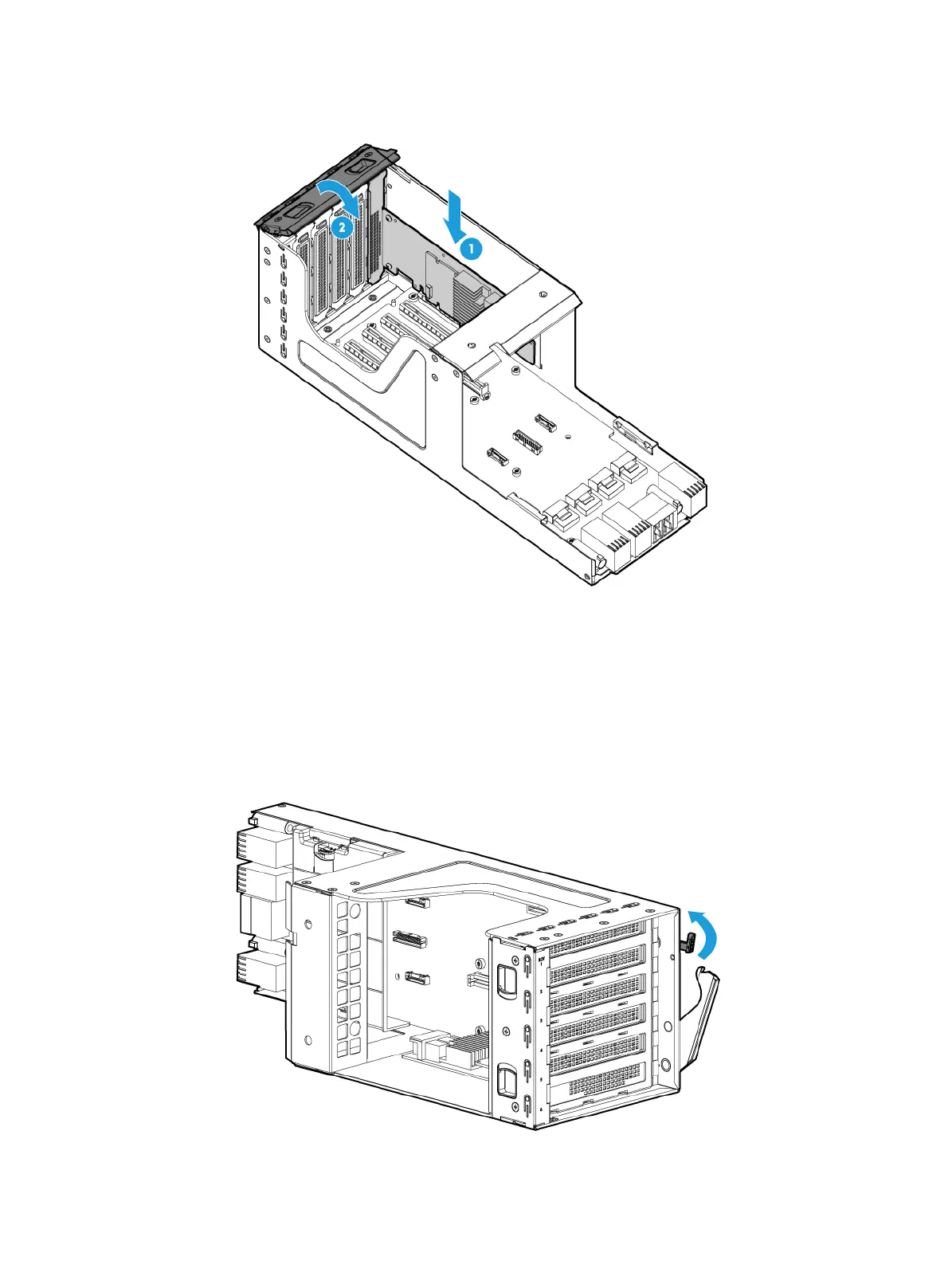

Figure 6-19 Installing a PCIe module to the riser card
e. Connect PCIe module cables, if any, to the PCIe module.
f. Install the removed riser card air baffle. For more information, see "Replacing a riser card air
baffle."
4. Ins
tall the riser card to the server.
a. Unlock the riser card. As shown in Figure 6-20, rotate
the latch on the riser card upward to
release the ejector lever.
Figure 6-20 Unlocking the riser card
