5. Install PCIe modules to the riser card. For more information, see "Installing riser cards and PCIe
modules at the server rear."
6. If an installed PCIe module requires external cables, remove the air baffle panel closer to the
PCIe module installation slot for the cables to pass through.

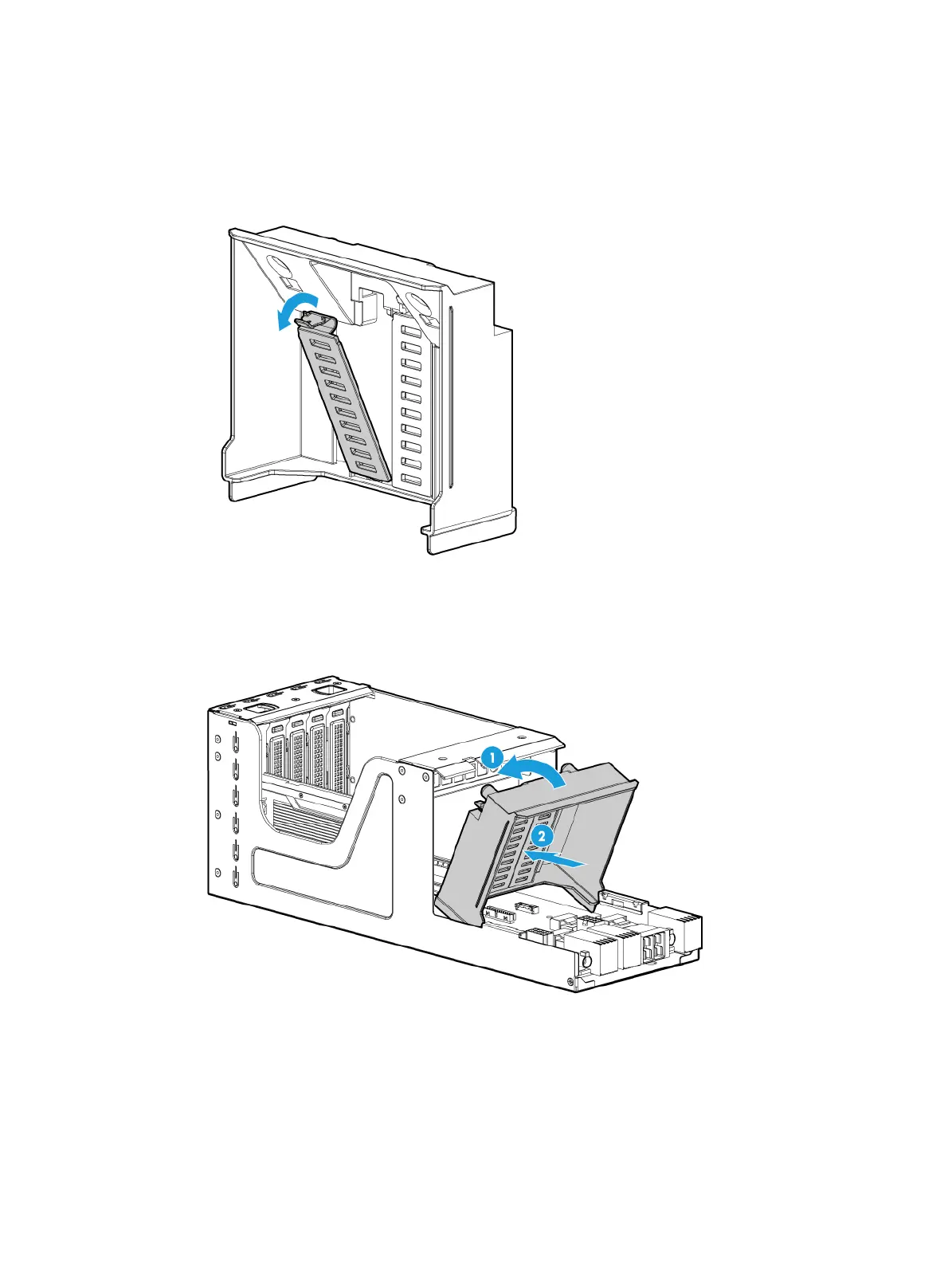

Figure 6-12 Removing an air baffle panel from the GPU module air baffle
7. Install the GPU module air baffle to the rear riser card. Tilt and insert the air baffle into the riser
card, and then push the riser card until it snaps into place, as shown in Figure 6-13.
Figure 6-13
Installing the GPU module air baffle to the rear riser card
8. Install the rear riser card. For more information, see "Installing riser cards and PCIe modules at
the server rear."
9. (Optional.) Connect external cables to the riser card.
10. Connect the power cord. For more information, see "Connecting the power cord."
11. Powe
r on the server. For more information, see "Powering on the server."
