Thread, direct unit
The unit cuts a simple internal or external thread in longitudinal
direction.
Unit name: G32_MAN / cycle: G32
Further information: "Single thread cycle G32", Page 352

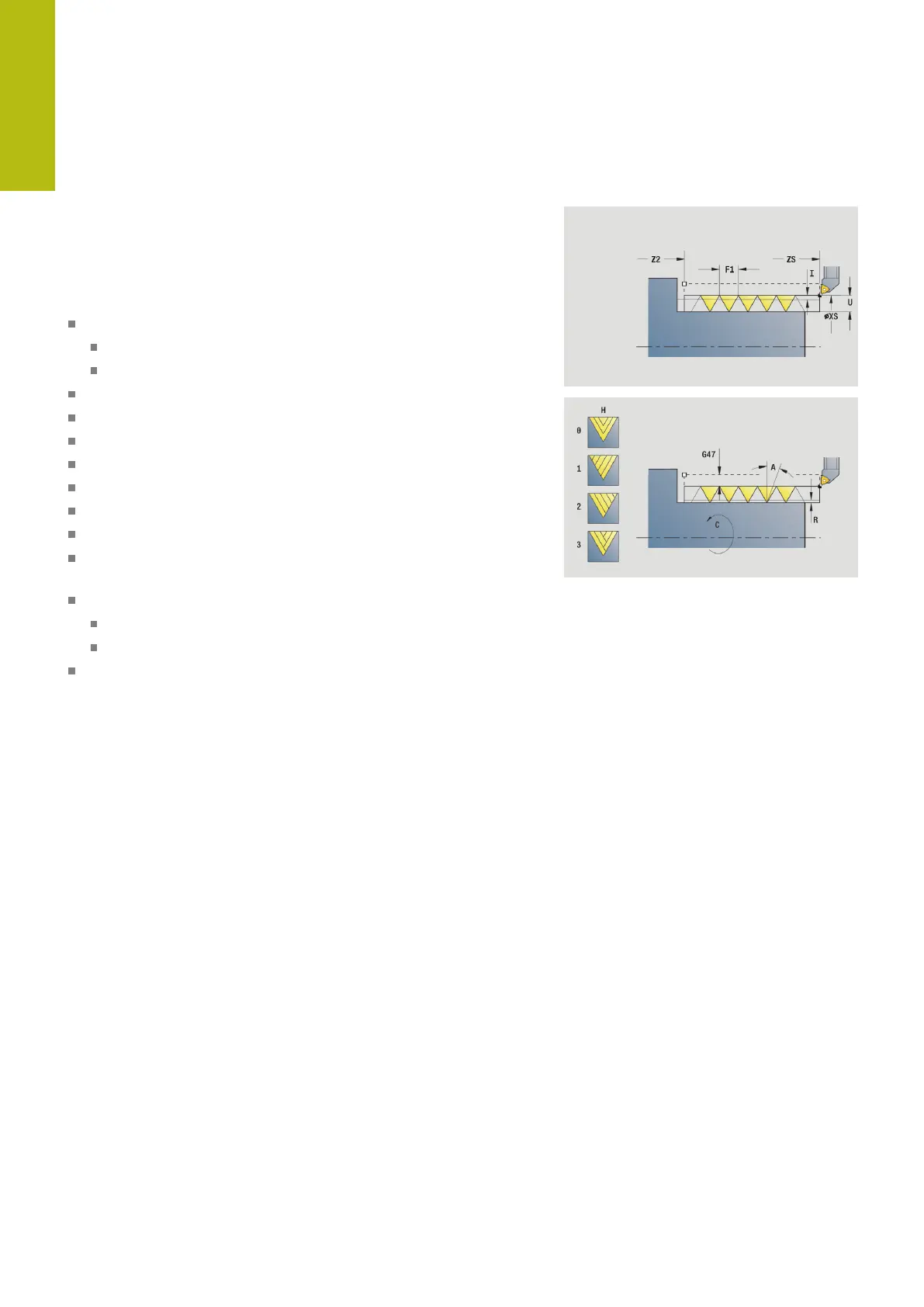

Thread form:
O: Thread location:
0: Internal thread (infeed in +X)
1: External thread (infeed in -X)
APP: Type of approach
XS: Starting diameter
ZS: Starting position Z
Z2: End point thread
F1: Thread pitch
U: Thread depth
I: Max. approach
IC: Number of cuts (only if I is not programmed and Type of
infeed V = 0 or V = 1)
KE: Run-out position:
0: At end
1: At beginning
K: Thread runout length
