Full circle on front/rear face G304

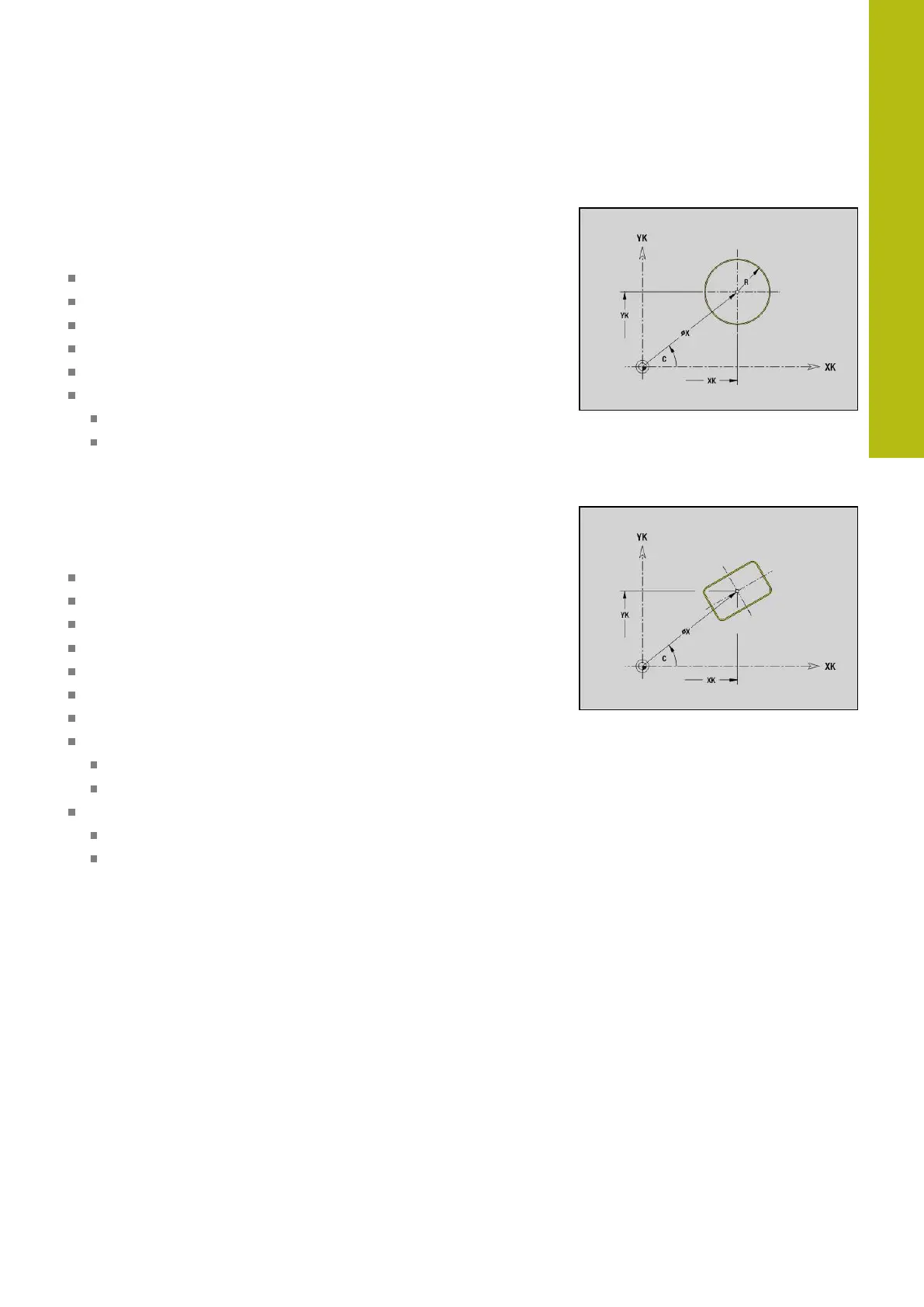

G304 defines a full circle in a contour on the front face/rear face.
Program this figure in conjunction with G840, G845 or G846.
Parameters:
XK: Center (Cartesian)
YK: Center (Cartesian)
X: Diameter – Center (polar)
C: Angle – Center (polar)
R: Radius
P: Depth/Height – depth for pockets, height for islands
P < 0: Pocket
P > 0: Island
Rectangle on front/rear face G305
G305 defines a rectangle in a contour on the front face/rear face.
Program this figure in conjunction with G840, G845 or G846.
Parameters:
XK: Center (Cartesian)
YK: Center (Cartesian)
X: Diameter – Center (polar)
C: Angle – Center (polar)
A: Angle to XK axis (default: 0°)
K: Length
B: Height of rectangle
R: Chamf./round. (default: 0)
R > 0: Radius of rounding arc
R < 0: Chamfer width
P: Depth/Height – depth for pockets, height for islands
P < 0: Pocket
P > 0: Island
