Graphic Functions
DML-1200 w/Axon Embedded Graphic Engine 24/12/2010 _____________________________________________________________________________ 18
2.2.3.3 Z Scale
The
Z Scale
parameter uses two channels to scale the selected 3-D object along the Z axis, either expanding or shrinking it. Use it
when you want to size the object’s thickness.
A DMX value of 32768 (50%) sets the object at its normal size. Values less than 50% shrink the object thickness until it reaches a
point at a value of 0. Values greater then 50% enlarge the object to a maximum thickness at 65535 (100%).
Default DMX Value:
32768 (50%) = Normal Scale
2.2.4 Changing Object Position
You can reposition each 3-D object’s position in 3-D space by moving it along the X, Y and Z axes. The following parameters act on
an individual object. Use these parameters to position 3-D images in relation to each other.
2.2.4.1 X Position
The
X Position
parameter moves your object along the X axis with 16-bit precision.
The midpoint of the 16-bit DMX value range centers the image on the X-axis. Values below the DMX midpoint move the object left,
and values above the DMX midpoint move the object right.
Default DMX Value:
32768 (50%) = object centered in frame
2.2.4.2 Y Position
The
Y Position
parameter moves your object along the Y axis with 16-bit precision.
The midpoint of the 16-bit DMX value range, centers the image on the Y-axis. Values below the DMX midpoint move the object
down, and values above the DMX midpoint move the object up.
Default DMX Value:
32768 (50%) = object centered in frame

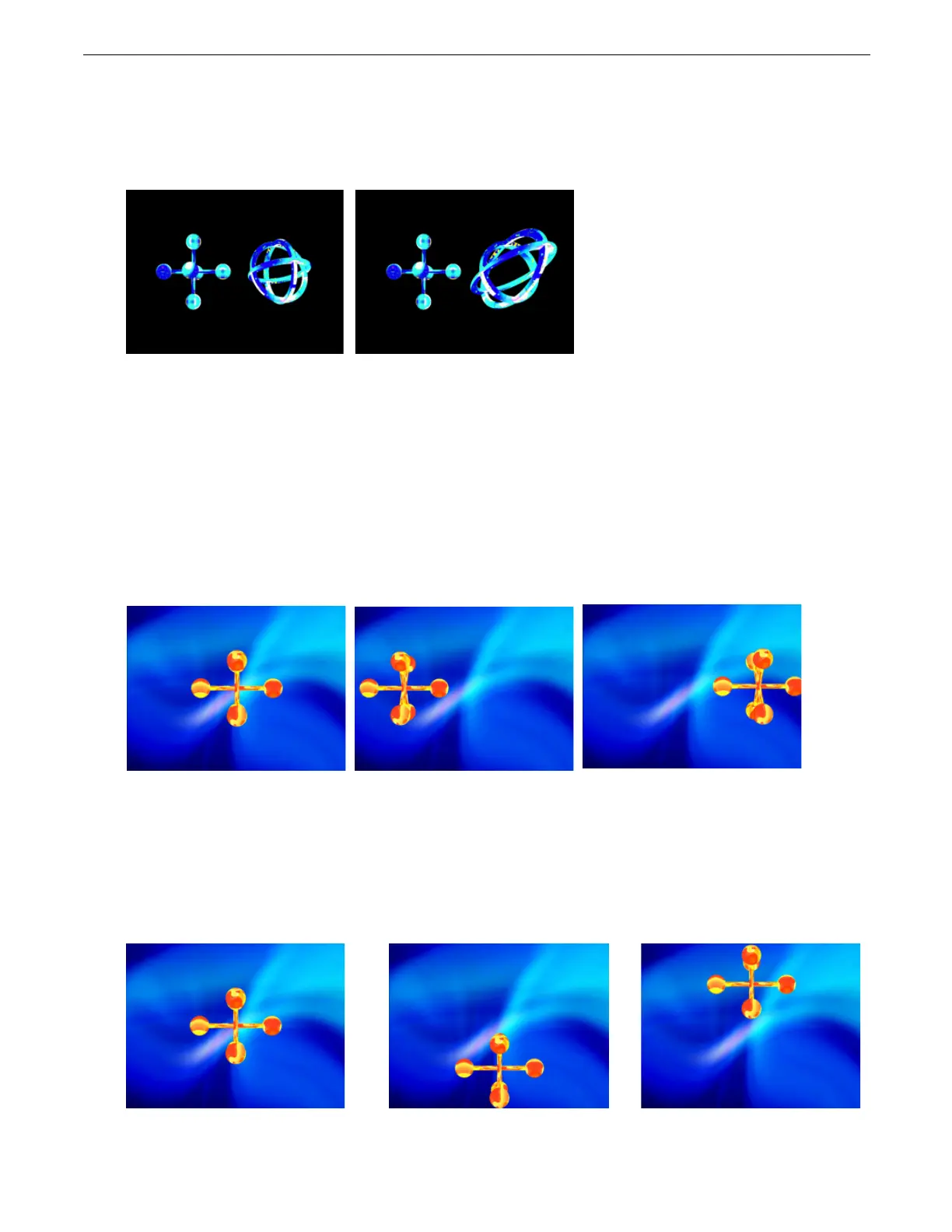

Original Object 1 and Object 2
All Scale DMX values = 32768 (50%)
Object 2 Z-Scale parameter
DMX value = 223 Scaled 7.5 times in Z direction
riginal Object 1 and Object 2
ll Position DMX values = 32768 (50%)
Object 1: X Position DMX value = 33561
Object 1: X Position
DMX value = 32022
Object 1: Y Position
DMX value = 33269
Original Object 1 and Object 2
All Position DMX values = 32768 (50%)
Object 1: Y Position
DMX value = 32255
