87 ______________________________________________________DML-1200 w/Axon Embedded Graphic Engine 24/12/2010
5.2.23 Mattes
Effect Mode parameter DMX value = 144
The Global Effect lets you select from a variety of provided patterns to superimpose over the composite image. Modifier
parameters select the pattern and effects for a matte.

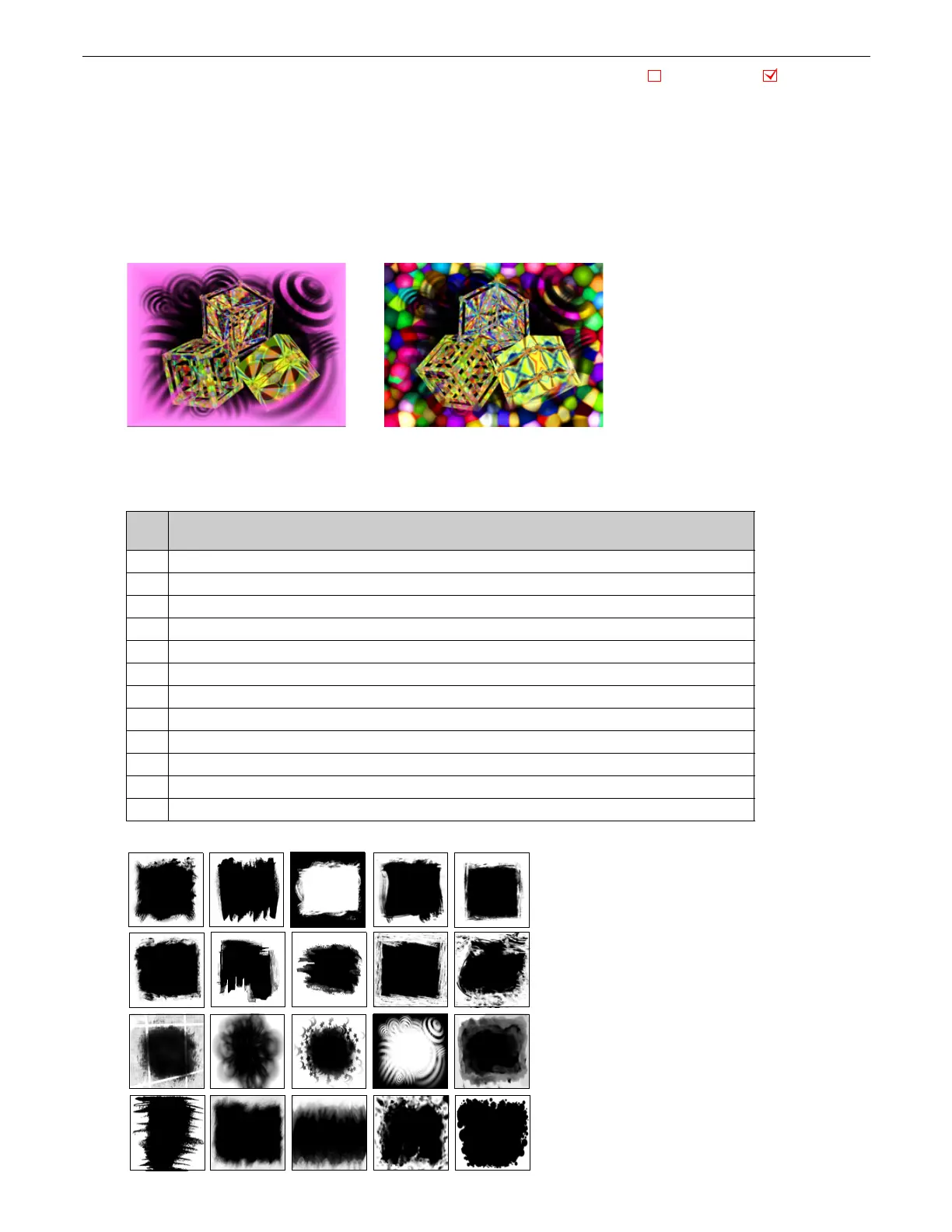

The images below show two examples of the Mattes effect. In the image on the left, the Modifier 2 value selected the matte
pattern. Modifier 1 sets black as transparent. The Modifier 3 value corresponds with a lookup to an internal gradient map to
determine the matte color.
In the example on the right, the same Matte is selected by Modifier 2. This time the Modifier 1 value selects white as transparent
and uses a graphic object as a texture. A Modifier 3 DMX value of 0 designates the Matte texture as Graphic Object 1’s media file
content minus any applied effects.
Modifier 1: This parameter determines transparency and color effects for the selected matte:
Modifier 2: The first 20 DMX values are assigned to the following Matte pattern options:
DMX
value
Modifier 1 Action
0
Black transparent, use matte color
1
Black transparent, inverting matte color
2
White transparent, use matte color
3
White transparent, then invert matte color
4
Black transparent using a Graphic Object media file content as the matte texture
5
White transparent using a Graphic Object media file content as the matte texture
6
Black transparent with grayscale used as alpha
7
White transparent with grayscale used as alpha
8
Black transparent with grayscale not used as alpha
9
White transparent with grayscale not used as alpha
10
Black transparent, with matte color controlled by Modifier 3 as lookup in internal color gradient map
11
Black transparent, with matte color controlled by Modifier 3 as lookup in internal color gradient map and inverted
Object Effect Global Effect
M
odifier parameter 1 DMX = 11
M
odifier parameter 2 DMX = 13
M
odifier parameter 3 DMX = 203
Modifier parameter 1 DMX = 5
Modifier parameter 2 DMX = 13
Modifier parameter 3 DMX = 0
