2.3.3.17 Pan and Scan
Visual Mode parameter DMX value = 255
This option Zooms into a still image and then, by changing position, you can pan
across the image horizontally and vertically. It only functions on image sizes greater
than 1024 x 1024 in at least one direction.
Modifier 1: Adjusts the horizontal pan position from 0=left edge to 255 (100%) = right
edge of the image. The default DMX value of 128 (50%) = no adjustment.
Modifier 2: Adjusts the vertical pan position from 0 = bottom edge to 255 (100%) =
top edge of the image. The default DMX value of 128 (50%) = no adjustment.
2.3.3.18 Pixelate
Visual Mode parameter DMX value = 15
This options divides the image into rectangles using the center pixel color of each as its color. You can control the number of
divisions.
Modifier 1: Controls the number of divisions from a single cell at a DMX value = 0 to the maximum number of cells at a DMX value
= 255 (100%). Since each division is a single color, fewer, larger boxes result in reduced color variation.
Modifier 2: Not Used

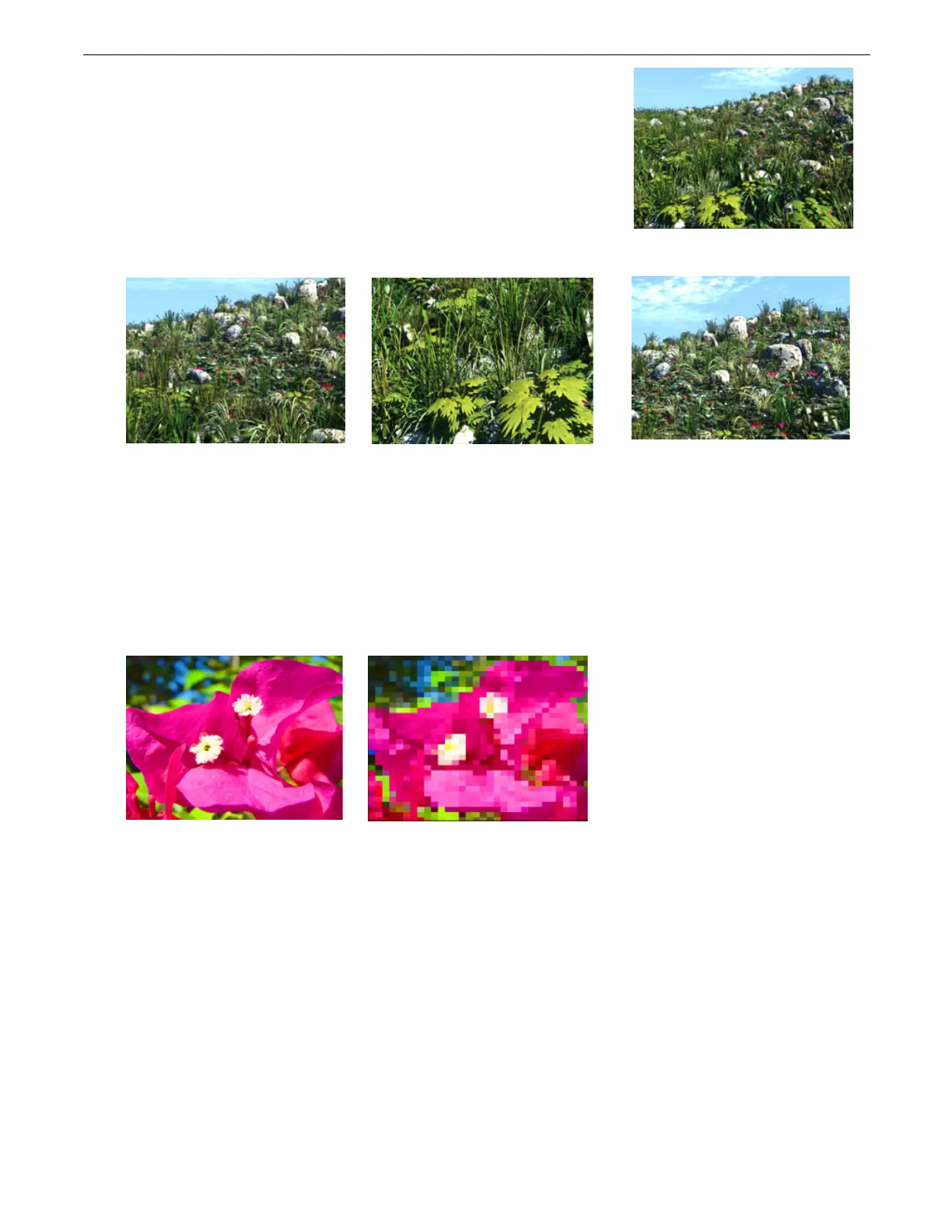

Original Content
Visual Mode Parameter DMX value = 255
Visual Mode Modifier 1 DMX value = 0
Visual Mode Modifier 2 DMX value = 0
Visual Mode Modifier 1 DMX value = 255
Visual Mode Modifier 2 DMX value = 255
Visual Mode Modifier1 DMX value=128
Visual Mode Modifier 2 DMX value = 128
Original Content
Visual Mode Parameter DMX value = 15
Visual Mode Modifier 1 DMX value = 128
