High End Systems DML-1200 - UV to Transparent; Yxy Luminance Scaling

Effect Mode Options Descriptions
73 ______________________________________________________DML-1200 w/Axon Embedded Graphic Engine 24/12/2010
5.1.41.3 UV to Transparent
Effect Mode parameter DMX value = 85
Maps a selected color coordinate to a YUV color space and turns everything else transparent.
Modifier 1: Adjusts the U color component from 0 = no adjustment to 255 (100%) = maximum.
Modifier 2: Adjusts the V color component from 0 = no adjustment to 255 (100%) = maximum.
Modifier 3: Adjusts the color tolerance from 0 = minimum to 255 (100%) = maximum.
5.1.42 Yxy Luminance Scaling
Effect Mode parameter DMX value = 101
Mapping the image to a Luminance Chrominance color space allows brightness adjustment without changing image color.
Modifier 1: Scales luminance. Values below the midpoint decrease luminance from 127 to 0 = black. Settings above the midpoint
increase luminance from 128 to 255 (100%) = white. A DMX value of 64 allows you to view the image at a minimum luminance.
Modifier 2: Scales the x chrominance component. The default DMX value of 128 (50%) = no adjustment. Values below the midpoint
scale the x chrominance component down as you approach 0 = minimum. Values above the midpoint up to a maximum. at a value
of 255 (100%)
Modifier 3: Scales the y chrominance component. The default DMX value of 128 (50%) = no adjustment. Values below the midpoint
scale the y chrominance component down as you approach 0 = minimum. Values above the midpoint scale the y chrominance
component up to a maximum at a value of 255 (100%).

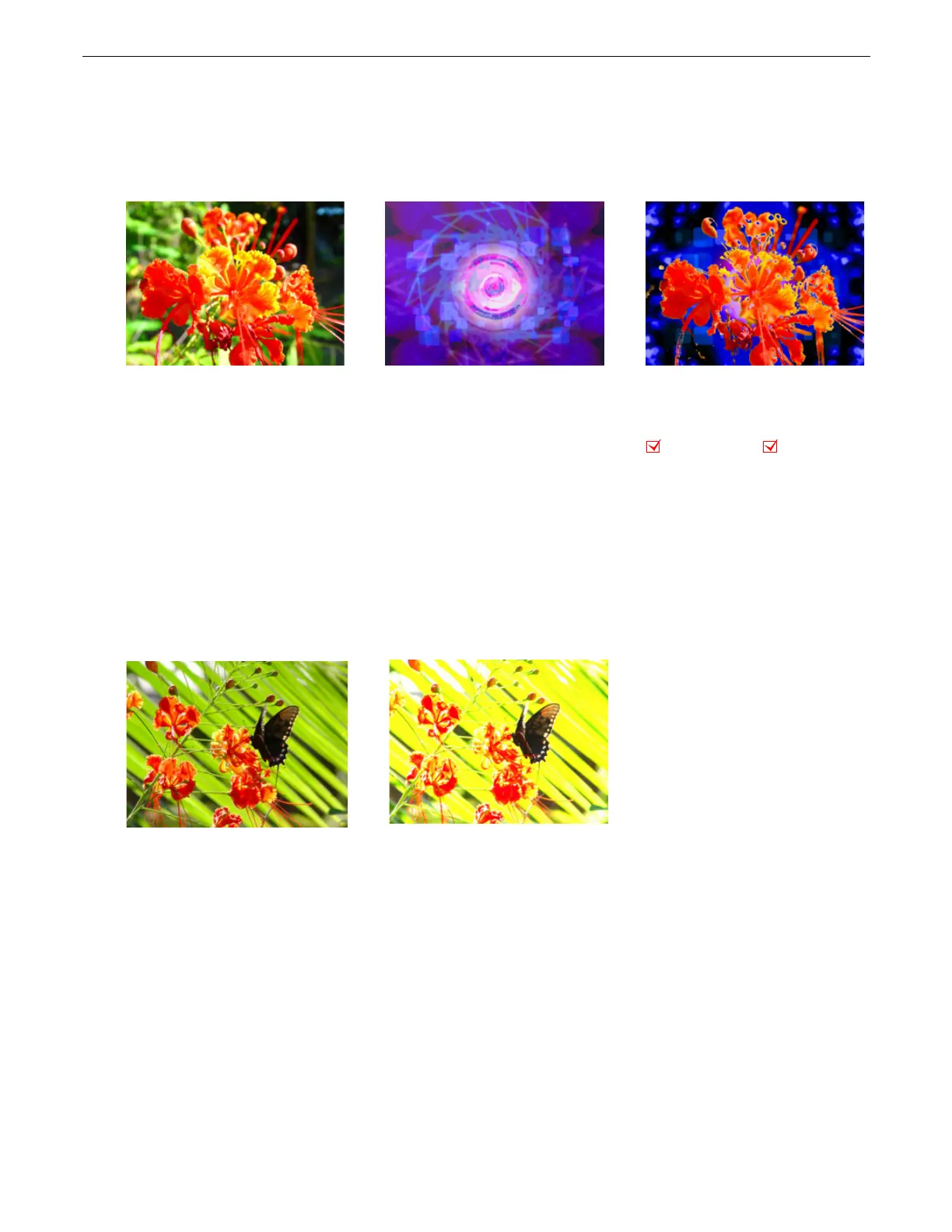

Graphic Object 1 Content Graphic Object 2 Background Content Modifier 1 parameter DMX = 0
Modifier 2 parameter DMX = 229
Modifier 3 parameter DMX = 101
Object Effect Global Effect
Original Content
Modifier 1 parameter DMX = 250
Modifier 2 parameter DMX = 128
Modifier 3 parameter DMX = 128
