93 ______________________________________________________DML-1200 w/Axon Embedded Graphic Engine 24/12/2010

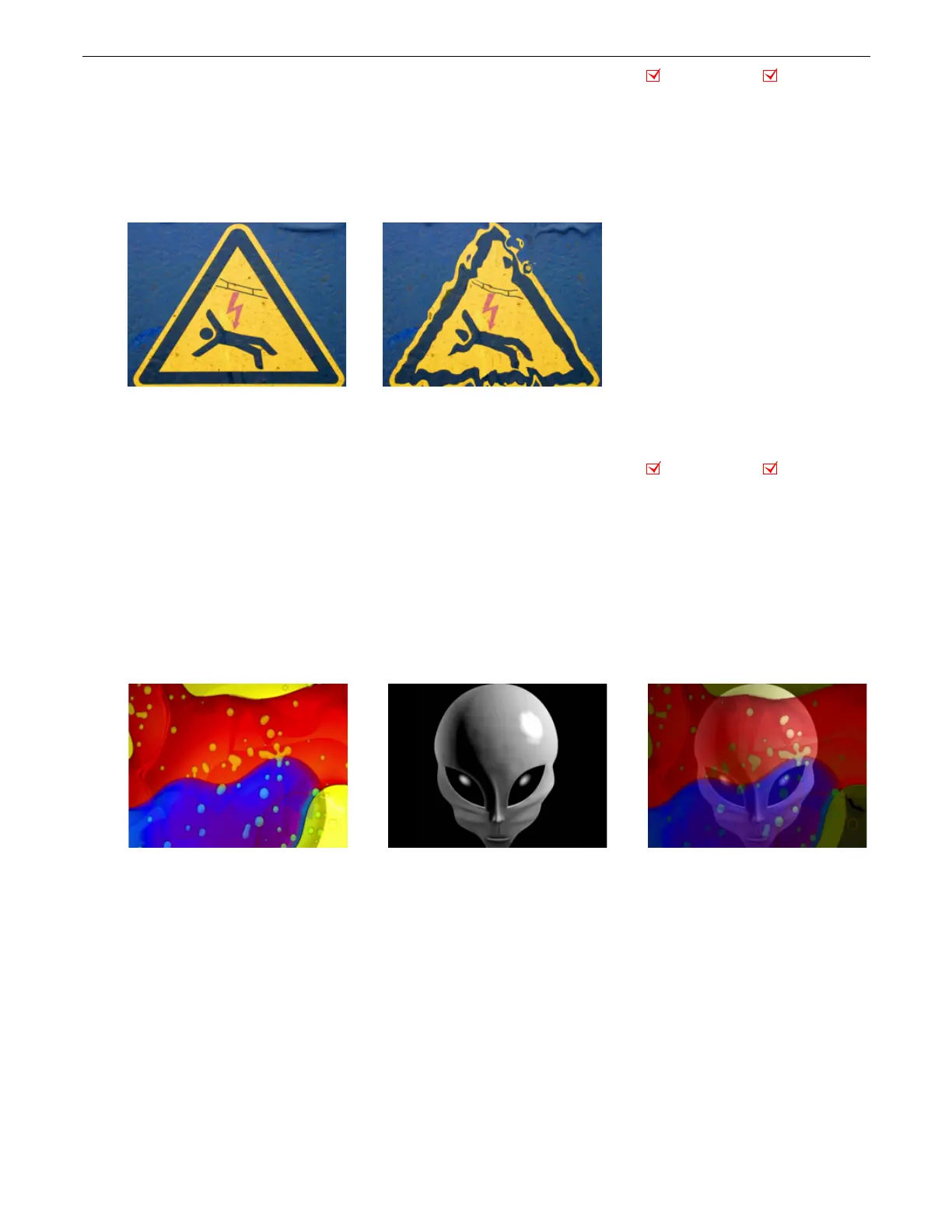

5.2.31 Raindrop
Effects Mode parameter DMX value = 46
This effect simulates a raindrop distortion on a surface.
Modifier 1: Controls the drop size from 0 = no drop to 255 (100%) = maximum size.
Modifier 2: Sets the random number generator seed number. This lets you create a repeatable random sequence that will
synchronize correctly when using the Collage Generator effect, see
page 70 .
Modifier 3: Adjusts the raindrop creation rate from 0 = no adjustment to 255 (100%) = maximum rate.
5.2.32 Scene Change
Effect Mode parameter DMX value = 100
This effect creates transparency in video content based on the change in pixel color from one frame to the next. Modifiers 1 and 2
use the color difference between the current frame and the previous frame to derive an alpha value for the output frame. Modifier
3 scales the color of the current frame to provide the color of the output frame.
Modifier 1: Scales RGB values of the previous frame; from 0 = maximum to 255 = minimum scaling.
Modifier 2: Derives an alpha value from color difference between current frame and the result of modifier 1. DMX 0 to 127 act to
make darker colors transparent, with DMX 0 resulting in maximum transparency. DMX values 128 to 255 act to make bright colors
transparent, with DMX 255 = maximum transparency.
Modifier 3: Scales the RGB values of the current frame to provide the output RGB values. DMX 0 provides the brightest output RGB
values. DMX 255 = the darkest output RGB values.
Object Effect Global Effect
Original Content Modifier parameter 1 DMX value = 255
Modifier parameter 2 DMX value = 255
Modifier parameter 3 DMX value = 185
Object Effect Global Effect
Modifier parameter 1 DMX value = 0
Modifier parameter 2 DMX value = 255
Modifier parameter 3 DMX value = 185
Object 2 Original ContentObject 1 Original Content
