Effect Mode Options Descriptions
DML-1200 w/Axon Embedded Graphic Engine 24/12/2010 _____________________________________________________________________________ 68
5.1.31 RGB Swap to BRG
Effect Mode
parameter DMX value = 8
This effect allows you to swap colors. All red values become blue, all green values become red and all blue values become green.
Modifier 1:
Transitions red color component to blue from 0 = no color change to 255 (100%) = blue
Modifier 2:
Transitions green color component to red from 0 = no color change to 255 (100%) = red
Modifier 3:
Transitions blue color component to green from 0 = no color change to 255 (100%) = green
5.1.32 RGB Swap to GBR
Effect Mode
parameter DMX value = 7
This effect allows you to swap colors. All red values become green, all green values become blue and all blue values become red.
Modifier 1:
Transitions red color component to green from 0 = no color change to 255 (100%) = green
Modifier 2:
Transitions green color component to blue from 0 = no color change to 255 (100%) = blue
Modifier 3:
Transitions blue color component to red from 0 = no color change to 255 (100%) = red
5.1.33 RGB Swap to GRB
Effect Mode
parameter DMX value = 43
This effect allows you to swap colors. All red values become green and all green values become blue. Blue values are unaffected.
Modifier 1:
Transitions red color component to green from 0 = no color change to 255 (100%) = green
Modifier 2:
Transitions green color component to red from 0 = no color change to 255 (100%) = blue
Modifier 3:
No change to blue color component

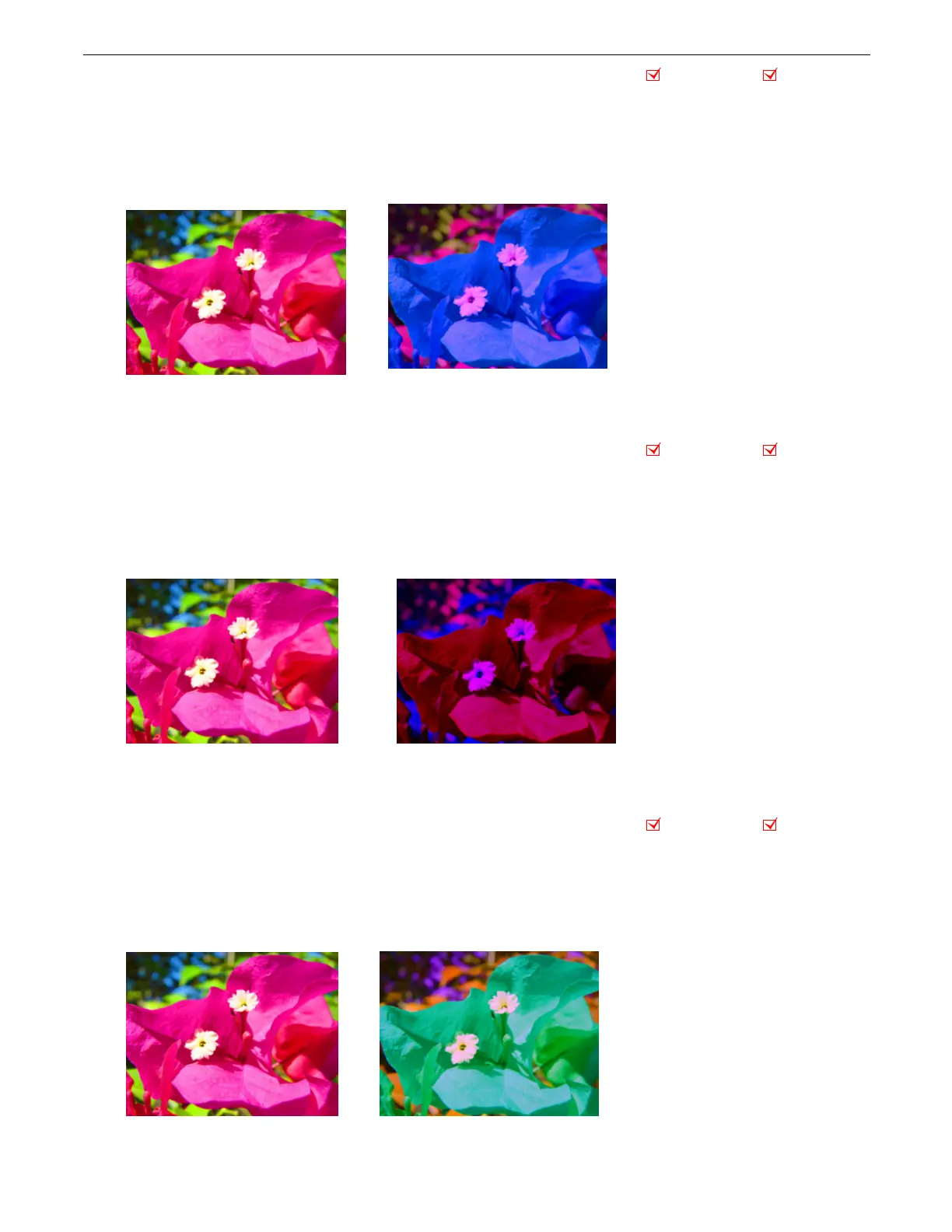

Object Effect Global Effect
Original Content
Modifier 1 parameter DMX = 255
Modifier 2 parameter DMX = 192
Modifier 3 parameter DMX = 255
Object Effect Global Effect
Original Content Modifier 1 parameter DMX = 255
Modifier 2 parameter DMX = 192
Modifier 3 parameter DMX = 255
Object Effect Global Effect
Original Content
Modifier 1 parameter DMX = 255
Modifier 2 parameter DMX = 192
Modifier 3 parameter DMX = 255
