2.3.3.9 Film Roll
Visual Mode parameter DMX value = 14
This option scrolls the media file texture horizontally or vertically independent from the 3-D object it overlays, and allows you to
control the scrolling speed.
Modifier 1: The default DMX value of 128 (50%) = no adjustment. Values below the midpoint scroll left, increasing in speed as you
approach 0. Values above the midpoint scroll right, increasing in speed to 255 (100%).
Modifier 2: The default DMX value of 128 (50%) = no adjustment. Values below the midpoint scroll down, increasing in speed as
you approach 0. Values above the midpoint scroll up, increasing in speed to 255 (100%).
2.3.3.10 Fire Gradient
Visual Mode Parameter DMX value = 8
This option maps image colors to a Red-to-Yellow gradient creating a fiery effect.
Modifier 1: Maps the image color values from no adjustment at a value of 0 to all red to yellow tones at a value of 255 (100%).
Modifier 2: Not Used
2.3.3.11 Flip
Visual Mode parameter DMX value = 24
This option flips the media file texture horizontally or vertically independent from the 3-D object it overlays.
Modifier 1: DMX values from 0-127 have no effect. DMX values of 128 (50%) to = 255 (100%) flips the image horizontally.
Modifier 2: DMX values from 0-127 have no effect. DMX values of 128 (50%) to = 255 (100%) flips the image vertically.

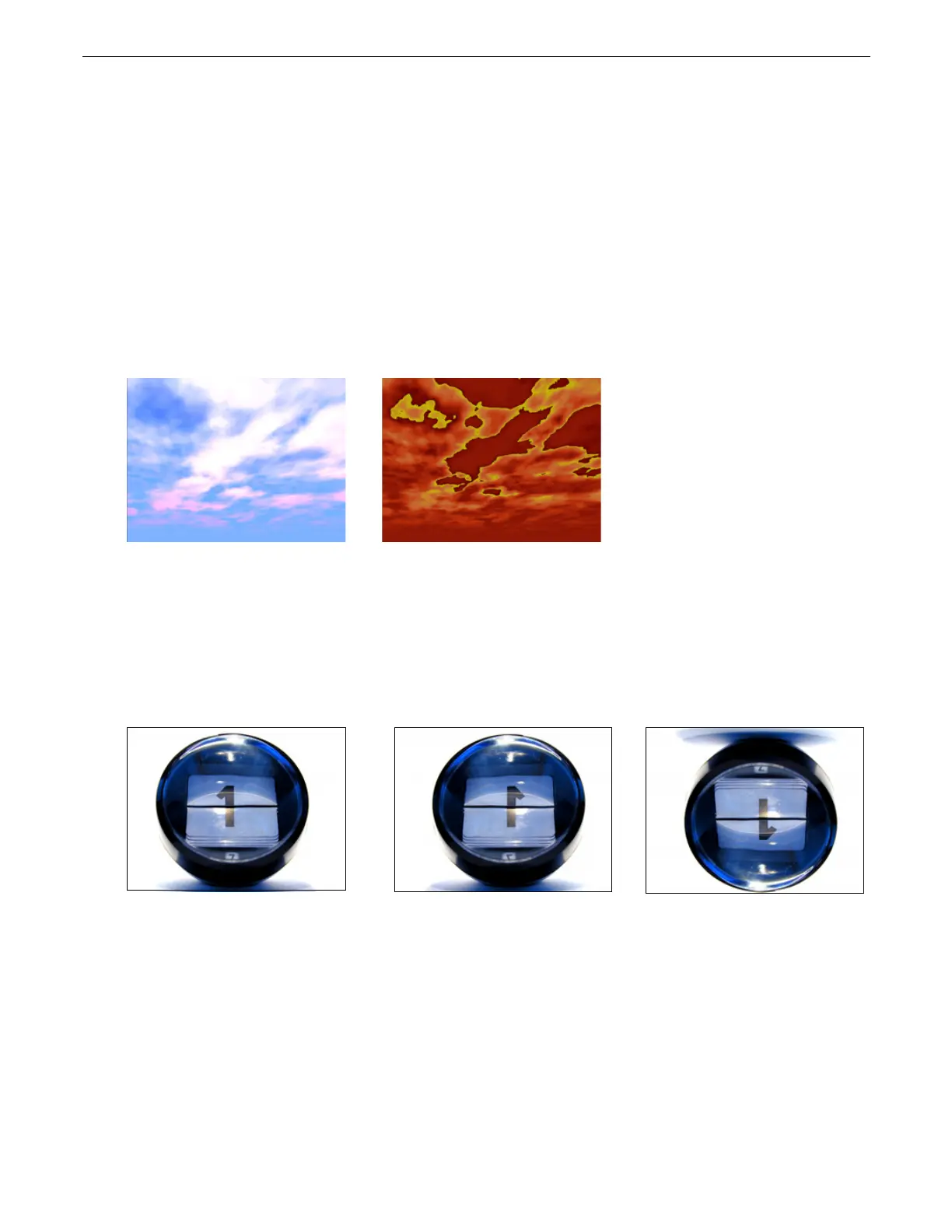

Original Content
Visual Mode Parameter DMX value = 8
Visual Mode Modifier
1 DMX value=255 (100%)
Original content
Modifier 1 parameter DMX = 128
Modifier 2 parameter DMX = 0
Modifier 1 parameter DMX = 128
Modifier 2 parameter DMX = 128
