2.3.3.24 Zoom Blur
Visual Mode Parameter DMX value = 20
Zooms into a position on the image with a multi-image blurring effect. You can control the position of the zoom center on the
image.
Modifier 1: Selects the horizontal center of the zoom point.
Modifier 2: Selects the vertical center of the zoom point.
2.3.4 Effect Mode Parameters
Three Effect Mode parameters are available for each individual 3-D object, each with three Modifier parameters. All three Effect
parameters have an identical list of color and visual effect options. This lets you apply a multi-effect combination to the selected
3-D object.
The following table describes the interaction between an Effect Mode parameter and its three associated Modifier parameters. You
can find a detailed description and example of each option in
Effect Mode Options Descriptions on page 49.
Modifier channels for Effect Mode 1 are labeled as CMY in the Wholehog system so you can also make use of the
color picker, HSI, and other Wholehog functions. Use the CMY parameter controls to adjust the three Effect Mode
1 Modifier parameters for both the Global and Graphic fixture types. The default for Effect Mode 1 is set to CMY1
as well. Effect Mode 2 and 3 Modifier channels are labeled Mod 1, Mod 2, and Mod 3.
Not all modes combine effectively. For example, you cannot glow a wobbulating object very well.
DMX
value
Name/Description
Adjustments
Modifier 1 Modifier 2 Modifier 3
0
Safe (no effects selection)
NA NA NA
1
CMY (RGB invert)
Cyan Magenta Yellow
2
CMY Add, All Pixels
Cyan Magenta Yellow
3
CMY Add, All Non-black Pixels
Cyan Magenta Yellow
4
RGB Add, All Pixels
Red Green Blue
5
RGB Add 2, All Pixels
Red Green Blue
6
RGB Add, All Non-black Pixels
Red Green Blue
7
RGB Swap to GBR
Red to Green Green to Blue Blue to Red
8
RGB Swap to BRG
Red to Blue Green to Red Blue to Green
9
Solarize 1 inverts a color value < DMX value
Red Green Blue
10
Solarize 2 inverts a color if value > DMX value
Red Green Blue
11
Solarize 3 sets color to 0 if value < DMX value
Red Green Blue
12
Solarize 4 sets color to 0 if value > DMX value
Red Green Blue
13
DotP and Resample
Red Green Blue
14
Color Cycle cycles colors with DMX value controlling cycle
speed.
Red Green Blue
15
All or Nothing sets color values > mod value = 255 and all other
color values = 0
Red Green Blue
16
Solid color RGB
Red Green Blue

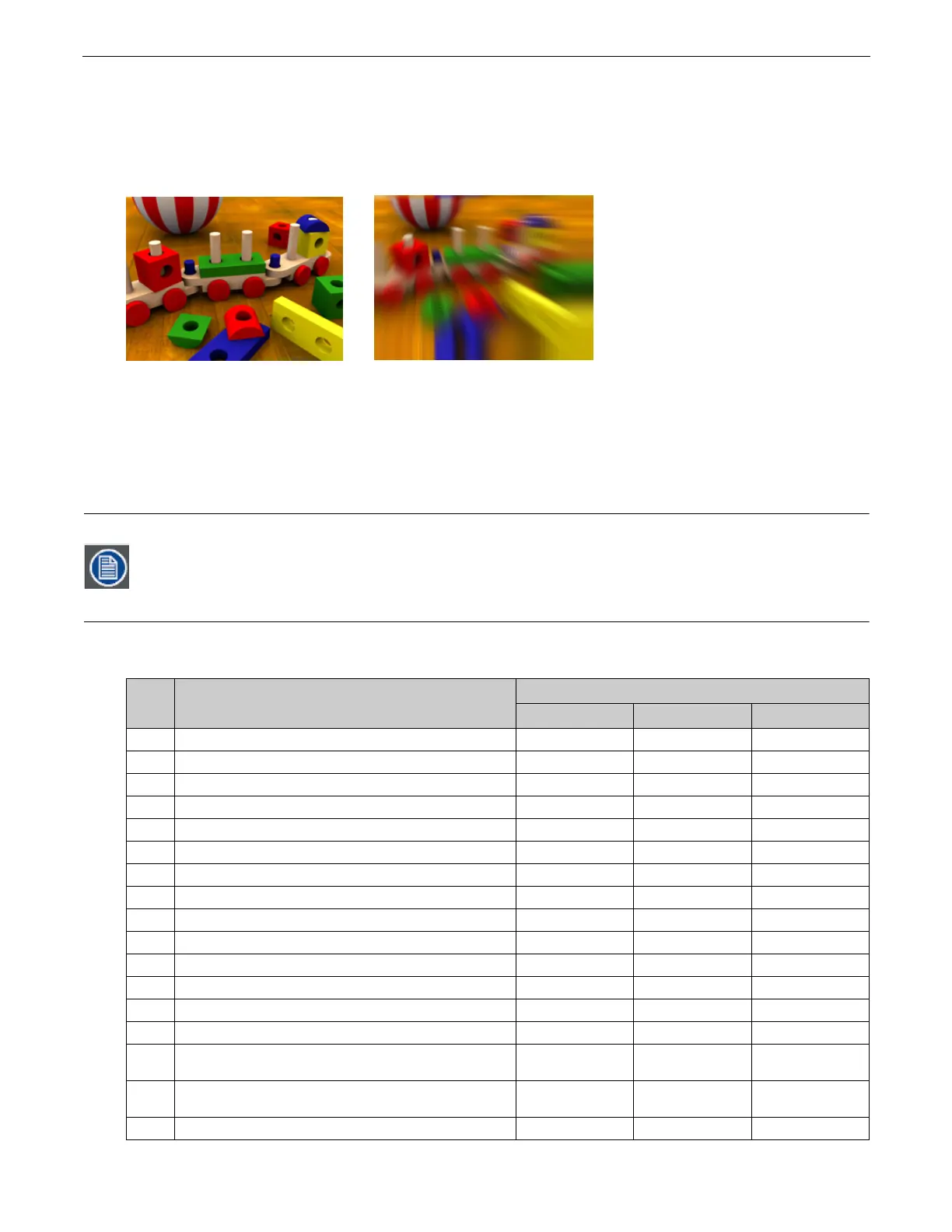

Original Content
Visual Mode Parameter DMX value = 20
Visual Mode Modifier 1DMXvalue=158
Visual Mode Modifier 2DMXvalue=168
