High End Systems DML-1200 - Geometric Effect Options; Cartoon Edge; Chroma Shift

Effect Mode Options Descriptions
DML-1200 w/Axon Embedded Graphic Engine 24/12/2010 _____________________________________________________________________________ 74

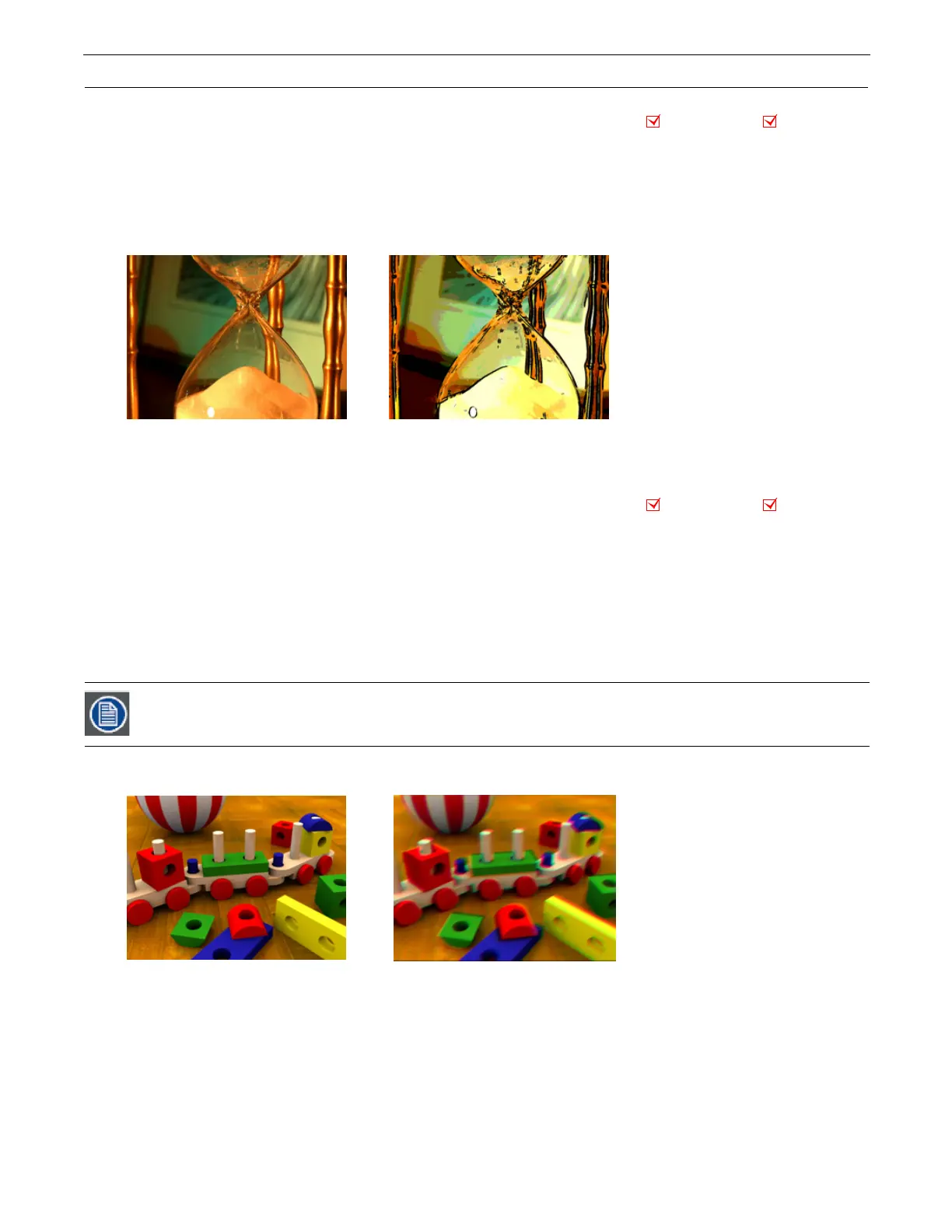

5.2 Geometric Effect Options
5.2.1 Cartoon Edge
Effect Mode parameter DMX value = 38
Outlines the edges of image components to create a rendered effect.
Modifier 1: Adjusts Color reduction from 0= no adjustment to 255 (100%) = maximum.
Modifier 2: Adjusts contrast enhancement from 0= no adjustment to 255 (100%) = maximum.
Modifier 3: Adjusts ion sensitivity from 0= no adjustment to 255 (100%) = maximum adjustment.
5.2.2 Chroma Shift
Effect Mode parameter DMX value = 60
This effect shifts the red, blue, and green component colors in an image. You can offset color components vertically and or
horizontally.
Modifier 1: The default DMX value of 128 (50%) = no adjustment. Values below the midpoint shift the color components right to a
maximum at a value of 0. Values above the midpoint shift the color components left to a maximum at a value of 255 (100%).
Modifier 2: The default DMX value of 128 (50%) = no adjustment. Values below the midpoint shift the color components down to a
maximum at a value of 0. Values above the midpoint shift the color components up to a maximum at a value of 255 (100%).
Modifier 3: Not Used
This effect is also available as a Visual Mode adjusted with 2 Modifier parameters, (see Chroma Shift on page 17).
Object Effect Global Effect
Original Content Modifier 1 parameter DMX value = 255
Modifier 2 parameter DMX value = 82
Modifier 2 parameter DMX value = 115
Object Effect Global Effect
Original Content
Modifier 1 parameter DMX value = 105
Modifier 2 parameter DMX value = 148
Modifier 2 parameter DMX value = 0
