High End Systems DML-1200 - Fuzzifier; Gaussian Blur

Effect Mode Options Descriptions
83 ______________________________________________________DML-1200 w/Axon Embedded Graphic Engine 24/12/2010
5.2.15 Fuzzifier
Effect Mode parameter DMX value = 57
This effect offsets multiple images of the media file texture to blur the image, and lets you to control image scaling at the same
time.
Modifier 1: The default DMX value of 0 = no adjustment. Increasing DMX values blur the image horizontally to a maximum at a DMX
value of 255 (100%).
Modifier 2: The default DMX value of 0 = no adjustment. Increasing DMX values blur the image vertically to a maximum at a DMX
value of 255 (100%).
Modifier 3: Adjusts the decay level of the blurred edge from 0 = no adjustment to maximum full decay at 255.
5.2.16 Gaussian Blur
Effect Mode parameter DMX value = 81
More precise than Fuzzifier effect, this effect creates a true blur effect utilizing a gaussian curve.
Modifiers 1 and Modifier 2 combine to create the effect. When Modifiers 1 and 2 both have a value >0, there is no Blur. Increasing
Modifier 1 and Modifier 2 values increases the sample distance and number of filter passes.
Modifier 3: Applies a range of curve shapes from a DMX value = 0 through 255 (100%).
This effect is also available as a Visual Mode adjusted with 2 Modifier parameters, (see Fuzzifier on page 78).

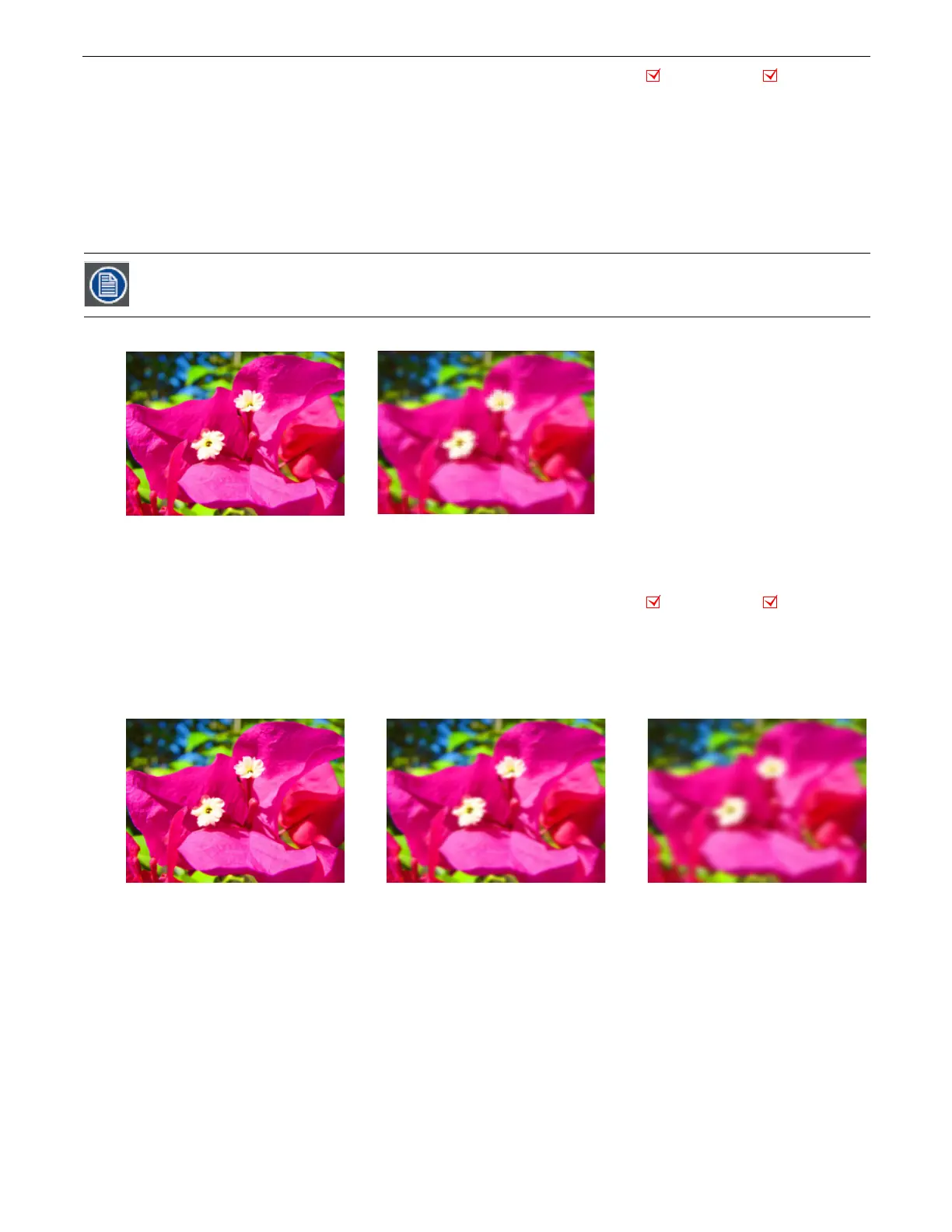

Object Effect Global Effect
Original Content
Modifier 1 parameter DMX =255 (100%)
Modifier 2 parameter DMX =255 (100%)
Modifier 3 parameter DMX = 0
Object Effect Global Effect
Original Content
Modifier 1 parameter DMX = 128,
Modifier 2 parameter DMX = 128
Modifier 3 parameter DMX = 128
Modifier 1 parameter DMX = 255,
Modifier 2 parameter DMX = 255
Modifier 3 parameter DMX = 255
