5.1.28 RGB Invert and Swap to GBR
Effect Mode parameter DMX value = 18
This effect swaps the color values from RGB to an inverted GBR color model.
Modifier 1: Transitions the red component from no adjustment at a DMX value = 0 to magenta at a value of 255 (100%)
Modifier 2: Transitions the green component from no adjustment at a DMX value = 0 to yellow at a value of 255 (100%)
Modifier 3: Transitions the blue component from no adjustment at DMX value = 0 to cyan at a value = 255 (100%)
5.1.29 RGB Scale
Effect Mode parameter DMX value = 47
Reduce and increase color components in the image as a part of the overall color range.
Modifier 1: Scales Red in the Media file. A DMX Value of 128 = no adjustment. DMX values below 128 (50%) reduce color value.
DMX values over 128 increase color value.
Modifier 2: Scales Green in the Media file. A DMX Value of 128 = no adjustment. DMX values below 128 (50%) reduce color value.
DMX values over 128 increase color value.
Modifier 3: Scales Blue in the Media file. A DMX Value of 128 = no adjustment. DMX values below 128 (50%) reduce color value.
DMX values over 128 increase color value.
5.1.30 RGB Swap to BGR
Effect Mode parameter DMX value = 41
This effect allows you to swap colors. All red values become green and all blue values become red. Green values are unaffected.
Modifier 1: Transitions red color component to blue from 0 = no color change to 255 (100%) = green
Modifier 2: No change to green color component
Modifier 3: Transitions blue color component to green from 0 = no color change to 255 (100%) = red
The maximum of Mod1, Mod2 and Mod3 sets overall color range.

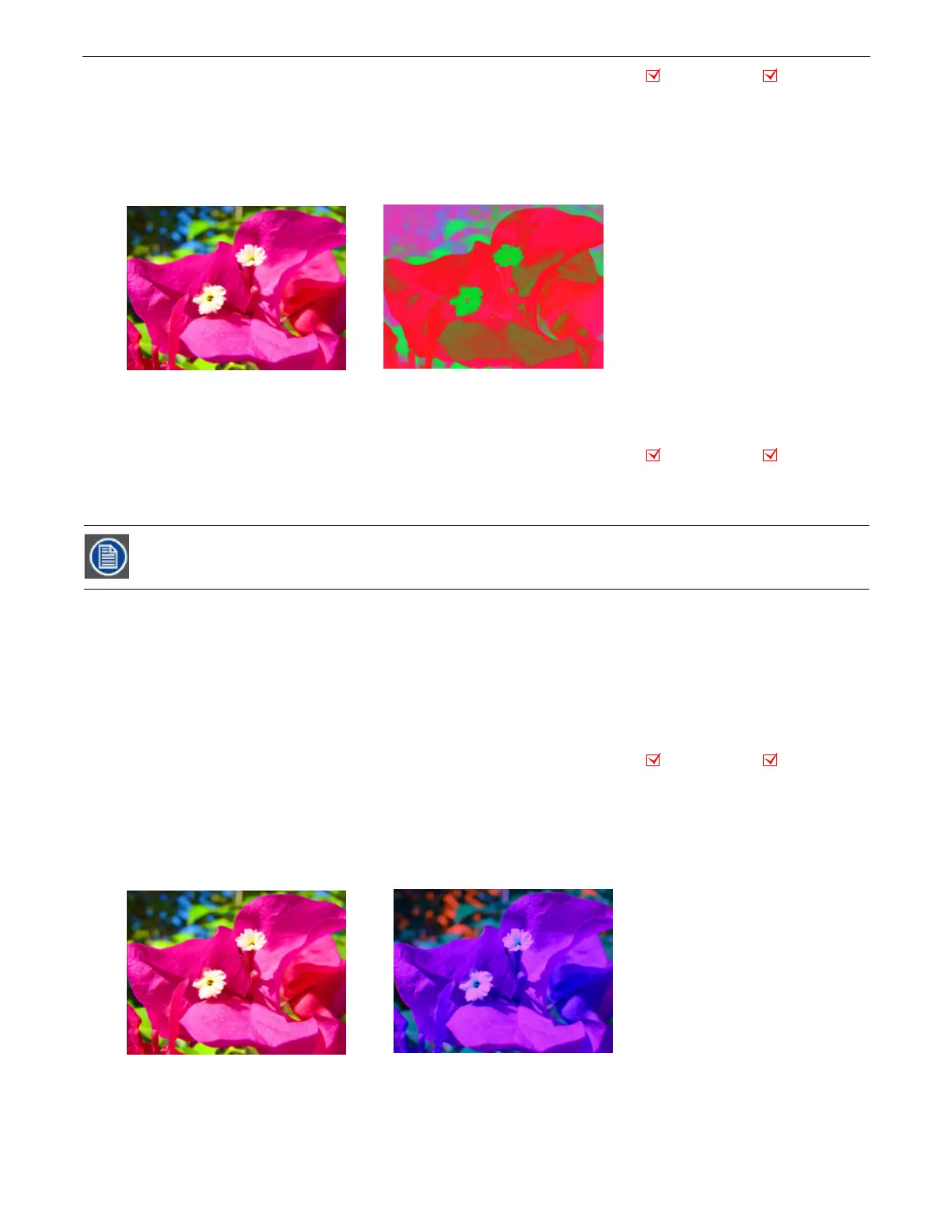

Object Effect Global Effect
Original Content
Modifier 1 parameter DMX = 255
Modifier 2 parameter DMX = 34
Modifier 3 parameter DMX = 203
Object Effect Global Effect
Object Effect Global Effect
Original Content
Modifier 1 parameter DMX = 255
Modifier 2 parameter DMX = 192
Modifier 3 parameter DMX = 255
