5.1.19.3 HS to Transparent
Effect Mode parameter DMX value = 88
Maps a selected color coordinate to a HSI color space and turns everything else transparent and shows graphic objects “behind” it.
Modifier 1: Adjusts the H ue color component from 0 = no adjustment to 255 (100%) = maximum hue.
Modifier 2: Adjusts the S aturation color component from 0 = no adjustment to 255 (100%) = maximum saturation.
Modifier 3: Adjusts the color tolerance from 0 = minimum to 255 (100%) = maximum.
5.1.20 Intensity Key
Effect Mode parameter DMX value = 45
This effect turns pixels of a selected intensity transparent or applies the reverse effect.
Modifier 1: Selects intensity from a DMX value of 0 = no intensity to 255 (100%) = full intensity.
Modifier 2: Selects intensity bandwidth from a DMX value of 0 = narrowest bandwidth to 255 = widest bandwidth.
Modifier 3: Turns selected intensity range transparent from 0 = no change to 128 = fully transparent. DMX values above the
midpoint of the range change all intensities outside of the selected range transparent from 129 = no transparency to 255 = full
reverse transparency.

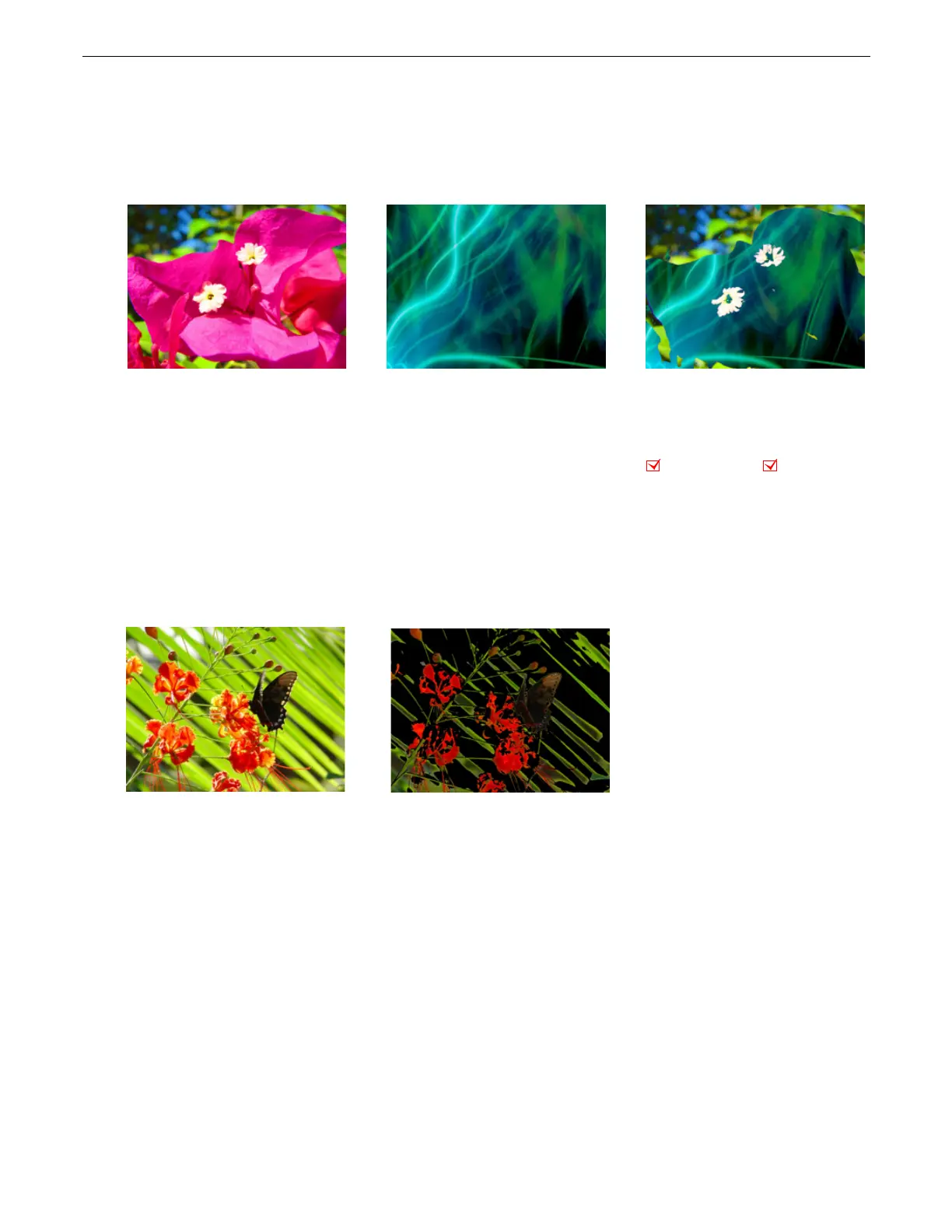

Object 1 Content
Object 2 Background Content Effect Mode Parameter = 88
Modifier 1 parameter DMX = 0
Modifier 2 parameter DMX = 38
Modifier 3 parameter DMX = 255
Object Effect Global Effect
Original Content
Modifier 1 parameter DMX = 30
Modifier 2 parameter DMX = 75
Modifier 3 parameter DMX = 168
