Effect Mode Options Descriptions
DML-1200 w/Axon Embedded Graphic Engine 24/12/2010 _____________________________________________________________________________ 72
5.1.41 UV Effect Mode Options
These Object and Global effects map the media file to an YUV color space. This makes it easier to isolate a specific feature in an
image such as an individual flower in a landscape.
5.1.41.1 UV to Gray
Effect Mode parameter DMX value = 84
Maps a selected color coordinate to a YUV color space and turns everything else gray.
Modifier 1: Adjusts the U color component from 0 = no adjustment to 255 (100%) = maximum.
Modifier 2: Adjusts the V color component from 0 = no adjustment to 255 (100%) = maximum.
Modifier 3: Adjusts the color tolerance from 0 = minimum to 255 (100%) = maximum.
5.1.41.2 UV Selected to Transparent
Effect Mode parameter DMX value = 86
Maps a selected color coordinate to a YUV color space and turns it transparent. Everything else is unchanged.
Modifier 1: Adjusts the U color component from 0 = no adjustment to 255 (100%) = maximum.
Modifier 2: Adjusts the V color component from 0 = no adjustment to 255 (100%) = maximum.
Modifier 3: Adjusts the color tolerance from 0 = minimum to 255 (100%) = maximum.

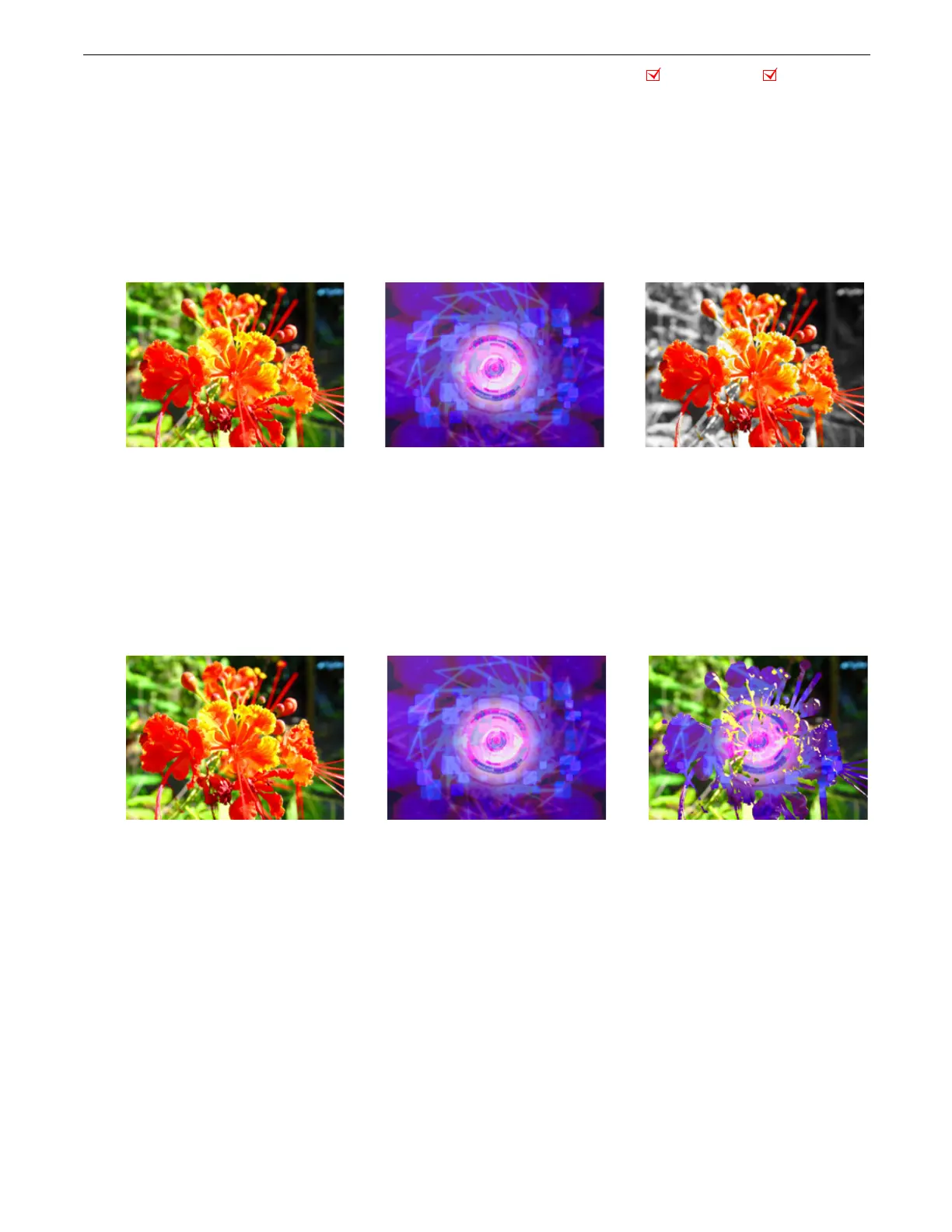

Object Effect Global Effect
Graphic Object 1 Content Graphic Object 2 Background Content Modifier 1 parameter DMX = 0
Modifier 2 parameter DMX = 229
Modifier 3 parameter DMX = 101
Graphic Object 1 Content Graphic Object 2 Background Content Modifier 1 parameter DMX = 0
Modifier 2 parameter DMX = 229
Modifier 3 parameter DMX = 101
