5.1.6 CMY Add Non-black Pixels
Effect Mode parameter DMX value = 3
This effect increases color values across all pixels except black pixels.
Modifier 1: Increases cyan color component from 0 = no adjustment to 255 (100%) = maximum cyan saturation.
Modifier 2: Increases magenta color component from 0 = no adjustment to 255 (100%) = maximum magenta saturation.
Modifier 3: Increases yellow color component from 0 = no adjustment to 255 (100%) = maximum yellow saturation.
5.1.7 Color Cycle
Effect Mode parameter DMX value = 14
The image’s color components cycle through RGB, black, and white. When no Red Green or Blue is added, image fades from full
white, to normal image, to black. When RGB/CMY is added the image fades from the RGB value, to the image with color added.
Modifier 1: Increases red color component from 0 = no adjustment to 255 (100%) = maximum red saturation.
Modifier 2: Increases green color component from 0 = no adjustment to 255 (100%) = maximum green saturation.
Modifier 3: Increases blue color component from 0 = no adjustment to 255 (100%) = maximum blue saturation.
5.1.8 Color DeConverge
Effect Mode parameter DMX value = 39
This effect separates the different color components of an image and offsets them from the original image position.
Modifier 1: Moves the image’s red component up from 0= no adjustment to 255 (100%) = maximum distance from original
position.
Modifier 2: Moves the image’s green component down and right from 0= no adjustment to 255 (100%) = maximum adjustment.
Modifier 3: Moves the image’s blue component down and left from 0 = no adjustment to 255 (100%) = maximum blue saturation.

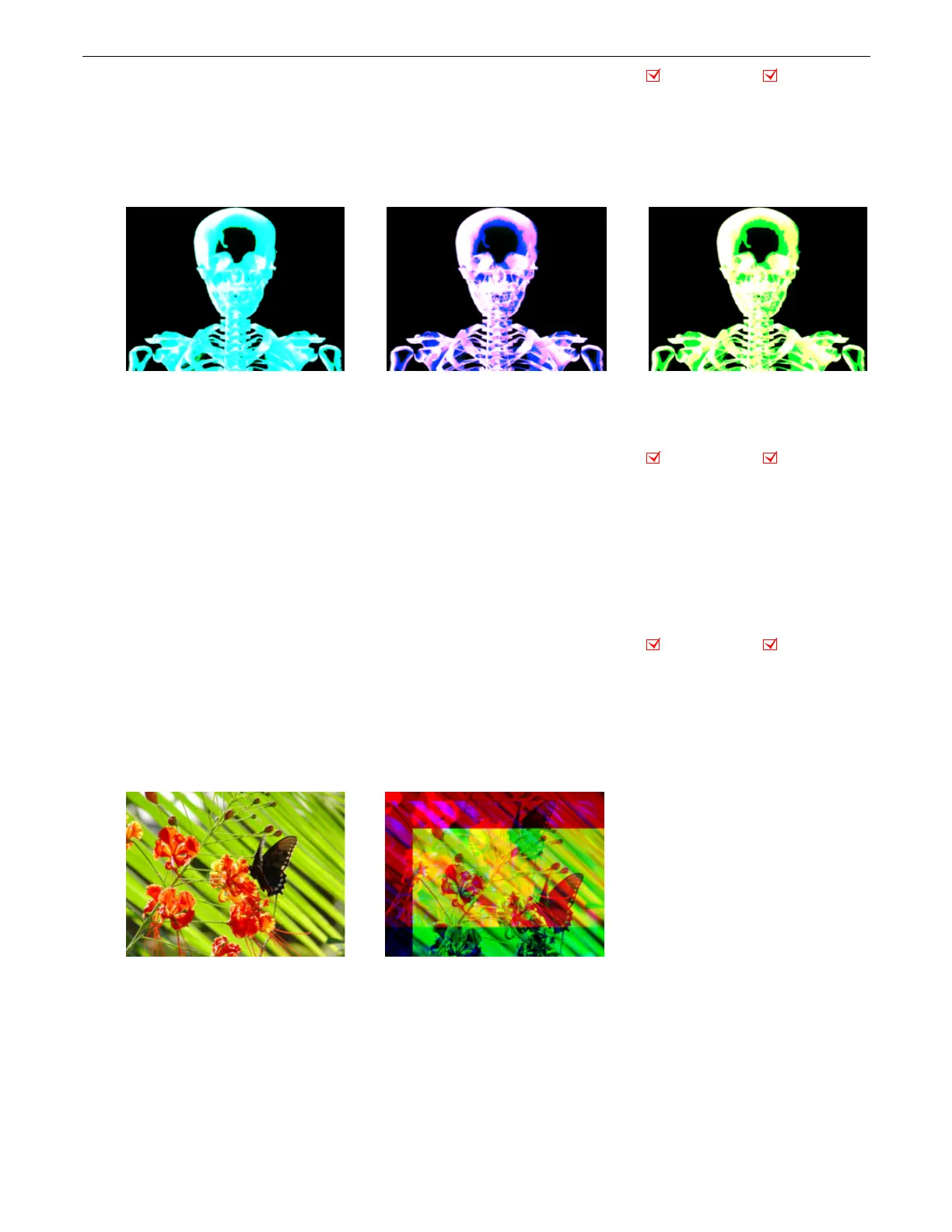

Object Effect Global Effect
Modifier 1 parameter DMX = 255
Modifier 2 parameter DMX = 0
Modifier 3 parameter DMX = 0
Modifier 1 parameter DMX = 0
Modifier 2 parameter DMX = 0
Modifier 3 parameter DMX = 255
Modifier 1 parameter DMX = 0
Modifier 2 parameter DMX = 255
Modifier 3 parameter DMX = 0
Object Effect Global Effect
Object Effect Global Effect
O
riginal Content Modifier 1 parameter DMX = 211
Modifier 2 parameter DMX = 255
Modifier 3 parameter DMX = 67
