5.2.29 Pixel Twist
Effect Mode parameter DMX value = 34
This effect introduces a twisted area to the image and allows to you size it and move it in the image.
Modifier 1: Controls the horizontal position of the twisted area’s centerpoint from 0=left edge to 255 (100%) = right edge of
output.
Modifier 2: Controls the vertical position of the twisted area’s centerpoint from 0=top edge to 255 (100%) = bottom edge of
output.
Modifier 3: Controls the direction and amount of twist. At the midpoint of the range, there is no change in the image. The twist
area and size moves counterclockwise from 128 (50%) = smallest area to 0 = largest twist area moving counterclockwise. The
twist area and size moves clockwise from 128 (50%) = smallest area to 255 (100%)= largest twist area moving clockwise.
5.2.30 Prism
Effect Mode parameter DMX value = 98
This effect imitates looking at the image through a prism that you define with the Modifier parameters.
Modifier 1: Sets the number of facets. A DMX value of 0 = no facets. The number of facets increase from 10 = three facets to 255
(100%) = maximum 16 facets.
Modifier 2: Sets the refraction index from 0 = minimum to 255 = maximum
Modifier 3: Rotates the prism. The default value is 128 (50%). Values below the midpoint rotate clockwise from 0 = fastest to 127
= slowest rotation. Values above the midpoint rotate counterclockwise from 129 = fastest to 255 = slowest rotation.

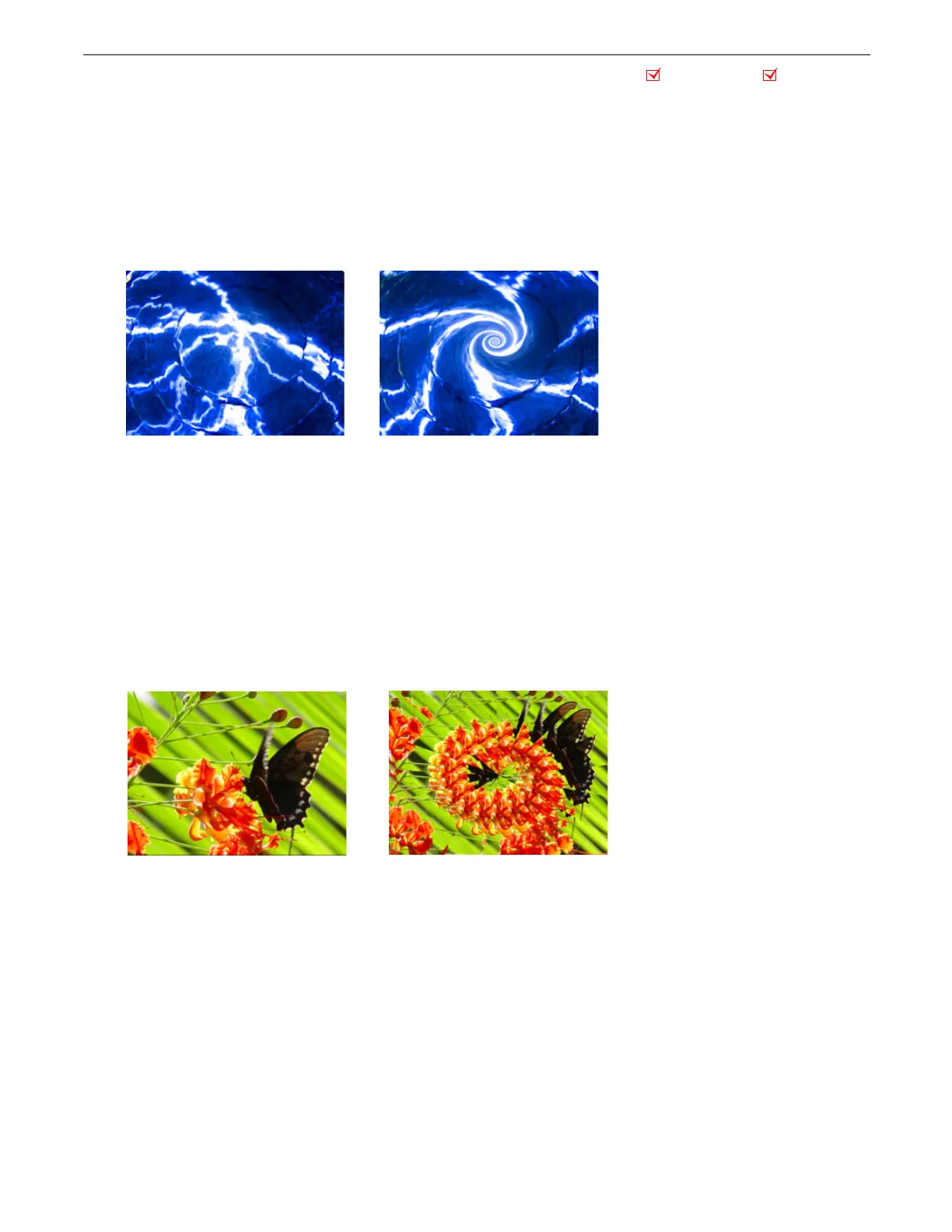

Object Effect Global Effect
Original Content Modifier 1 parameter DMX = 134
Modifier 2 parameter DMX = 106
Modifier 3 parameter DMX = 193
Modifier 1 parameter DMX = 255
Modifier 2 parameter DMX = 107
Modifier 3 parameter DMX = 155
O
riginal Content
