5.1.16 Edge Fade Color
Effect Mode parameter DMX value = 129
This effect applies color to a selected
Edge Fade parameter, (see Image Edge Fade on page 39).
Modifier 1: Increases red color component from 0 = no adjustment to 255 (100%) = maximum red saturation.
Modifier 2: Increases blue color component from 0 = no adjustment to 255 (100%) = maximum blue saturation.
Modifier 3: Increases green color component from 0 = no adjustment to 255 (100%) = maximum green saturation.
5.1.17 Glow
Effect Mode parameter DMX value = 73
Glow colorizes and creates a glow on the 3-D object separate from the media texture on it. You can apply this effect to any 3-D
object no matter which media file texture is applied to it. This parameter provides an option to view a 3-D object without
displaying the associated texture.
Modifier 1: Increases red color component from a DMX value of 0 = no adjustment to 255 (100%) = maximum red saturation.
Modifier 2: Increases blue color component from a DMX value of 0 = no adjustment to 255 (100%) = maximum blue saturation.
Modifier 3: Increases green color component from a DMX value of 0 = no adjustment to 255 (100%) = maximum green saturation.
5.1.18 Glow Color Cycle
Effect Mode parameter DMX value = 74
Glow colorizes and creates a glow on the 3-D object separate from the media texture on it. You can apply this effect to any 3-D
object no matter which media file texture is applied to it. This parameter provides an option to view a 3-D object without an
associated texture.
Modifier 1: Defines the red color component speed. A DMX value of 128 (50%) = default cycle speed. DMX Values above the
midpoint increase cycle speed in a forward direction to 255 (100%) = fastest change speed. DMX values below the midpoint
increase cycle speed in a backward direction to 0 = fastest change speed.
Modifier 2: Defines the green color component speed in the same way as Modifier 1.
Modifier 3: Defines the blue color component speed in the same way as Modifier 1.

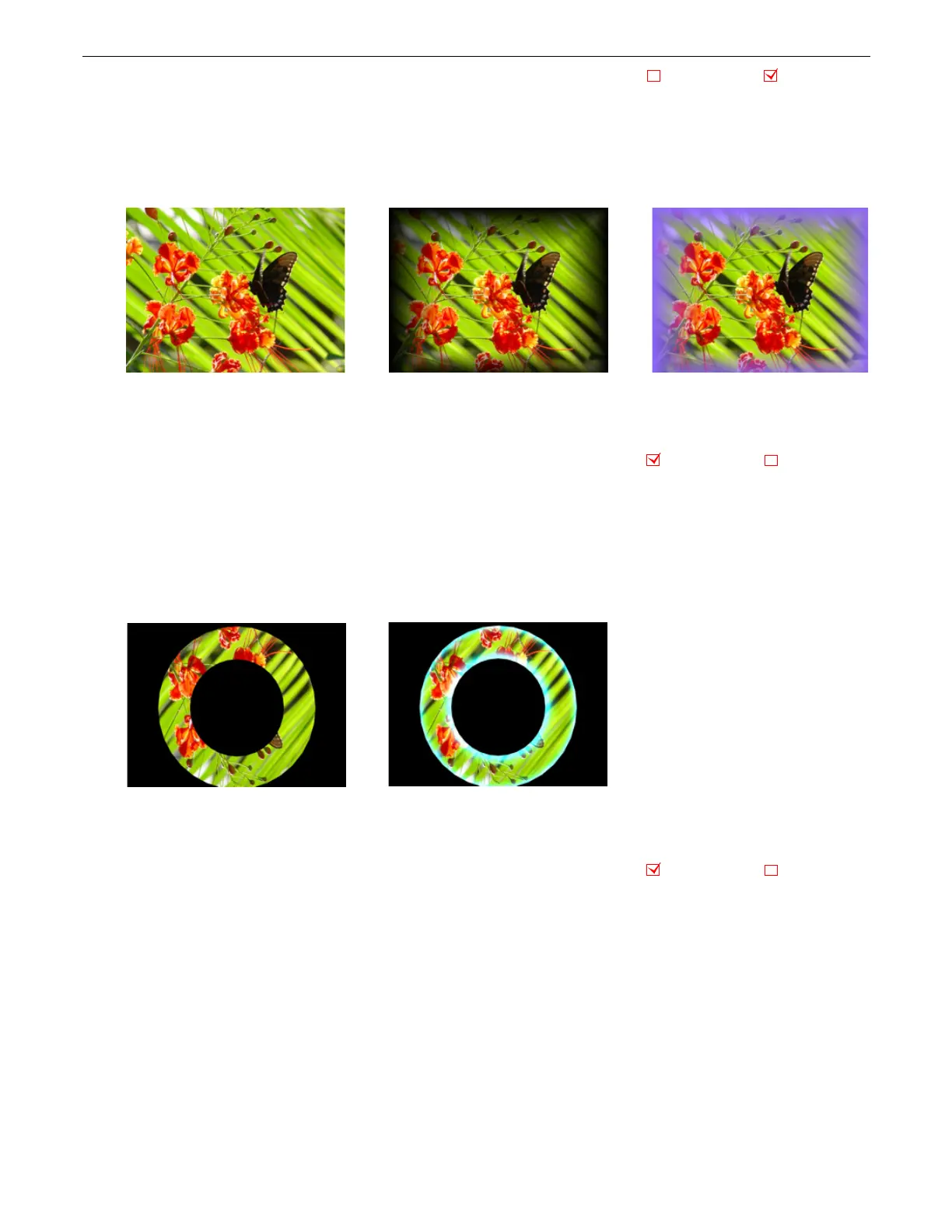

Object Effect Global Effect
Original Content
Modifier 1 parameter DMX = 143
Modifier 2 parameter DMX = 100
Modifier 3 parameter DMX = 25
Edge Fade effect applied
Object Effect Global Effect
Original Content
Modifier 1 parameter DMX = 0
Modifier 2 parameter DMX = 221
Modifier 3 parameter DMX = 168
Object Effect Global Effect
