BUILDING FLIGHT PLANS (FPL)
CREATING A FLIGHT PLAN
1. FPL Key - DEPRESS to display (Stored) FLIGHT PLAN LIST
Page (if required).
2. Line Select Key -
DEPRESS to position
cursor on blank line and
display the NEXT FPL
number. (Figure 3-7)
If several Flight Plans
are displayed, position
cursor anywhere on the
page then depress the
BACK Key to show
NEXT FPL number available.
NOTE: If all 56 Flight Plans are used, NO FPL AVAIL will appear in
the field. Any of the stored flight plans may be erased to allow addi-
tional entries. The procedure is described under Modifying A Flight
Plan.
3. ENTER Key - DE-
PRESS to display
FLIGHT PLAN Page.
(Figure 3-8) NOTE: The
XFILL prompt will only
be displayed if the air-
plane is configured for
dual systems.
4. Type the appropriate
departure airport or way-
point identifier in the cursor field.
NOTE: Identifier may contain from 1 to 6 characters in any combina-
tion of letters and numbers. If an entry error is made, press the
BACK Key to erase a character, then enter the correction.
5. ENTER Key - DEPRESS.
6. Waypoint Coordinates and Data - VERIFY. If a specific runway
is desired, depress the appropriate Line Select Key to place the
cursor over the desired runway.
KABQ KMSY 1
KDAL KHPN 3
KDAL KSFO 2
KHPN KORD 4
NEXT FPL 5
FLIGHT PLAN LIST 1/1
>
>

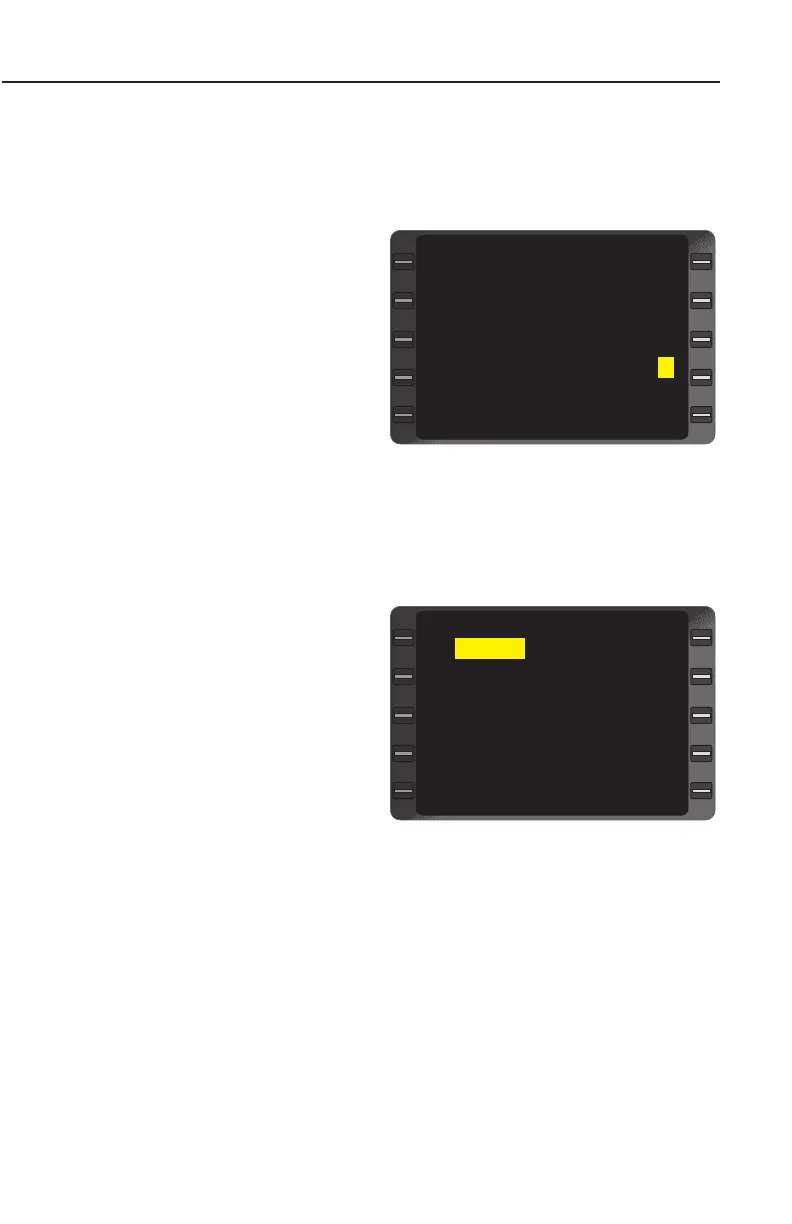

Figure 3-7
******
DEPART XFILL
ARRIVE SELECT
APPROACH ERASE
FLIGHT PLAN 5 1/1
>
<
<
<
<
<
>
Figure 3-8
