GNS-XLS Flight Management System AFIS Operation
5. BACK or PRV Key - DEPRESS to review Planned data for pre-
vious legs of the AFIS Flight Plan.
6. Line Select Key - DEPRESS to remove cursor from page and
return to Current Leg Progress.
NOTE: If the current leg displayed does not agree with a planned
AFIS leg, the PLANfields display dashes. (Figure 7-43) If AFIS
Flight Plan is updated via the data link, new values will appear. Refer
to Updating AFIS Flight Plan for update procedure.
REVIEWING AFIS FLIGHT
PLAN DATA
1. AFIS Key - DEPRESS to
display AFIS MENU Page.
2. Line Select Key - Place cur-
sor over menu Option 1,
AFIS FLT PLAN. (Figure 7-
44)
3. ENTER Key - DEPRESS.
AFIS FLIGHT PLAN PAGE 1
4. REVIEW fuel and time data.
(Figure 7-45) If the Flight
Plan has been updated, the
FROM identifier (origin air-
port) will be changed to
UPDATE. (Figure 7-46)
Fuel and time data change as a
result of the updated informa-
tion. The TOTALS reflect the
changes in the TO and
RESERVE fields.

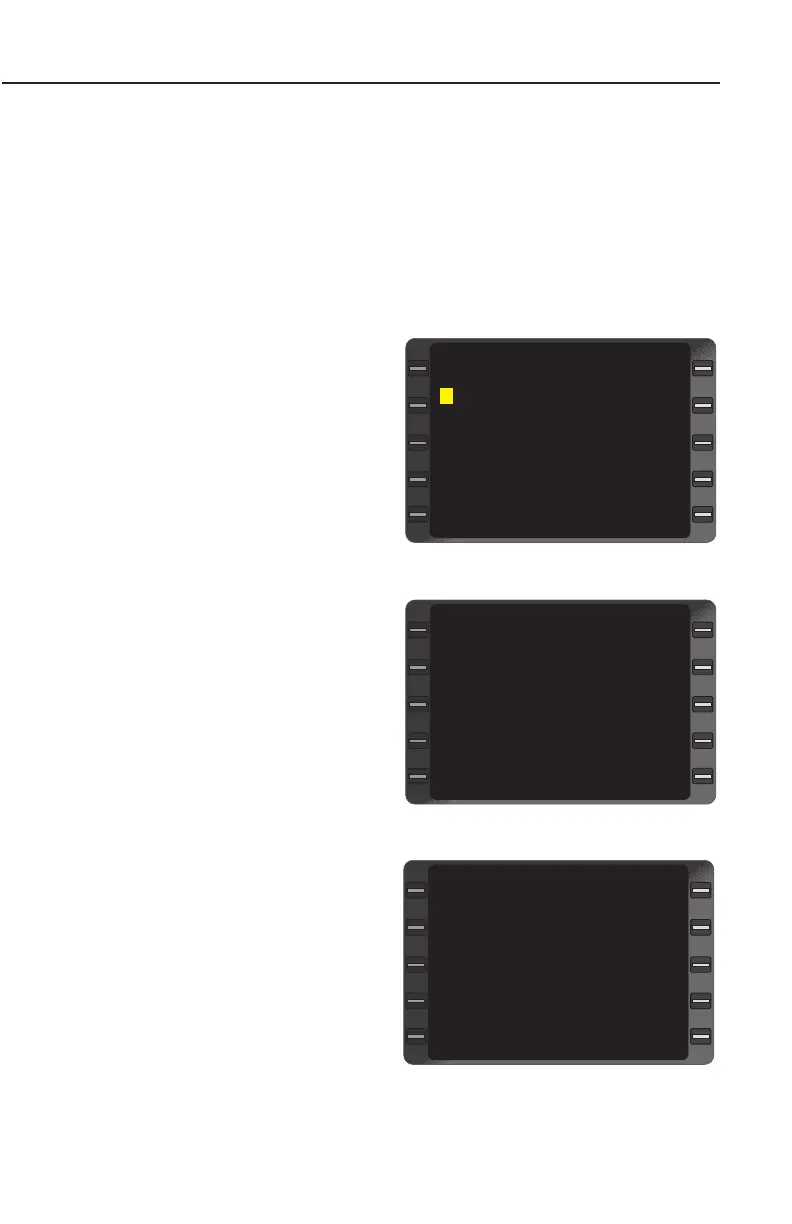

AFIS MENU
<
<
<
<
1 AFIS FLT PLAN
2 SIGMETS
3 TERMINAL WX
4 WINDS ALOFT
5 RECALL AFIS FPL
6 SEND AFIS MSG
7 DISPL AFIS MSG
8 OPERATING MODES
Figure 7-44
FUEL TIME
FR KSNA
TO KSTL 10859 2+51
HOLDING ----- -----
TO ---- ----- -----
RESERVE 2500 0+45
TOTALS 13359 3+36
AFIS FLT PLAN 1/4
Figure 7-45
FUEL TIME
FR UPDATE
TO KSTL 9285 1+58
HOLDING ----- -----
TO ---- ----- -----
RESERVE 2700 0+49
TOTALS 11985 2+47
AFIS FLT PLAN 1/4
Figure 7-46
