System Operation
3-35
GNS-XLS Flight Management System
Rev. 3
Sep/96
1. Line Select Key (adjacent to RUNWAY field) - DEPRESS to
change the field to dashes.
2. Line Select Key (adjacent to TYPE and TRANSITION fields) -
DEPRESS to change the field to dashes.
Using the same Line Select Keys, obtain a complete list of RUN-
WAYS, TYPES, and TRANSITIONS. Use the appropriate Line
Select Keys to select the desired data from each list.
3. ENTER Key - DEPRESS to enter the selected data from each list.
When all the fields have been filled.
4. ENTER Key - DEPRESS to select the new approach data, insert
it into the flight plan, and return to the Flight Plan Page.
NOTE: Look carefully at the flight plan to determine if any waypoints
are out of sequence and delete waypoints as necessary.
When an APPROACH is modified by adding or deleting waypoints
the sequence of waypoints is no longer identified as an APPROACH
and the system will not enter the Approach Mode. An APPROACH
CANCELED message will be displayed anytime a waypoint is delet-
ed, added to an approach procedure on the Active Flight Plan, or
when a Direct To the MAP is initiated..
ERASING AN APPROACH FROM A STORED FPL OR THE
ACTIVE FPL
NOTE: Erasing an Approach also erases the current destination air-
port identifier. This procedure should be used when an approach at
a different airport is desired.
1. Line Select Key - DE-
PRESS to position cur-
sor over APPROACH
field on the FLIGHT
PLAN Page.
2. ENTER Key - DEPRESS
to display APPROACH
Page.
3. Line Select Key - DE-
PRESS to position cursor
over ERASE? (Figure 3-59)
4. ENTER Key - DEPRESS to erase APPROACH and return to the
FLIGHT PLAN Page.
RUNWAY RW35
TYPE NDB
TRANSITION COBUS
WPTS OF APPROACH:
IAF WAIVE MAP RW17
CANB ++++++
PT CANB HP CANB
CANB
SELECT? ERASE
APCH KEWK 1/1
>
>
<

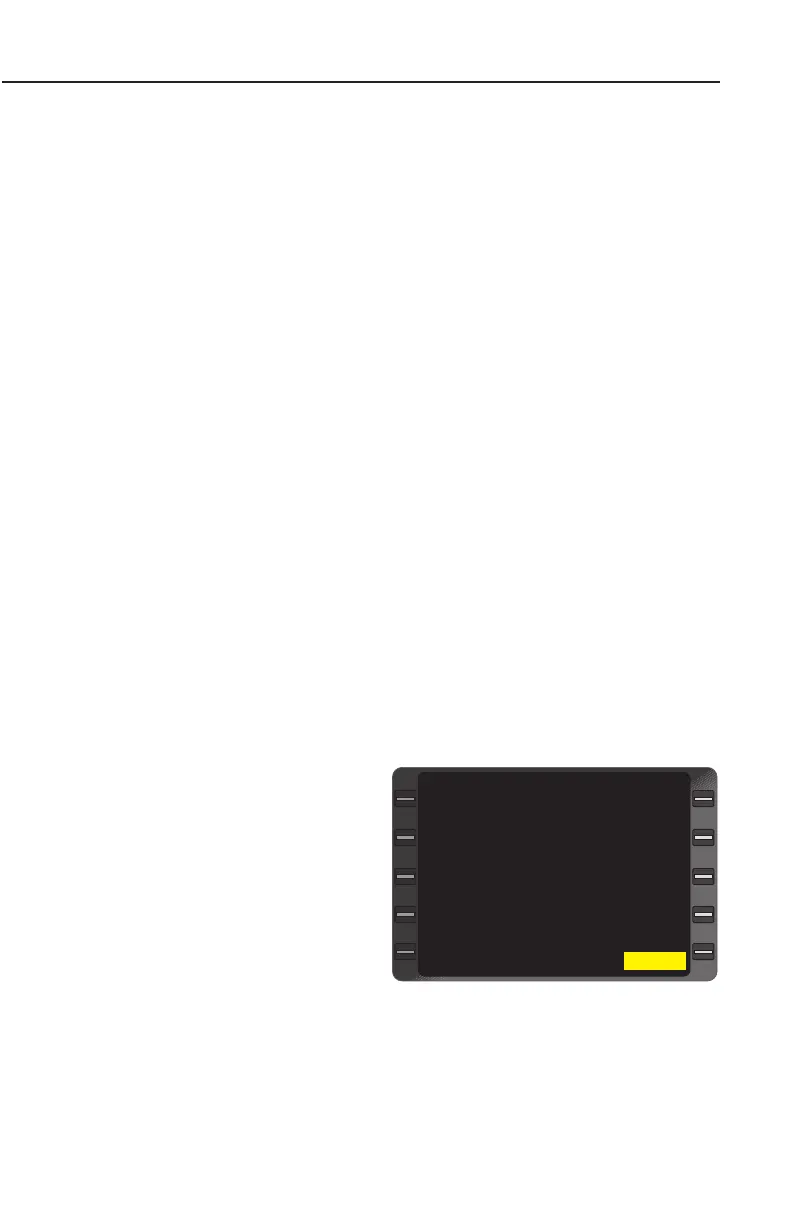

Figure 3-59
