Honeywell GNS-XLS - VNAV 2;3 (Page 2 of 3) - FLIGHT PLAN Waypoint

Page Display Definitions
2-37
GNS-XLS Flight Management System
Rev. 3
Sep/96
VNAV 2/3 (Page 2 of 3) - FLIGHT PLAN WayPoint
Pressing the VNAV Key will display the second VNAV Page and the
following can be observed.
VNAV MODE: Mode required to fly to the vertical TO waypoint and
Baro Altitude in feet. Can display one of the following:
• INVALID: Same as on VNAV 1/1.
• INACTIVE: Same as on VNAV 1/1.
• CLIMB: Same as on VNAV 1/1.
• CRUISE: Same as on VNAV 1/1.
• PATH DESCENT: Same as on VNAV 1/1.
• DESCENT: Same as on VNAV 1/1.
• LEVEL: Same as on VNAV 1/1.
WAYPOINTS:
Lateral and Vertical way-
points listed in order of
occurrence with respect to
the vertical profile, with con-
straint altitude and applicable
waypoint offset, where
FL=Flight Level, A= At or
Above, B=At or Below,
G=Glide Path, and a blank
space=At constraint. (Figure
2-43)
One of the following system
generated VNAV profile
points may also appear:
• #TOC: Indicates the Top of
Climb target altitude.
• #TOD: Indicates the Top
of Descent target altitude.
(Figure 2-44)

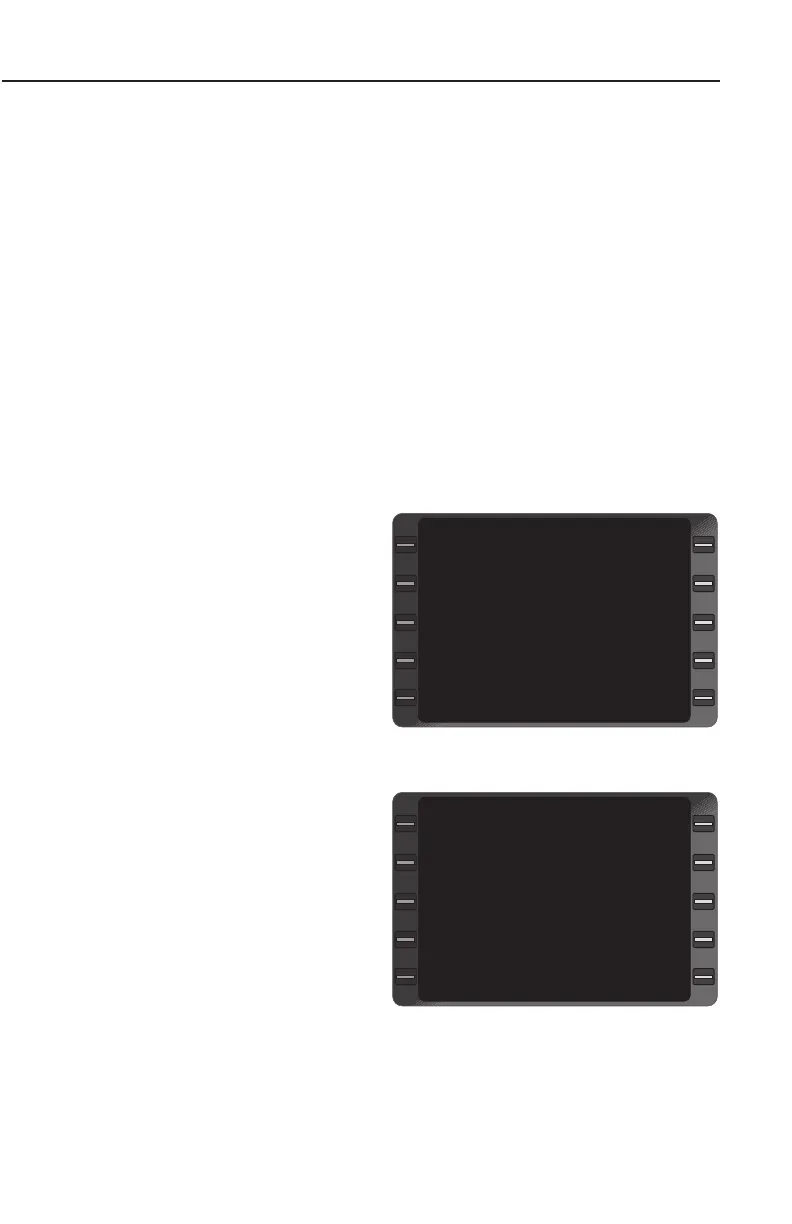

PATH DESCENT FL338
ELD -5 FL250G
#PRESL FL250
MEI -----
DELBE -----
VUZ FL180
VXV -----
BOSEY -----
ERASE
VNAV 2/3
<
<
<
<
<
<
<
<
<
<
Figure 2-43
PATH DESCENT FL338
#T0D FL250
BDR -----
ALIXX -----
ISLET 2000G
RW34 435G
+++++++ -----
CMK 2000A
ERASE
VNAV 3/3
<
<
<
<
<
<
<
<
<
<
Figure 2-44
