Honeywell GNS-XLS User Manual

System Operation
3-68
GNS-XLS Flight Management System
Rev. 3
Sep/96
EXITING HOLDING PATTERN BY GOING DIRECT TO HOLDING
FIX
1. d Key - DEPRESS to
display Direct To Page
with cursor over current
HP Waypoint. (Figure 3-
115)
2. ENTER Key - DEPRESS
to display HOLDING
PATTERN Page with
cursor over CANCEL?.
(Figure 3-116)
3. ENTER Key - DEPRESS
to go Direct To current
TO Waypoint (Holding
Fix) and cancel Holding
Pattern.
EXITING HOLDING PAT-
TERN BY PERFORMING A
LEG CHANGE
1. NAV Key - DEPRESS to
display the NAVIGA-
TION Page 1.
2. Line Select Key -
DEPRESS to position
the cursor over FROM
field (HOLD RIGHT/
LEFT). (Figure 3-117)
3. FR Waypoint - INSERT
desired waypoint.
AT FNT
EXIT HOLD 00:00.4
INBOUND CRS 299
MAX HOLDING TAS 305
TURN DIR RIGHT
LEG TIME 1.0
LEG DIS (3.5)
EXIT MODE MANUAL
CANCEL ?
HOLDING PATTERN 1/1
>
>
>
>

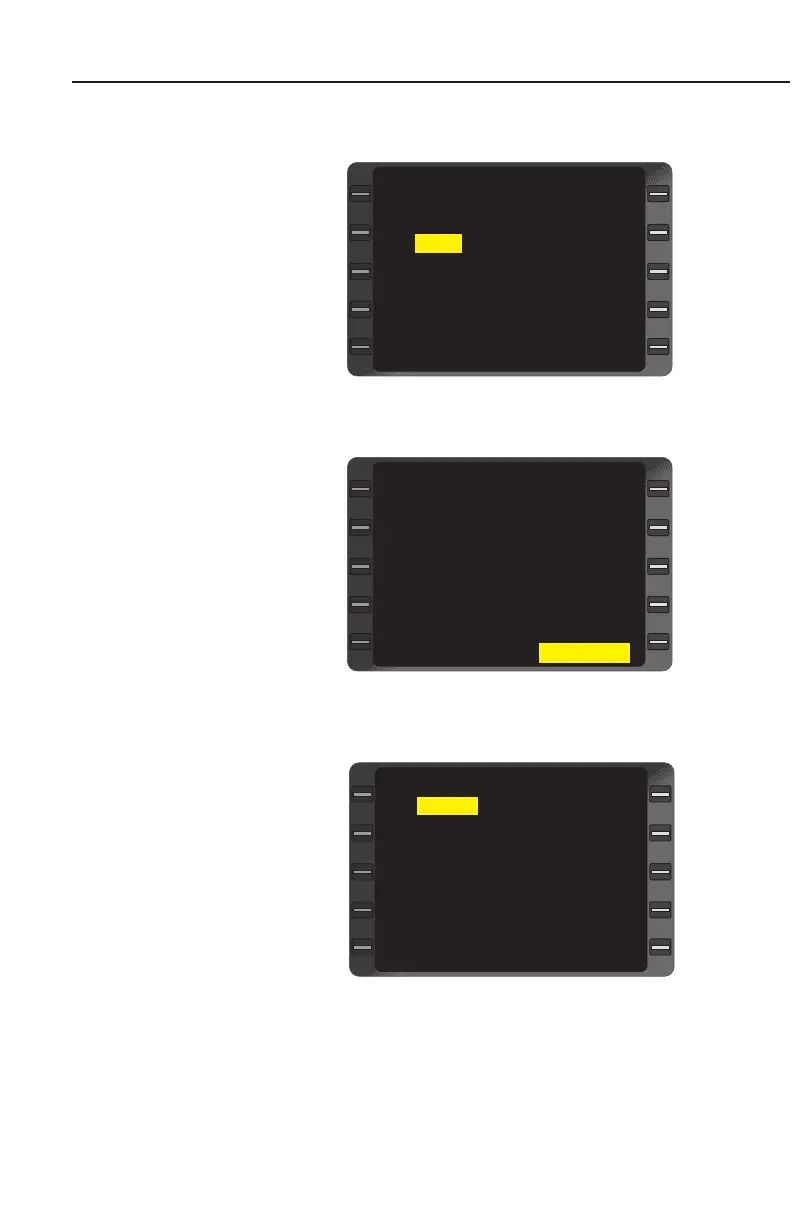

Figure 3-116
FR ------ ------
AT FNT 15:22
EXIT HOLD 00:02
DIS 7.3
ETE 00:02.4
INBOUND CRS 299
GS 175
WIND 375/ 13
NAVIGATION 1/4
<
>
>
<
Figure 3-117
KABE ONL
PSB CYS
HP FNT DBL
HASTE DVC
PMM PGS
KUBBS HEC
OBK KVNY
DBQ *****
FOD
DIRECT 1/2
>
>
>
>
<
<
<
<
<
>
Figure 3-115
