Honeywell GNS-XLS User Manual

Page Display Definitions
2-36
GNS-XLS Flight Management System
Rev. 3
Sep/96
Last Departure altitude
constraint waypoint
Groundspeed
Vertical
Speed
#TOC
Cruise Altitude =FL250
#TOC Range
1nm
Top of Climb appears as a Vertical Waypoint on the
VNAV FPL Page when the aircraft is within 1 NM of
the last departure waypoint that has an altitude
constraint programmed
NOTE:
CLIMB 15276
TO #TOC FL250
RANGE (NM) 33.5
ETE 00:13.2
ACTUAL FPM UP 595
CLIMB GRAD 233 /NM
DATA
VNAV 1/3
<
<
<
<
<
Vert Dev
Required Vert Spd
Actual Vert Spd
Programmed Descent Path
Direct
FPA
Programmed FPA
Est Crossing Alt
Descent Reference
Wpt (at altitude constraint)
XYZ
10000G
PATH DESCENT 12030
TO XYZ 10000G
EST CROSSING 10500
REQUIRED FPM DN 1000
ACTUAL FPM DN 950
VERT DEV HIGH 446
DATA
VNAV 1/3
<
<
<
<
<
CLIMB
DESCENT

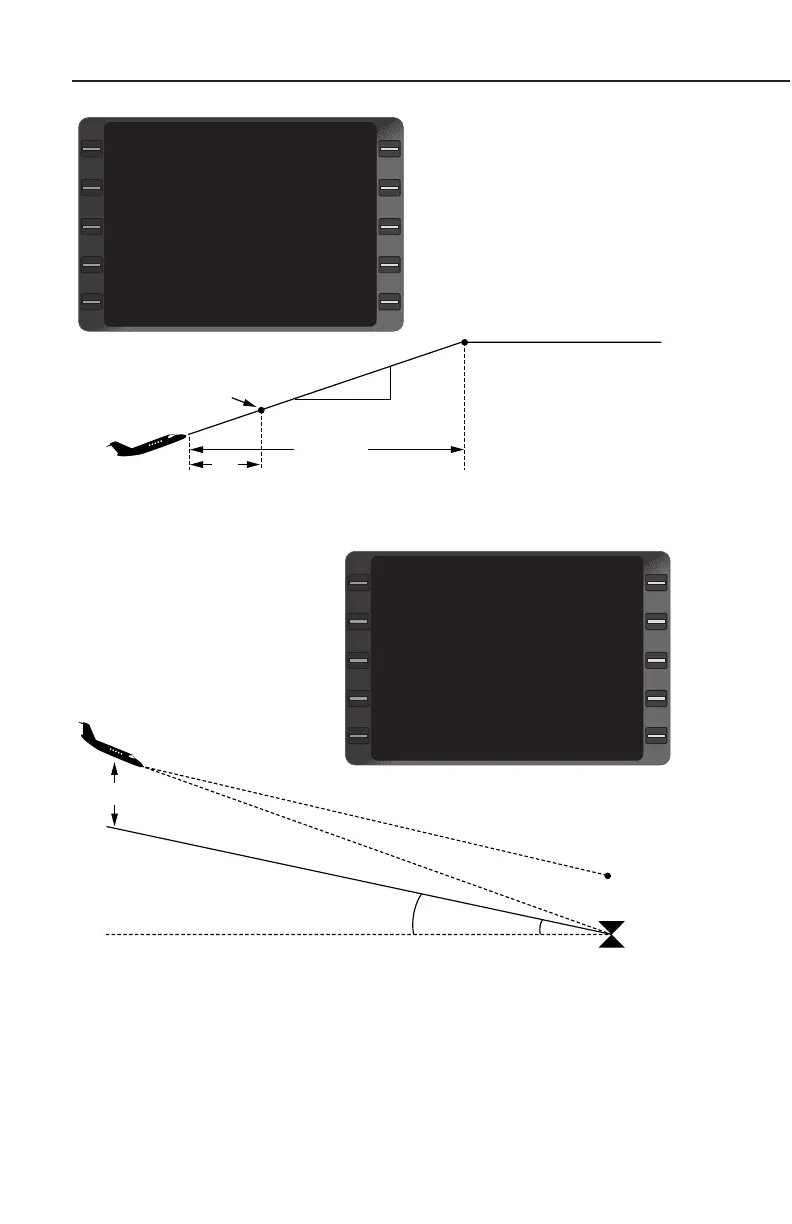

Definition of Climb and Decent on VNAV 1/1
Figure 2-42
