To Next Page

To Previous Page

Page Display Definitions

2-35

GNS-XLS Flight Management System

Rev. 3

Sep/96

DATA:

A prompt to access the VNAV DATA Page, by placing the cursor over the

DATAfield and pressing the ENTERKey. (Figure 2-40)

Figures 2-41 and 2-42 further illustrate the meanings of the fields on

VNAV Page 1.

CLIMB 15276

TO #TOC FL250

RANGE (NM) 33.4

ETE 00:13.2

ACTUAL FPM UP 595

CLIMB GRAD 233 /NM

DATA

VNAV 1/3

CRUISE FL230

TO #TOD FL230

RANGE (NM) 150.5

ETE 01:05.2

@ #TOD FPM DN 595

ACTUAL FPM UP 0

VERT DEV -----

DATA

VNAV 1/3

CLIMB 1862

TO HEMET -5 15000A

EST CROSSING 15329

REQUIRED FPM UP 575

ACTUAL FPM UP 575

CLIMB GRAD 233 /NM

DATA

VNAV 1/3

PATH DESCENT 12030

TO XYZ 10000G

EST CROSSING 10500

REQUIRED FPM DN 1000

ACTUAL FPM DN 950

VERT DEV HIGH 446

DATA

VNAV 1/3

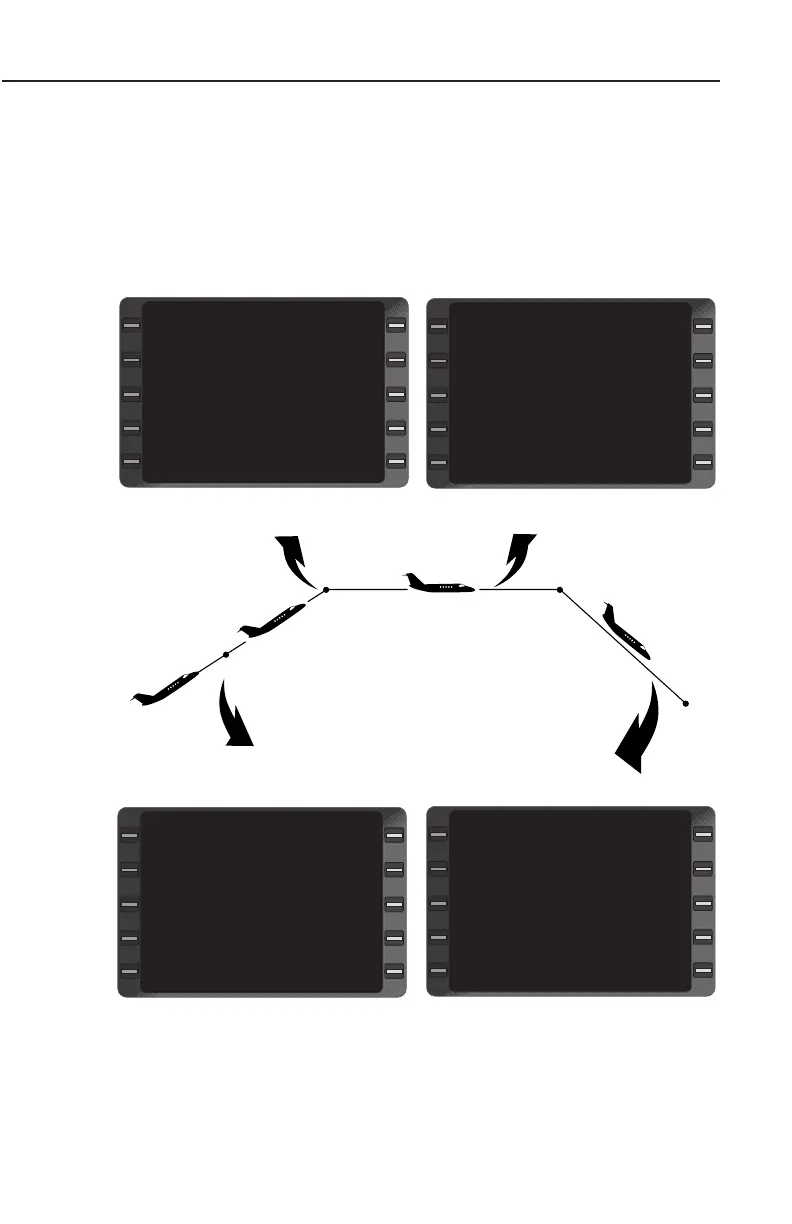

Progression of Vertical Waypoints from Climb to

Path Decent on VNAV 1/1

Figure 2-41

XYZ

10000G

#TOD

#TOC

HEMET -5

15000A
