System Operation
3-19
GNS-XLS Flight Management System
Rev. 3
Sep/96
If there are no SIDs associat-
ed with the Departure Airport,
the message “NO SIDS
AVAILABLE” appears and
the ident field flashes.
Depress the FPL Key to
return to the Active Flight
Plan.
5. Line Select Key - DE-
PRESS to position the
cursor over the desired
SID, if required. (Figure
3-23)
6. ENTER Key - DEPRESS
to select SID.
NOTE: Cursor moves to the
first TRANSITION identifier
on the list. The TRANSI-
TION field is highlighted in
yellow.
7. Line Select Key -
DEPRESS to position
cursor over the desired
TRANSITION, if required.
(Figure 3-24)
8. ENTER Key - DEPRESS
to select TRANSITION.
NOTE: If the SID and
TRANSITION are runway
dependent, and a runway
has not prefilled, the cursor
moves to the first runway on
the RUNWAY identifier list
and RUNWAY field is high-
lighted in yellow. See Figure
3-25. If runway is not
required, proceed to Step 11.
<
RUNWAY ------
SID ------
TRANSITION ------
BANGR1
BLUTI1
ELMAA5?
SUMMA5

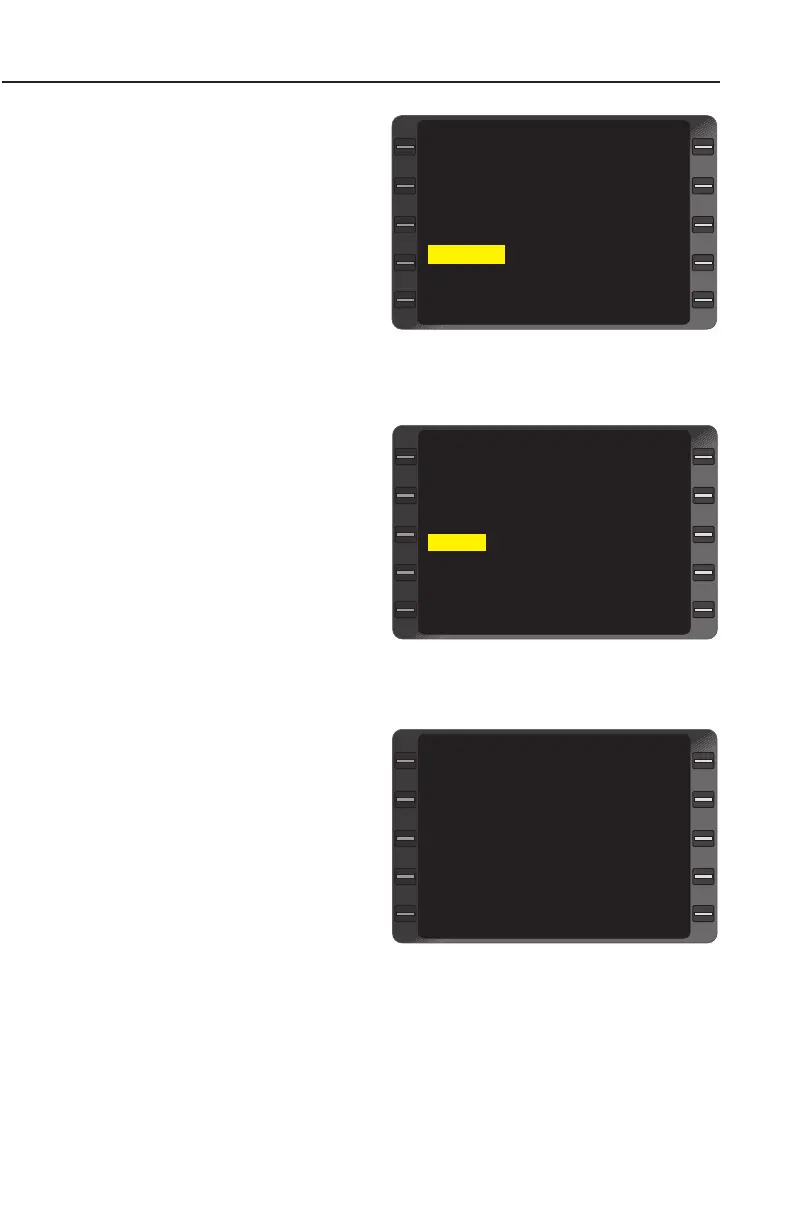

DEPARTURE KSEA 1/1
>
>
Figure 3-23
RUNWAY -----
SID ELMAA3
TRANSITION HQM
DEPARTURE KSEA 1/1
>
>
Figure 3-25
<
RUNWAY ------
SID ELMAA5
TRANSITION ------
CVO
HQM ?
UBG
DEPARTURE KSEA 1/1
>
>
<
Figure 3-24
