System Operation
3-33
GNS-XLS Flight Management System
Rev. 3
Sep/96
7. Enter Key - DEPRESS
to select Approach
TYPE. (Figure 3-55)
NOTE: If there is only one
type of approach available
the system automatically
loads the approach TYPE
and the cursor moves over
the WPT in the transition list.
Go to Step 8.
NOTE: If the runway select-
ed on the Approach Page
differs from the runway dic-
tated by the STAR, “SEL
RWY FROM STAR PG” is
displayed at the bottom of
the screen.
8. Line Select Key -
DEPRESS to position
cursor over the desired
TRANSITION if required.
(Figure 3-56) If there is
only one transition for
the desired approach the
system automatically
loads the transition and
the WPTs of the approach are displayed. Go to step 10.
9. ENTER Key - DEPRESS to select TRANSITION.
The system will identify the following waypoints of an approach:
IAF - Indicates the initial approach fix.
ARC - DME Arc end point.
PT - A Procedure Turn will commence at that waypoint.
HP - A Holding Pattern is programmed at that waypoint.
FCF - Final Approach Course Alignment Fix
FAF - The Final Approach Fix.
MAP - The Missed Approach Point.
RUNWAY RW35
TYPE NDB
TRANSITION ------
COBUS ?
PNE
APPROACH KEWK 1/1
>
>
<

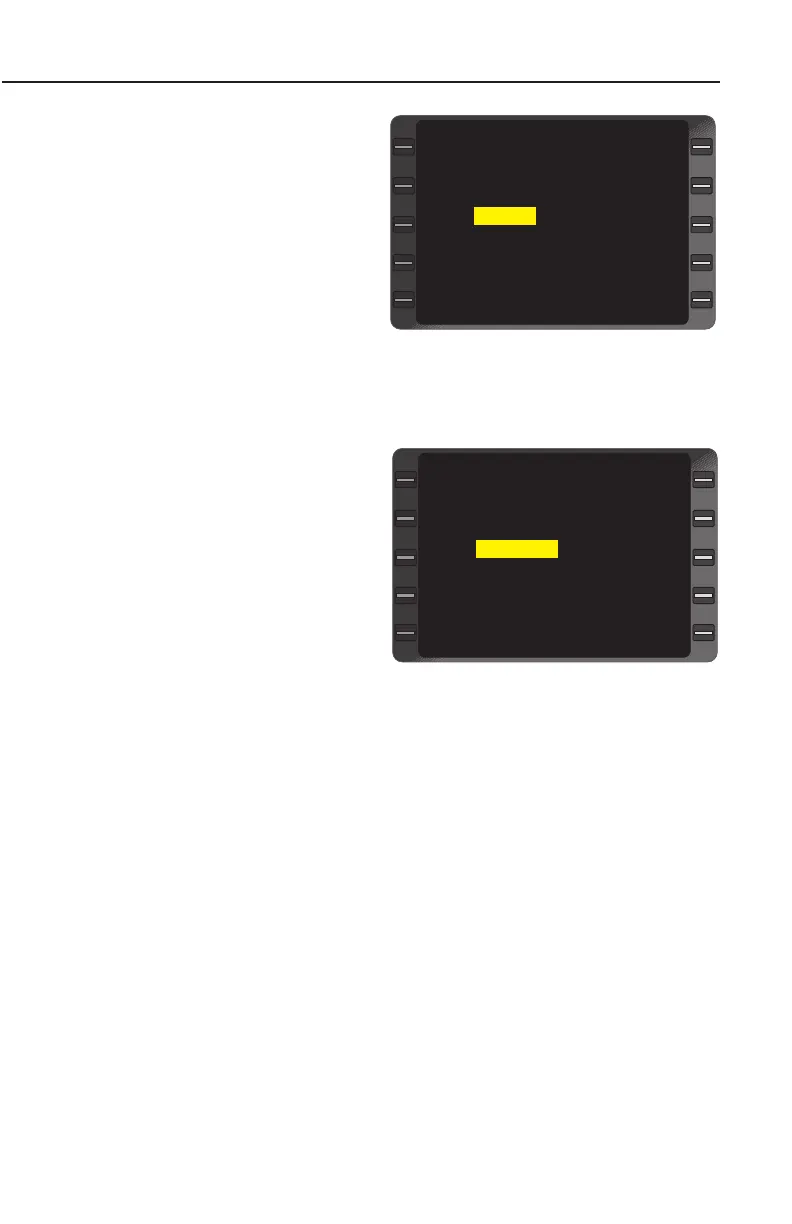

Figure 3-56
RUNWAY RW35
TYPE ------
TRANSITION ------
NDB ?
RNAV
APPROACH KEWK 1/1
>
>
<
Figure 3-55
