System Operation
3-48
GNS-XLS Flight Management System
Rev. 6
Jul/98
Use one of the following options to sequence to the missed approach
waypoint.
OPTION 1, Direct To the Missed Approach Procedure waypoint
1. d Key - DEPRESS. The DIRECT Page will be displayed.
2. Line Select Key - DEPRESS to position the cursor over the
Missed Approach Procedure waypoint, if required.
3. ENTER Key - DEPRESS to sequence to the Missed Approach
Procedure waypoint.
NOTE: If the direction the airplane will turn is in question and the turn
direction may not be in accordance with the missed approach proce-
dure, manually turn the airplane toward the missed approach fix then
perform the
d
to procedure.
OPTION 2, Heading to intercept a course to the Missed
Approach Procedure waypoint
1. HDG Key - DEPRESS.
The HEADING VECTOR
Page appears with the
cursor over the HEAD-
ING field. Type in the
appropriate heading
using a preceding R or L
to establish the turn
direction (i.e. L150).

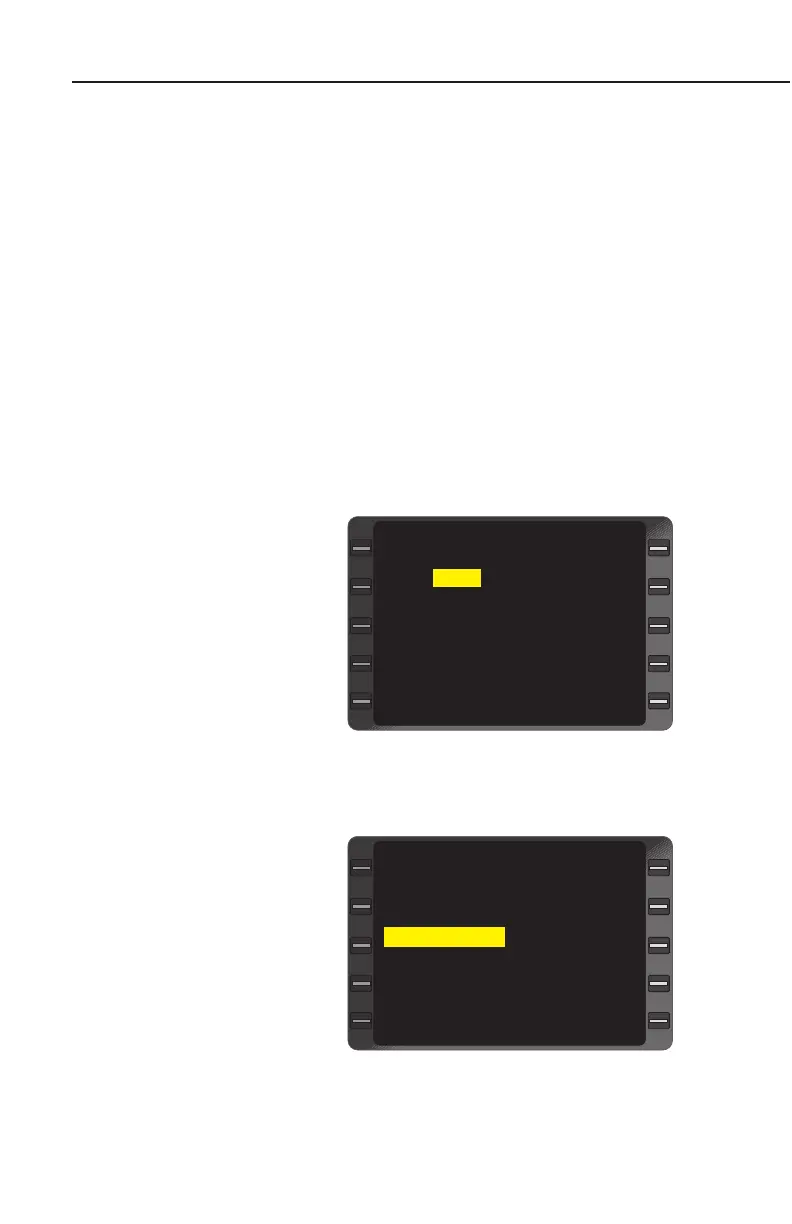

(Figure 3-83)
2. ENTER Key - DEPRESS.
The cursor moves to the
Heading Mode field and HDG SELECT? is in the cursor. (Figure
3-84)
NOTE: Prior to step 3 the
enter key may be pressed
with the cursor over HDG
select field so that the air-
plane can begin the intercept
process. Repeat the proce-
dure from step1 to complete
the HDG intercept procedure.
3. BACK Key - DEPRESS
until INTERCEPT? is dis-
played.
HDG L270
HDG SELECT?
MAP
TO MA11RC DTK 125
HEADING VECTOR 1/1
>
<
<
<
Figure 3-84
HDG L270
CANCEL
MAP
TO MA11RC DTK 125
HEADING VECTOR 1/1
>
<
<
<
Figure 3-83
To Next Page
