CONFIGURING MAXPRO NVR
Configuring the Cameras
104 MAXPRO NVR 3.1 Operator’s Guide
4
Note: Vicon protocol is not supported in this release.
• Select the COM Port name. Available COM Port names options are COM 1 and
NONE
Note: For Hybrid PE, COM Port names are COM1, COM2, COM3, COM4 and NONE.
Select COM 4 for analog PTZ control.
• Select the required Baud Rate. Available Baud Rates options are 110, 300,600,
1200, 2400, 4800, 9600, 14400, 19200, 38400, 56000, 57600, 115200, 128000,
256000.
• Select the Stop Bits. Available stop bits options are 1 and 2.
• Select the Parity. Available Parity options are ODD and EVEN.
• Select the Data Bits. Available data bits options are 7 and 8.
4. Click Save.
Configuring the Input and Output for an Analog Camera
The input and output hardware configuration for an analog camera in MAXPRO NVR Hybrid is
configured by default and when you add an analog camera, then by default the camera is
mapped to their respective input and output ports. The first input/output port is mapped to the
first camera, similarly the second camera is mapped to the second input/output port of the box
and so on. The input output combinations cannot be mapped to any other analog or IP
camera other than the default configuration.
The below figures depicts the typical input and output ports ( Highlighted in Red) for MAXPRO
NVR Hybrid XE, SE and PE figure 4-29 Box. The SENSOR is the input port and CONTROL is
the output port for both Hybrid XE figure 4-27 and SE Box figure 4-28. The detailed input and
output ports for NVR Hybrid PE box is shown in figure 4-30.

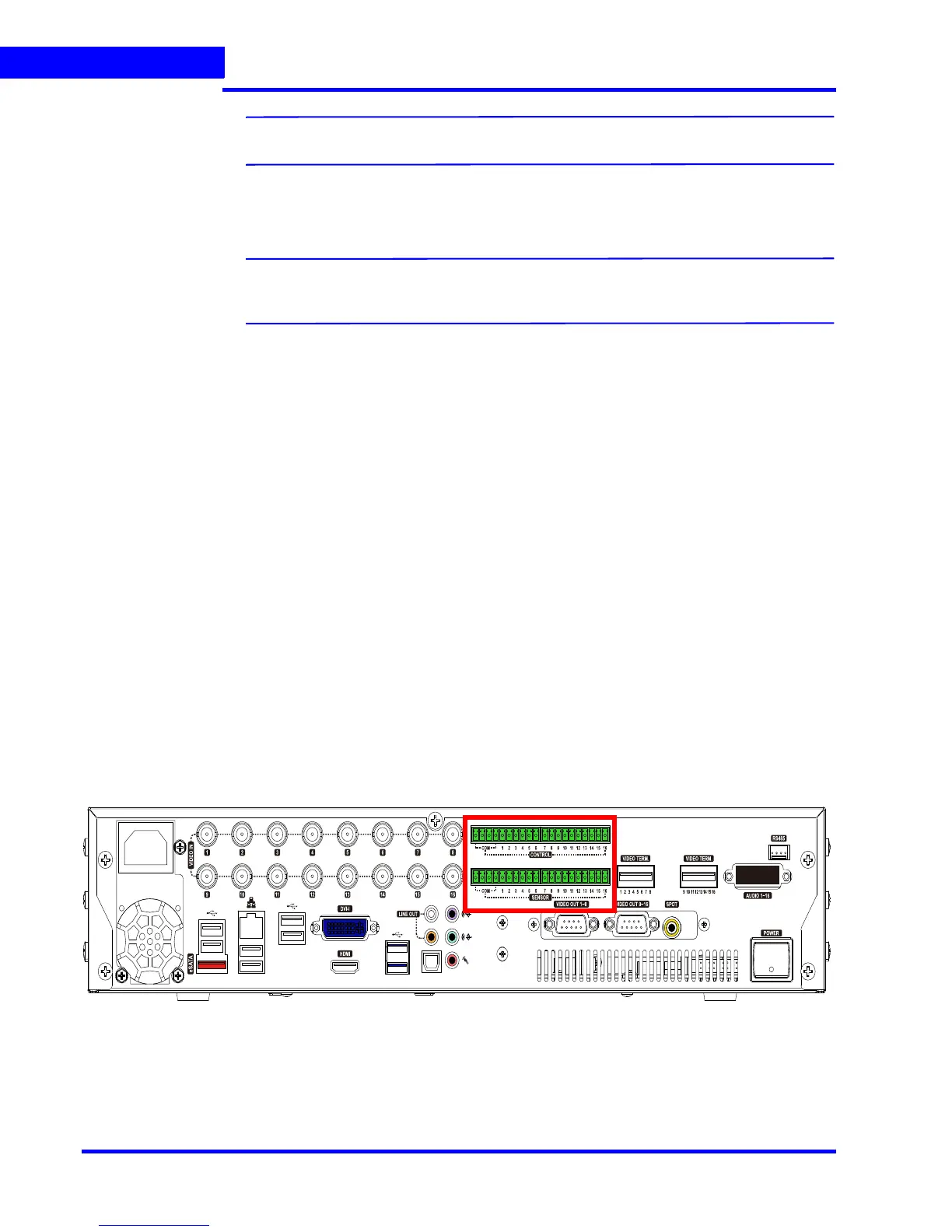

Figure 4-27 Input and Output Ports For MAXPRO NVR Hybrid XE
