Honeywell MAXPRO - Input and Output Ports for MAXPRO NVR Hybrid PE; Spot Monitoring

CONFIGURING MAXPRO NVR
Configuring the Cameras
106 MAXPRO NVR 3.1 Operator’s Guide
4

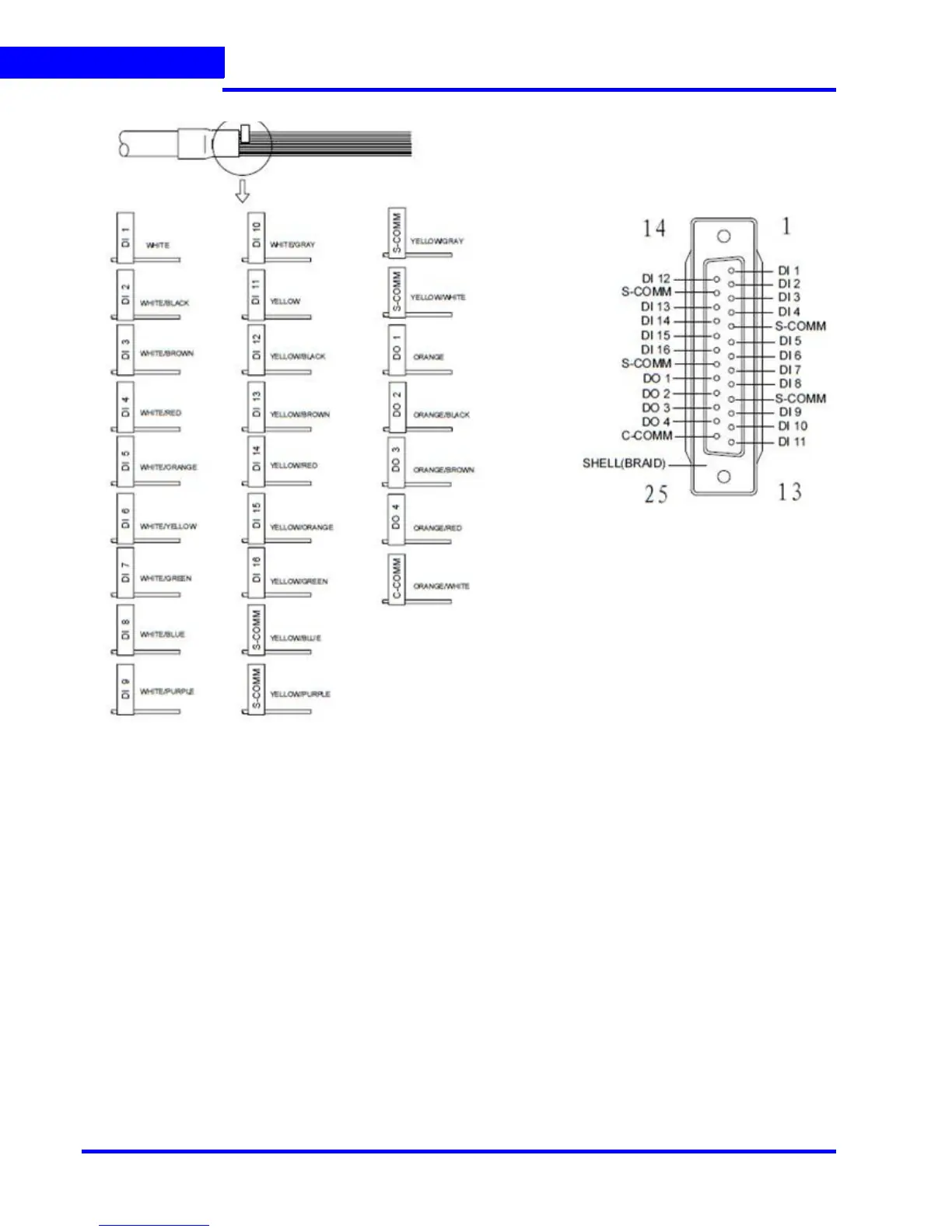

Figure 4-30 Input and Output Ports For MAXPRO NVR Hybrid PE
Spot Monitoring
The Spot Monitoring feature allows you to view the live video of analog cameras from the box.
You need to connect a physical monitor to the RCA port on Hybrid boxes to view the live
video.
